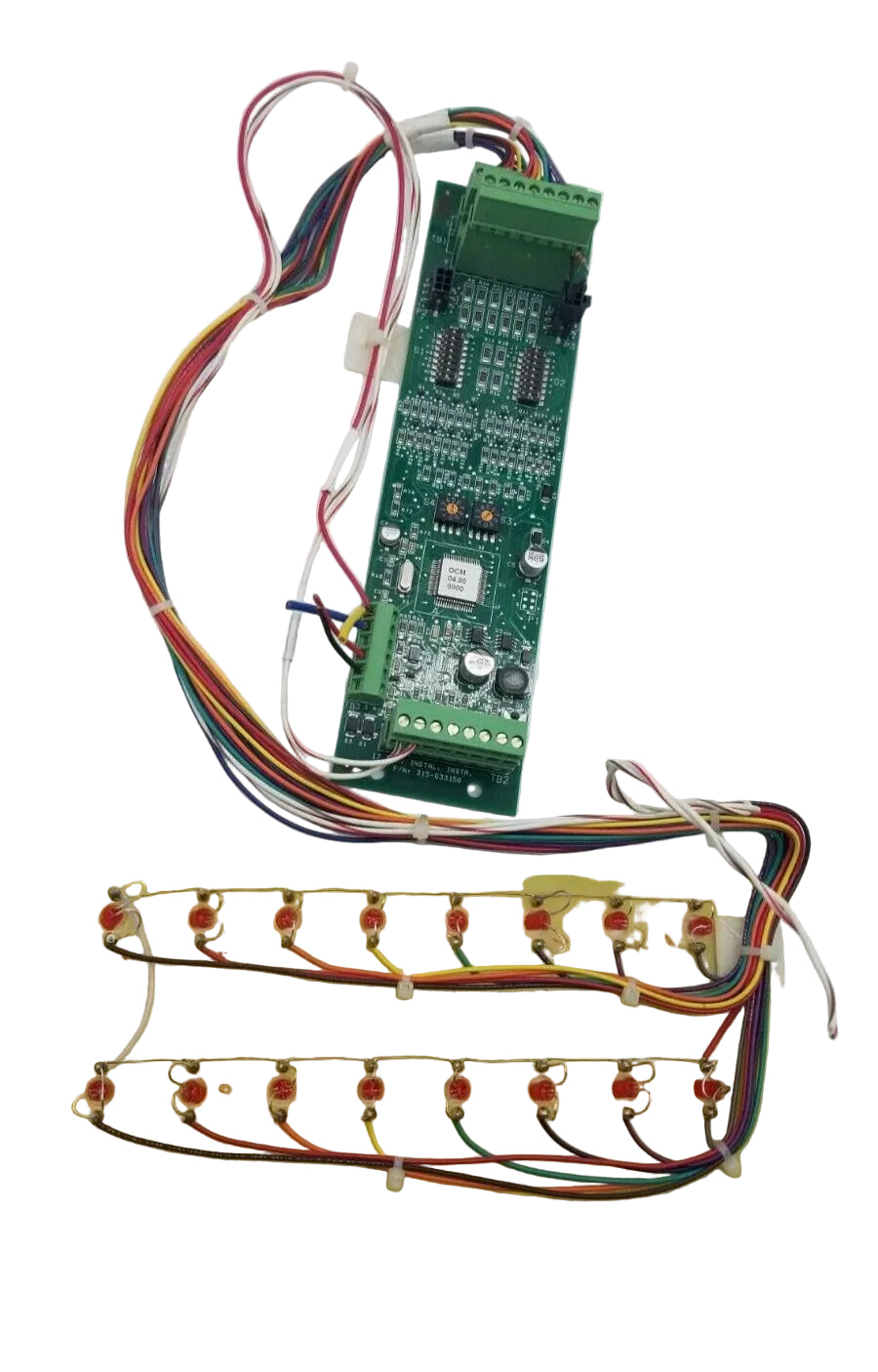

Siemens OCM-16 16-Output Fire Alarm Control Module
- Regular price
- $187.00
- Sale price
- $187.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OCM-16
Description

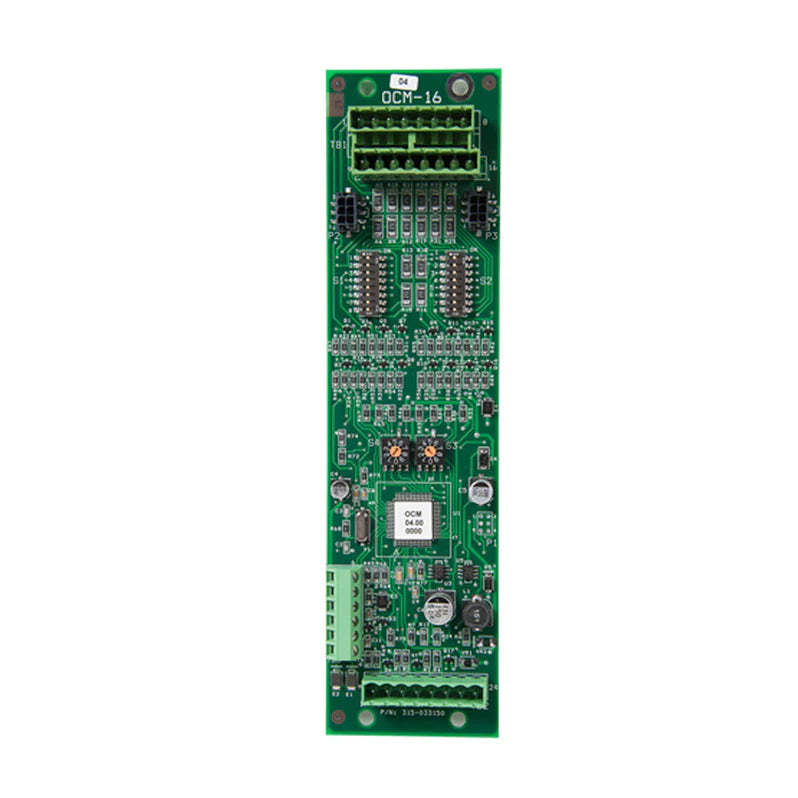

Siemens OCM-16 is a remotely mounted output control module designed for FireFinder XLS and compatible Siemens fire alarm systems. It provides 16 open-collector outputs for driving LEDs, incandescent lamps, or external relays, plus dedicated connections for a local audible and control switches.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Siemens |
| Category | Fire Safety |
| Part Number | OCM-16 |
| Subcategory | Fire Alarm Output Control Modules |
| Product Type | Output Control Module |
| Output Type | Open-collector |
| Output Applications | LEDs, incandescent lamps, external relays |
| Additional Output | Local audible |
| Inputs | Lamp Test and Local Audible Silence |
| Communication | CAN bus |
| Addressing | Two 10-position rotary switches |
| Supply Voltage | 24 VDC |
| Current Draw | 14 mA maximum + 10 mA per active LED |
| Mounting | Remote enclosure |
| Compatible Enclosures | REMBOX2, REMBOX4, and approved UL 864 enclosures |
| Approvals | UL 864, CAN/ULC-S576, FM, CSFM |
| Weight | 0.23 kg |
Information About OCM-16
The OCM-16 communicates with the compatible fire alarm control system through a Control Area Network (CAN) bus connection to the NIC-C. Two 10-position rotary switches allow the module address to be configured as a sub-address of the NIC-C. Any or all of the 16 outputs can be activated by CAN messages, while additional inputs support momentary lamp testing and local audible silence functions. The module can be installed remotely from the main fire alarm control panel in compatible REMBOX2, REMBOX4, or other approved enclosures.
Key Features:
- 16 Open-Collector Outputs: Provides 16 individually controlled outputs for LEDs, lamps, or external relays.
- CAN Bus Communication: Communicates with the compatible fire alarm control system through the CAN network.
- Local Audible Output: Provides a dedicated output for connection to a local audible device.
- Lamp Test Input: Supports momentary testing of connected LEDs and lamps.
- Audible Silence Input: Provides an input for silencing the local audible function.
- Remote Installation: Designed for installation separately from the main fire alarm control panel.
- Power-Limited Circuits: Uses power-limited circuitry for compatible fire alarm system applications.
- Address Configuration: Uses two 10-position rotary switches for CAN network addressing.
The OCM-16 delivers flexible remote output control and status indication for compatible Siemens fire alarm system installations.
