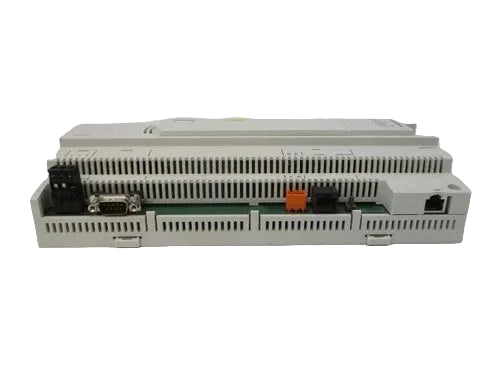

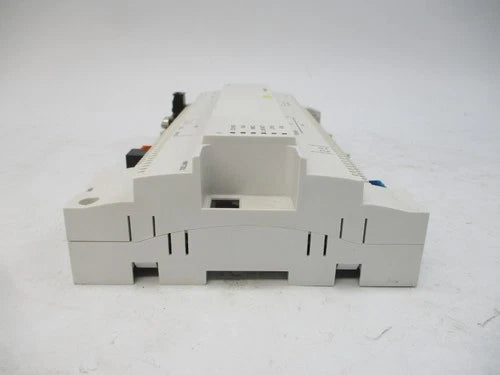

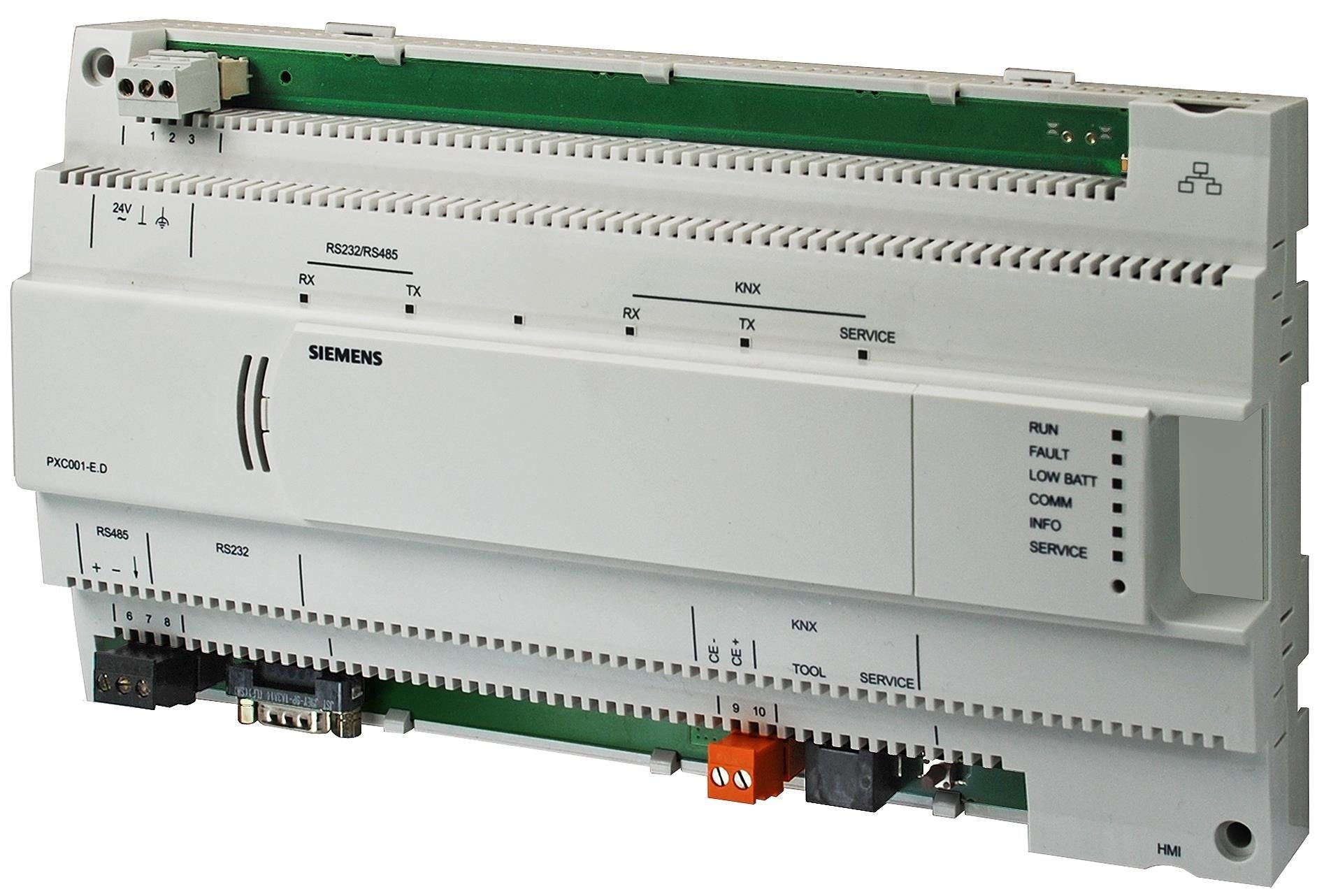

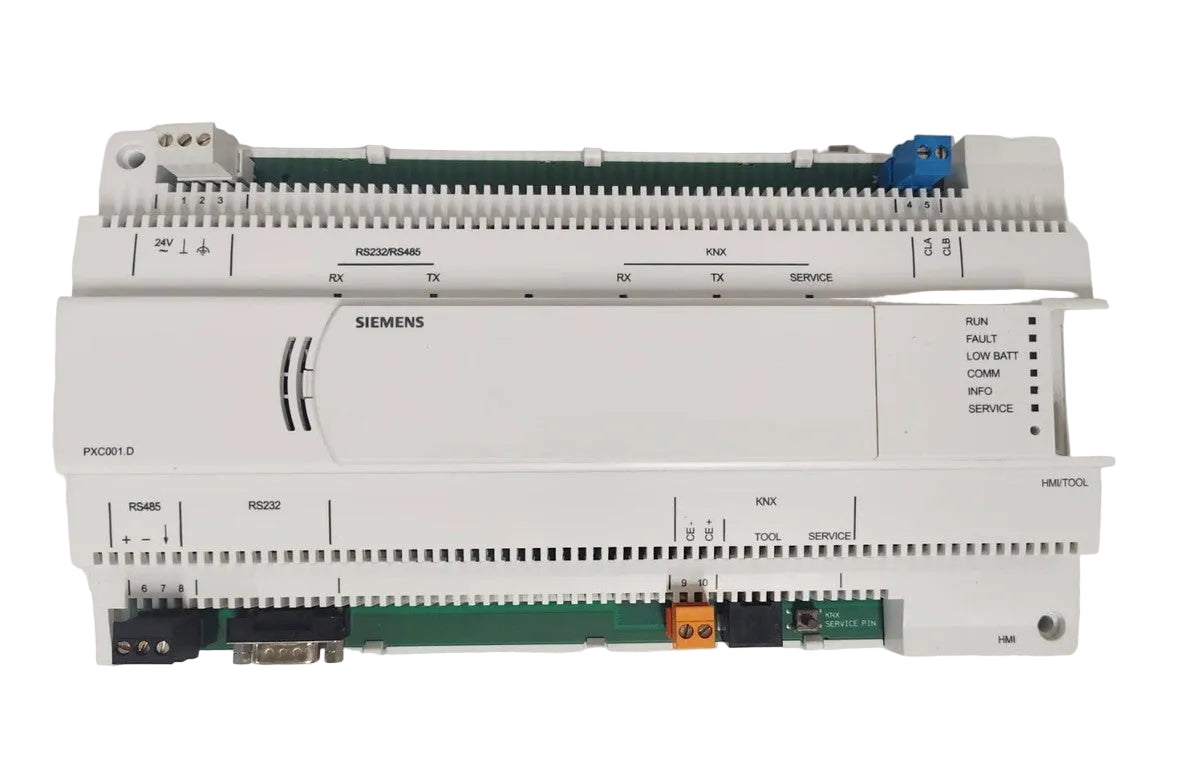

Siemens PXC001.D Desigo PX KNX M-Bus Modbus System Integration Controller
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXC001.D
Description
The Siemens PXC001.D is a Desigo PX system controller designed to integrate third-party building systems using KNX, M-Bus, Modbus, or SCL protocols into a BACnet over LonTalk automation network. It provides programmable integration, data mapping, monitoring, alarms, scheduling, and trend functions for heating, ventilation, air conditioning, lighting, metering, and other building services.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Programmable Logic Controllers / Machine Control |
| Part Number | PXC001.D |
| Subcategory | System Integration Controller |
| Product Family | Desigo PX |
| Product Platform | PX Open |
| Primary Function | Third-Party Building System Integration |
| Supported Integration Protocols | KNX, M-Bus, Modbus, SCL |
| Building Network Protocol | BACnet over LonTalk |
| Network Transceiver | LonWorks FT5000 |
| Network Speed | 78 kilobits per second |
| Communication Interfaces | KNX, RS-232, RS-485 |
| KNX Capacity | Up to 2,000 data points |
| M-Bus, Modbus, or SCL Capacity | Up to 250 data points without option module |
| Operating Voltage | 24 volts alternating current ±20 percent |
| Operating Frequency | 50/60 hertz |
| Maximum Power Consumption | 3.5 volt-amperes |
| Processor | Motorola PowerPC MPC885 |
| Memory | 64 megabytes synchronous dynamic random-access memory and 32 megabytes flash memory |
| Weight | 1.53 lbs |
Information About PXC001.D
The PXC001.D is a Siemens Desigo PX system controller developed as part of the PX Open platform for connecting third-party devices and subsystems at the building automation level. Its hardware incorporates KNX, RS-232, and RS-485 interfaces together with a LonWorks FT5000 transceiver for BACnet over LonTalk network communication. The controller supports up to 2,000 KNX data points or 250 data points for Modbus, M-Bus, or SCL applications, with additional capacity available through compatible PXA40-RS1 and PXA40-RS2 option modules. It is freely programmable and provides system-level functions including alarm management, time scheduling, trend recording, access protection, and cross-communication with compatible PX and BACnet devices.
Key Features:
- Multi-Protocol Integration: Supports integration of KNX, M-Bus, Modbus, and SCL equipment into the Desigo PX building automation environment.
- BACnet over LonTalk: Uses a LonWorks FT5000 transceiver operating at 78 kilobits per second for building-level BACnet communication.
- KNX Capacity: Supports integration of up to 2,000 KNX data points for compatible building-control applications.
- Serial Integration: Provides RS-232 and RS-485 interfaces for connecting compatible serial third-party devices and systems.
- Expandable Architecture: Supports PXA40-RS1 and PXA40-RS2 option modules for increasing M-Bus, Modbus, and SCL integration capacity.
- Programmable System Functions: Executes application-specific control functions together with alarms, scheduling, trends, and access protection.
- 24-Volt Operation: Operates from a 24-volt alternating-current supply at 50 or 60 hertz with maximum consumption of 3.5 volt-amperes.
- Desigo PX Compatibility: Designed for automation-level integration and information exchange with the Siemens Desigo building automation and control system.
The PXC001.D delivers the reliability and precision required for multi-protocol system integration within Siemens Desigo PX building automation networks.
