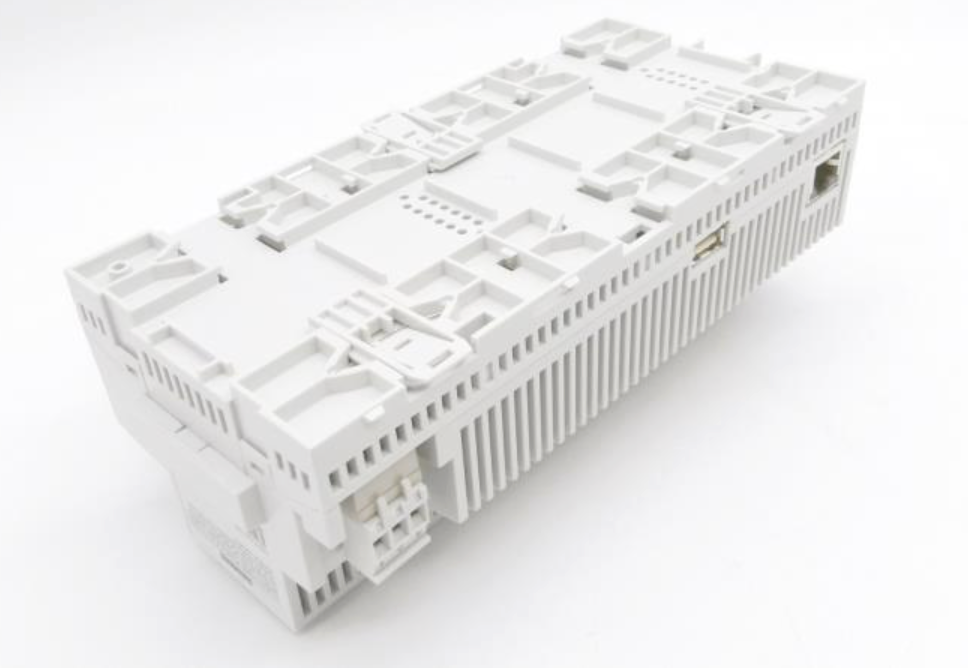

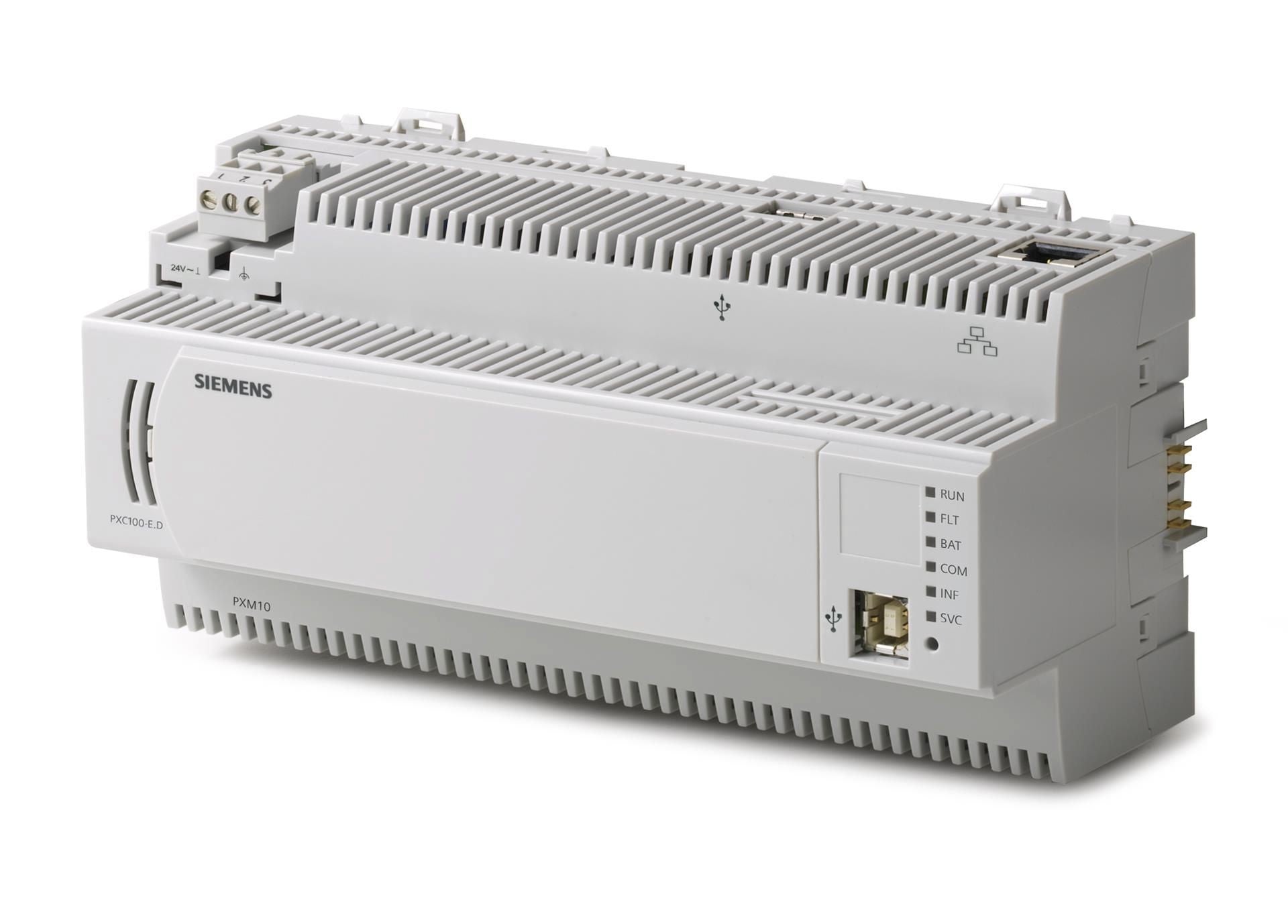

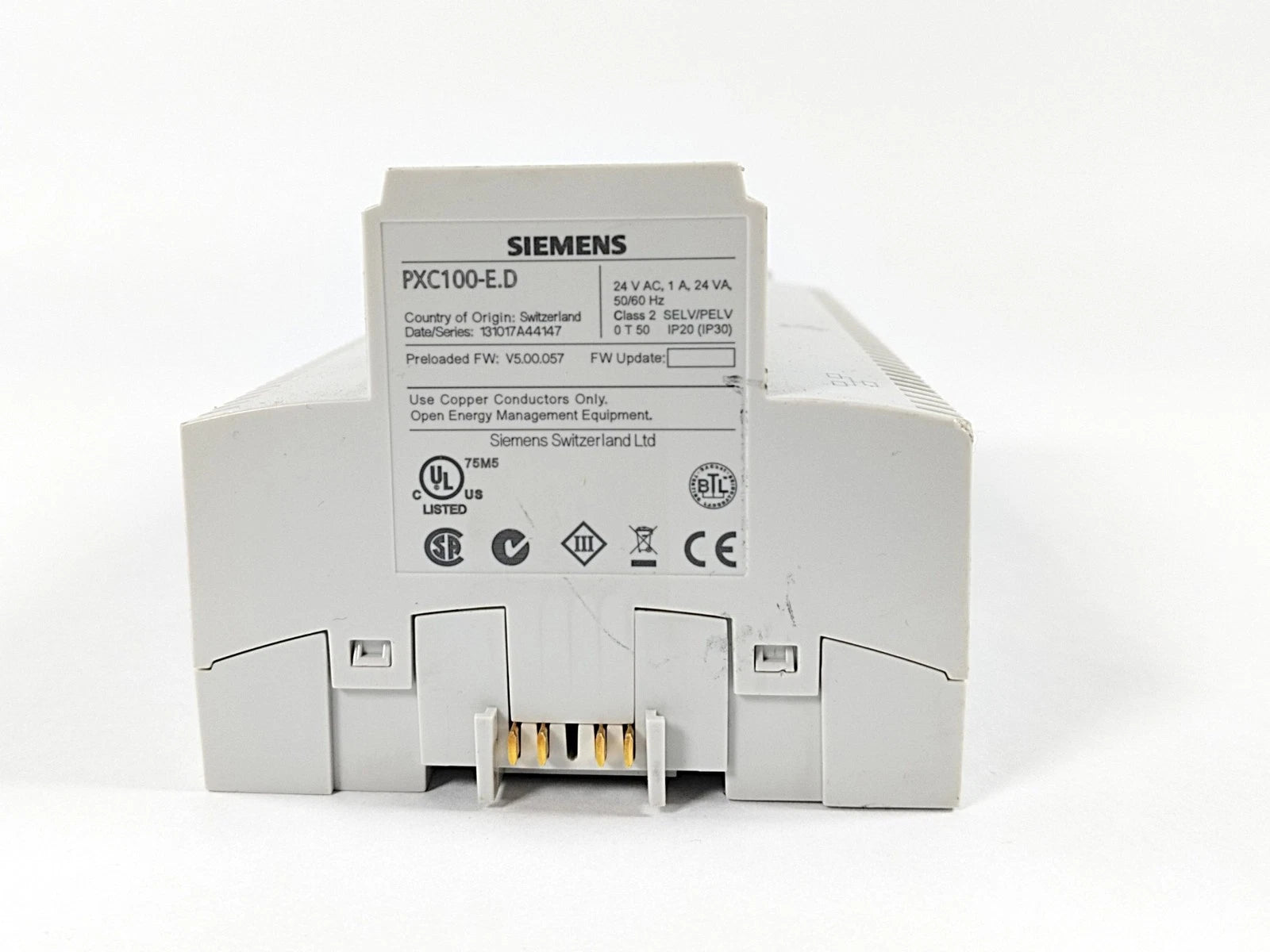

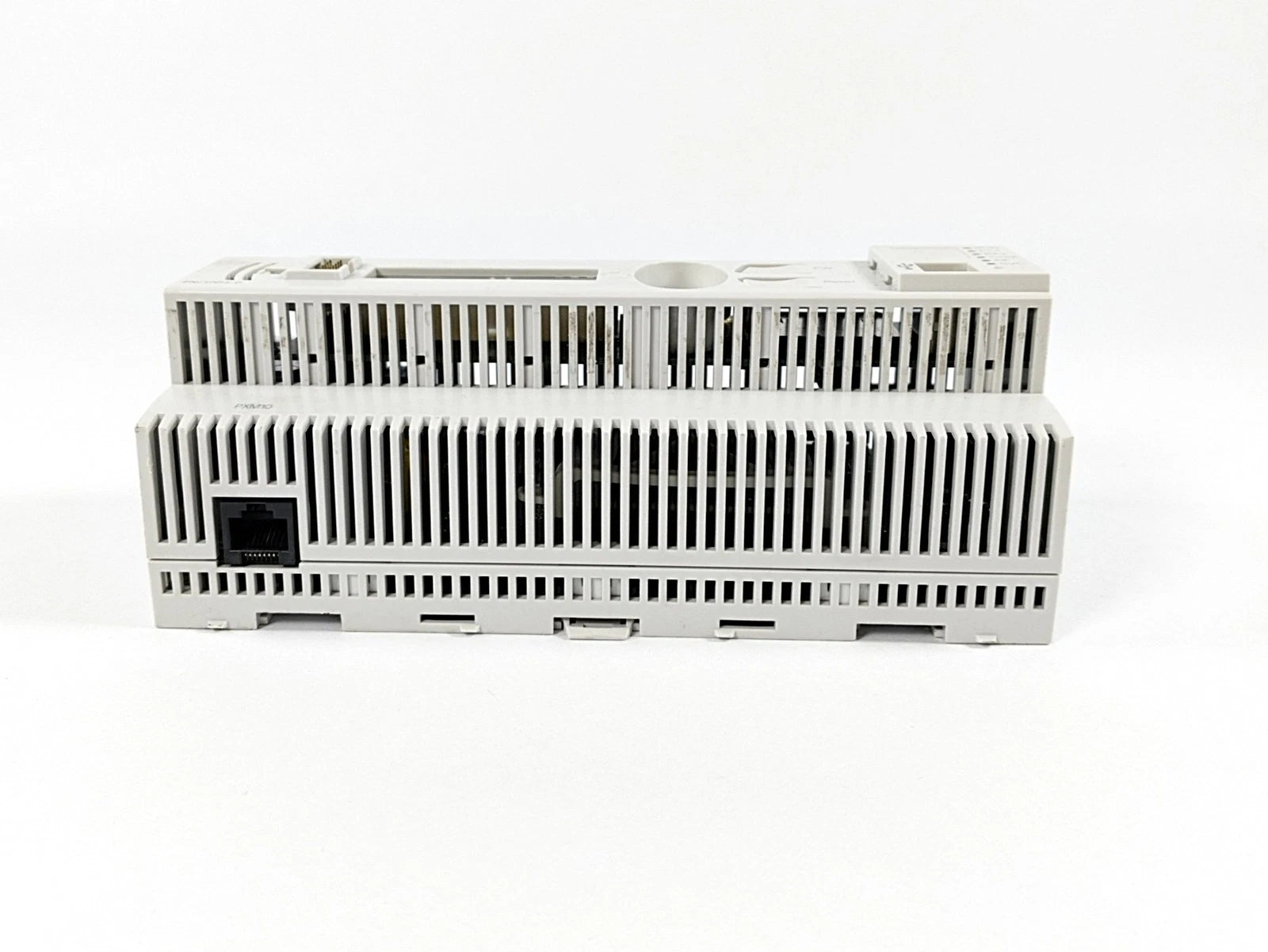

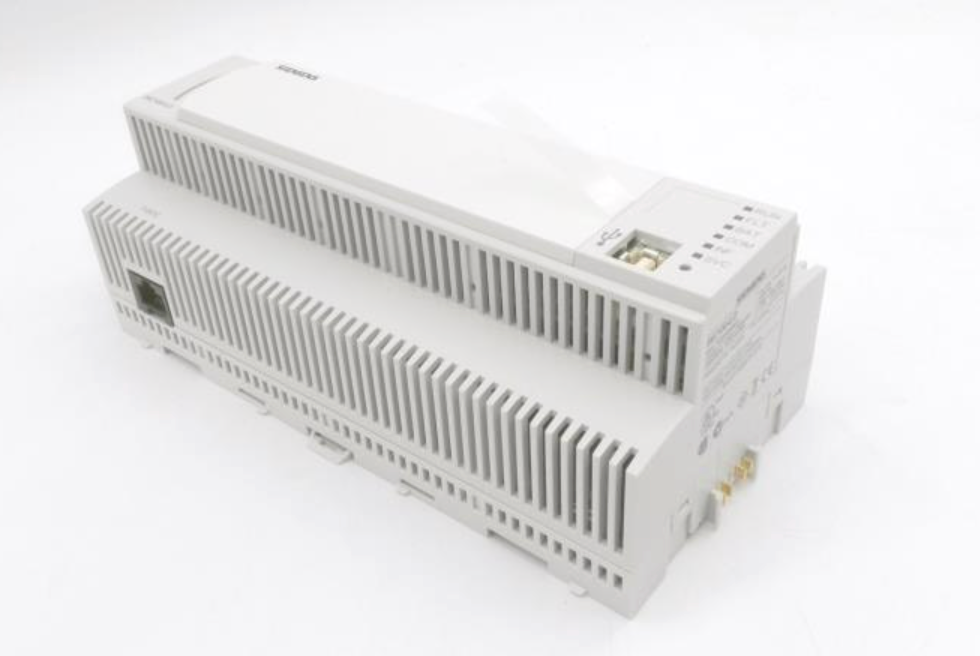

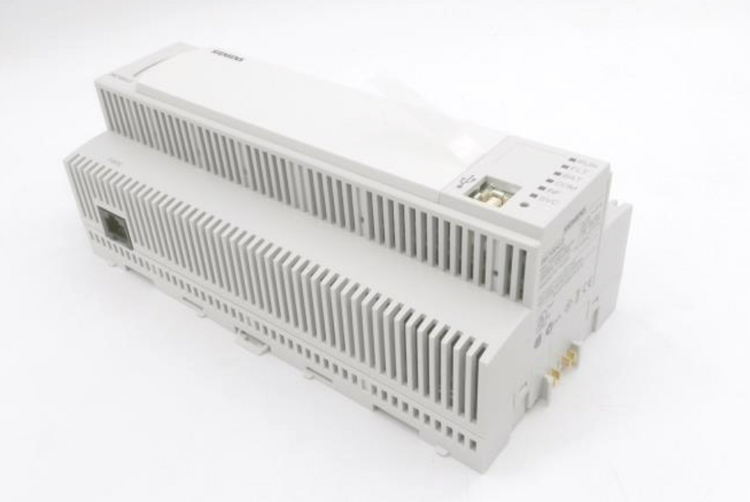

Siemens PXC100-E.D Desigo PX BACnet/IP Modular Automation Station Controller
- Regular price
- $3,887.00
- Sale price
- $3,887.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXC100-E.D
Description
The Siemens PXC100-E.D is a modular automation station developed for Desigo PX building automation systems using BACnet/IP communication. Designed to control HVAC, energy management, and building infrastructure applications, the controller supports up to 200 physical data points while providing scalable expansion through modular I/O architecture. Its DIN rail mounting and 24 VAC operation make it suitable for commercial building automation installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | PXC100-E.D |
| Subcategory | PLC Module/Rack |
| Product Type | Automation Station |
| Series | Desigo PX Modular Series |
| Communication Protocol | BACnet/IP |
| Ethernet Interface | 10/100Base-TX RJ45, Auto-Sensing |
| Maximum Physical Data Points | 200 |
| Supply Voltage | 24 VAC |
| Power Consumption | 24 VA Maximum |
| Current Rating | 1 Amp |
| Frequency | 50/60 Hz |
| Power Classification | Class 2 |
| Mounting Type | DIN Rail |
| Protection Rating | IP20/IP30 |
| Expansion Support | TX-I/O and TX Open Modules |
| Operating Memory | 64 MB SDRAM |
| Flash Memory | 32 MB FLASH |
| Applications | HVAC, Building Automation, Energy Management |
| Weight | 0.50 kgs |
Information About PXC100-E.D
The PXC100-E.D is part of the Siemens Desigo PX Modular Series of automation stations engineered for advanced building management applications. It communicates using BACnet/IP over Ethernet and supports modular TX-I/O expansion modules, TX Open modules, and distributed I/O configurations for flexible system design. The controller is designed to operate on a 24 VAC Class 2 power supply while providing centralized control for HVAC equipment, lighting, energy monitoring, and other building automation functions. Its modular architecture allows integration with touch panels, web interfaces, and multiple field devices, making it suitable for medium to large commercial automation systems.
Key Features:
- BACnet/IP Communication: Provides native BACnet/IP networking over 10/100 Mbps Ethernet.
- Modular Architecture: Supports Siemens TX-I/O and TX Open expansion modules.
- Up to 200 Physical Data Points: Handles medium-sized building automation applications efficiently.
- 24 VAC Operation: Powered by a Class 2, 24 VAC supply for commercial installations.
- Ethernet Interface: Features auto-sensing 10/100Base-TX RJ45 communication.
- DIN Rail Mounting: Simplifies installation inside standard control cabinets.
- Battery Backup: Maintains real-time clock and critical memory during power interruptions.
- Building Automation Integration: Supports HVAC, lighting, energy management, and plant control systems.
The PXC100-E.D delivers the reliability and precision required for scalable commercial building automation and HVAC control applications.
