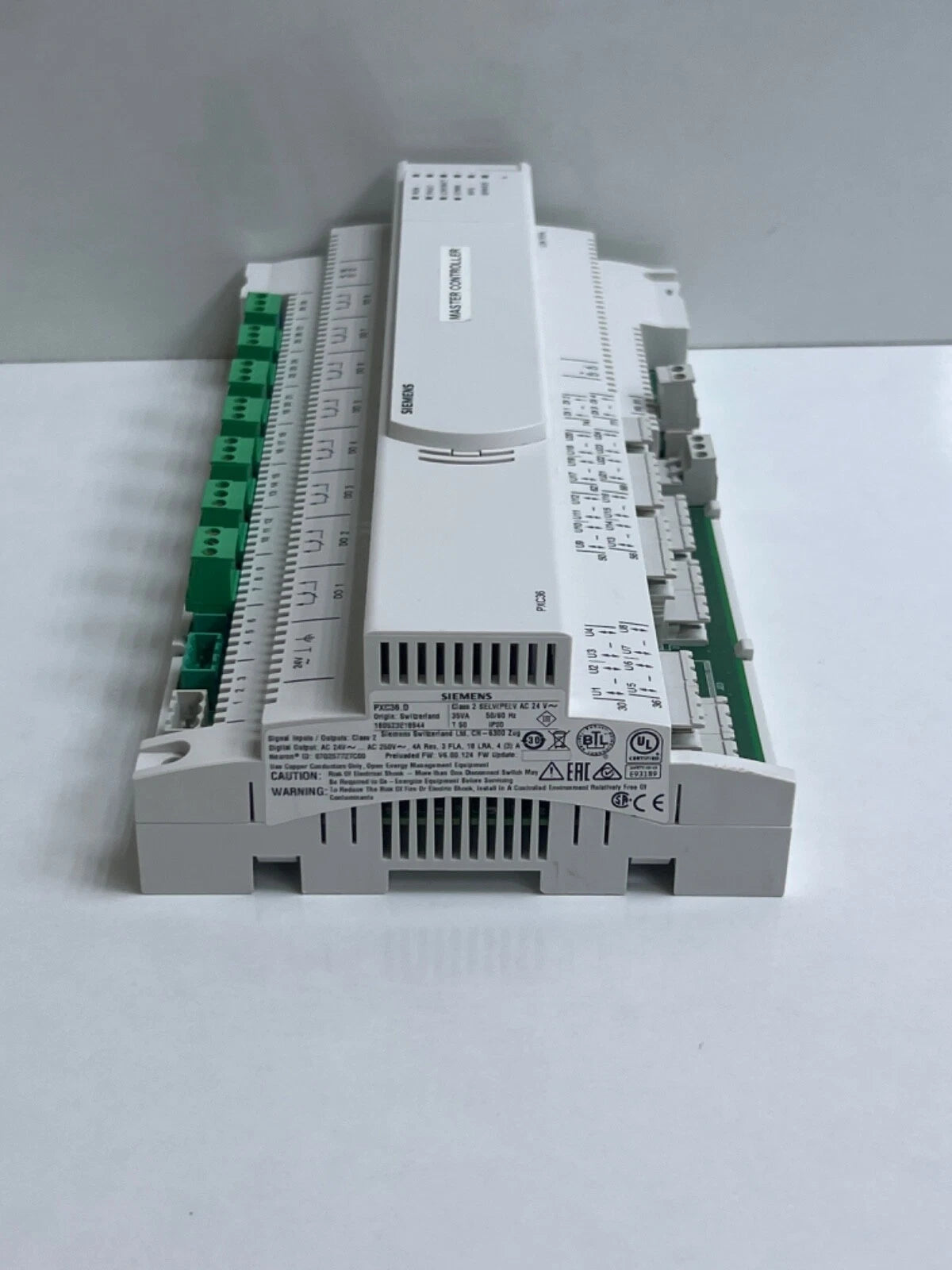

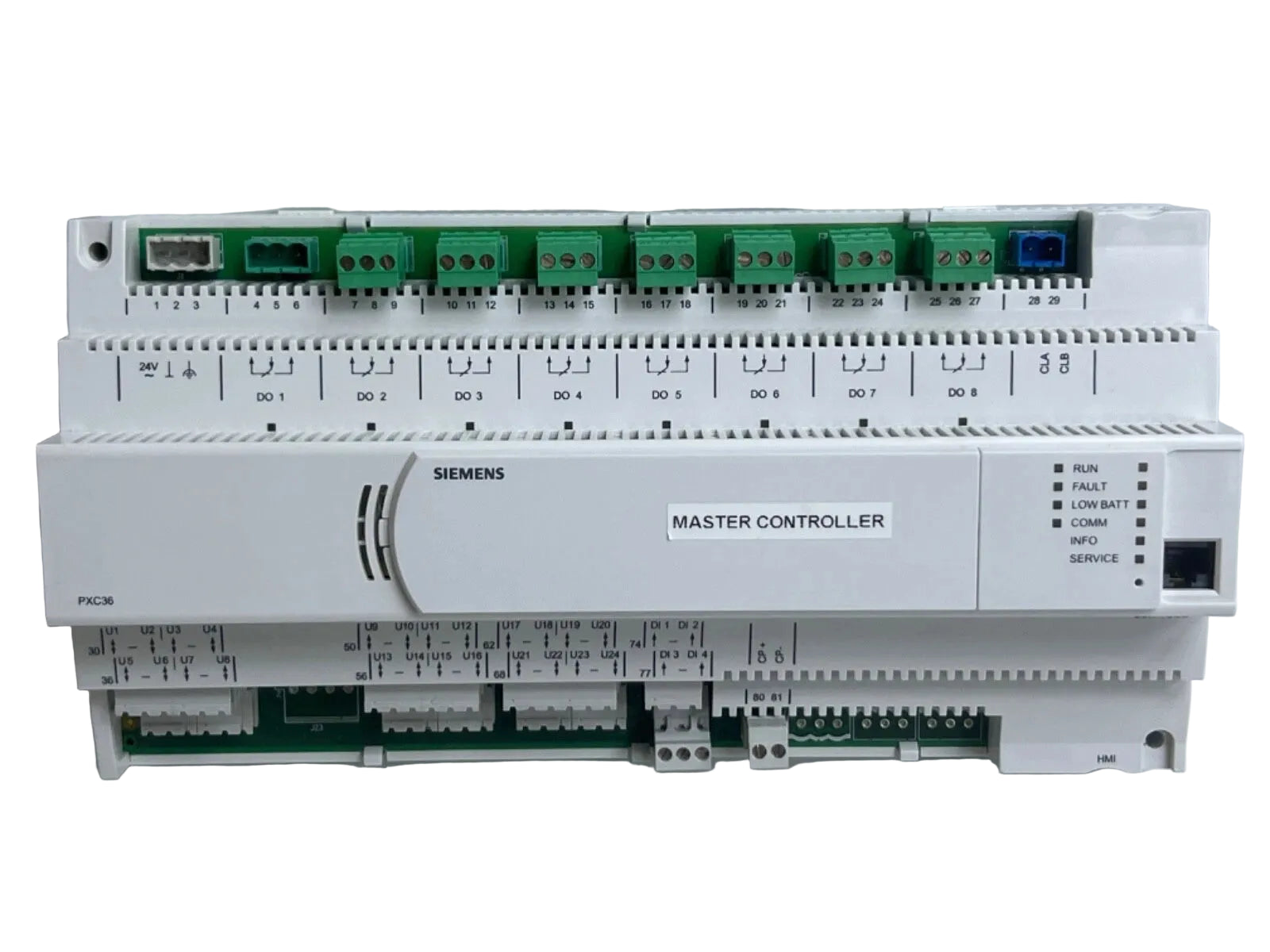

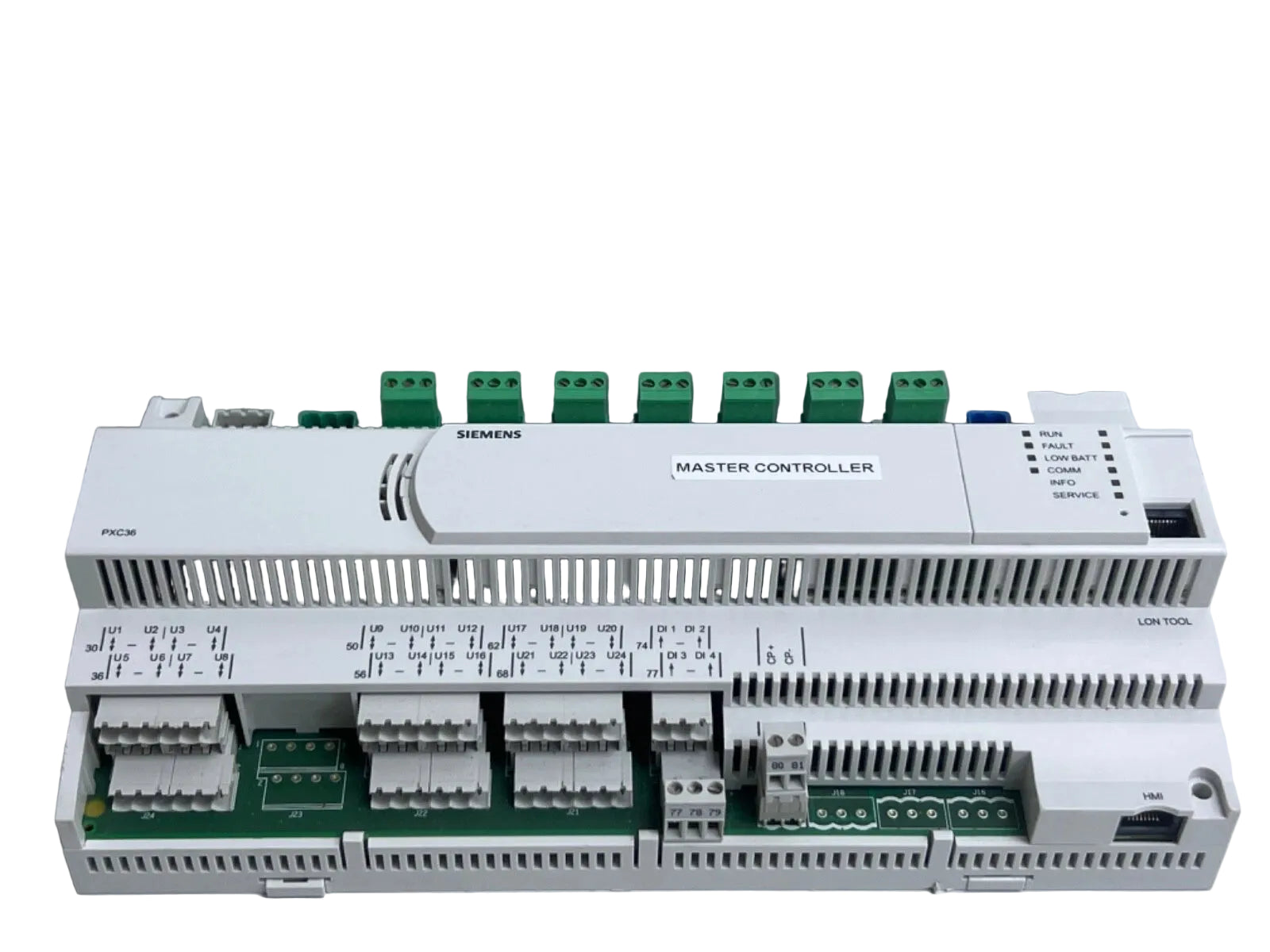

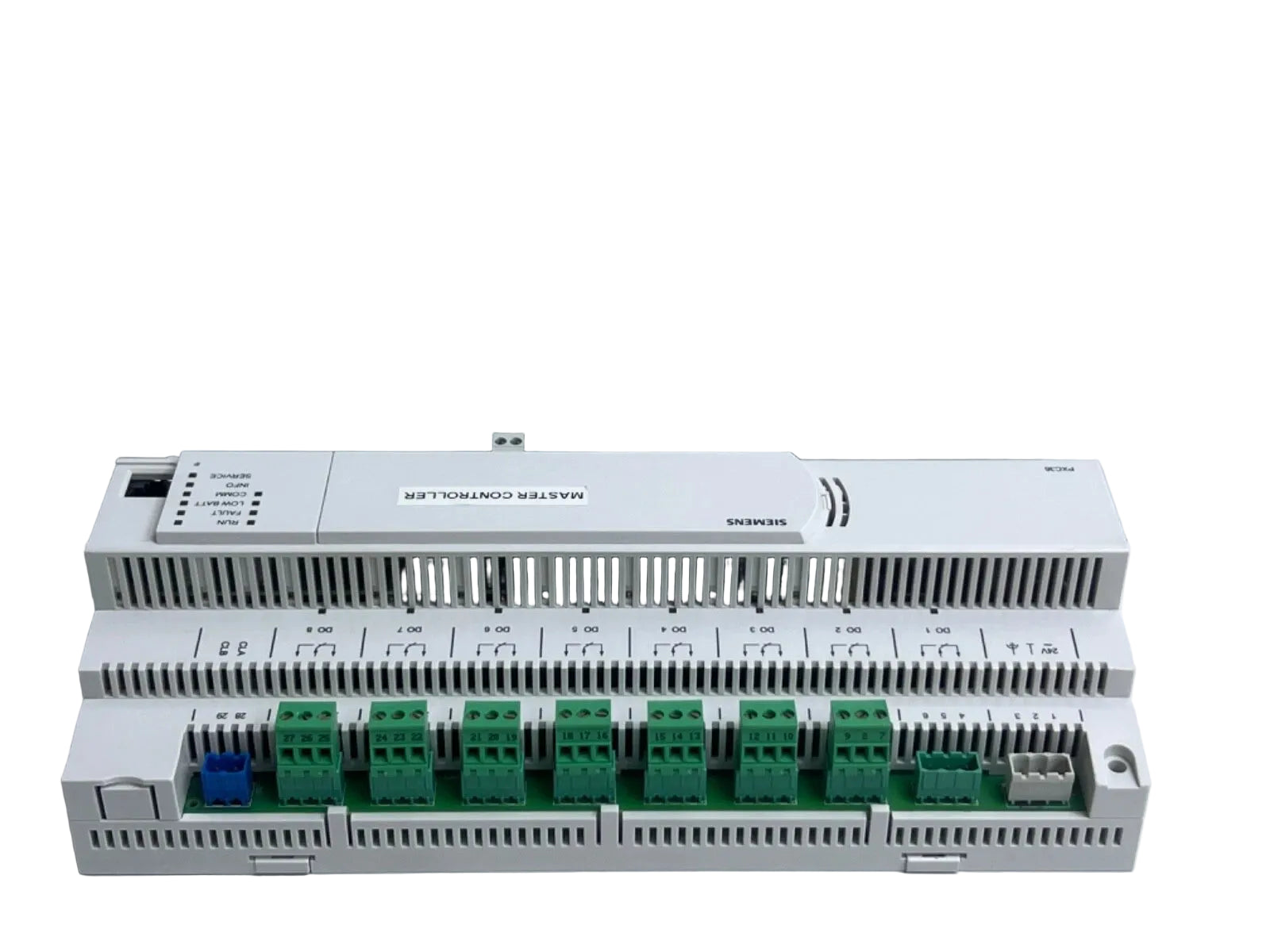

Siemens PXC36.D Desigo PX 36-Point BACnet Building Automation Station
- Regular price
- $1,589.00
- Sale price
- $1,589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXC36.D
Description
The Siemens PXC36.D is a Desigo PX compact automation station designed for heating, ventilation, air conditioning, and building-services control applications. It provides 36 integrated physical input and output points, operates from 24 volts alternating current, and communicates over BACnet using a LonTalk network for stand-alone or networked building automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Programmable Logic Controllers / Machine Control |
| Part Number | PXC36.D |
| Subcategory | Building Automation Station |
| Product Family | Desigo PX |
| Controller Type | Compact, freely programmable automation station |
| Total Input and Output Points | 36 |
| Universal Input and Output Points | 24 |
| Digital Inputs | 4 |
| Relay Outputs | 8 |
| Operating Voltage | 24 volts alternating current ±20 percent |
| Operating Frequency | 50/60 hertz |
| Maximum Power Consumption | 35 volt-amperes |
| Processor | Motorola PowerPC MPC885 |
| Memory | 64 megabytes synchronous dynamic random-access memory and 16 megabytes flash memory |
| Network Communication | BACnet over LonTalk |
| Room Unit Interface | PPS2 |
| Maximum Scan Cycle | 1 second |
| Weight | 2.38 lbs |
Information About PXC36.D
The PXC36.D is a Siemens Desigo PX compact automation station with a fixed combination of 36 onboard input and output points for direct connection of field devices. Its hardware includes 24 universal input and output points, four digital inputs, and eight relay outputs, with six of the universal points supporting 24-volt binary output operation. The controller uses a Motorola PowerPC MPC885 processor with 64 megabytes of synchronous dynamic random-access memory and 16 megabytes of flash memory, while BACnet communication is provided over a LonTalk network. It supports building automation functions including alarm management, time scheduling, trend processing, remote management, access protection, and connections to compatible Siemens operator and room units.
Key Features:
- 36 Integrated Input and Output Points: Provides 24 universal input and output points, four digital inputs, and eight relay outputs in one compact automation station.
- BACnet over LonTalk Communication: Connects to a building-level network through a LonWorks FTT transceiver while implementing BACnet communication.
- Universal Signal Handling: Universal points support passive temperature sensors, 0 to 10 volt active sensors, binary contacts, counters, and configurable output functions.
- 24-Volt Power Supply: Operates from 24 volts alternating current with a tolerance of ±20 percent at 50 or 60 hertz.
- Integrated Processing: Uses a Motorola PowerPC MPC885 processor with 80 megabytes of total onboard memory.
- Relay Outputs: Eight onboard digital relay outputs provide switching interfaces for compatible controlled equipment.
- PPS2 Room Unit Interface: Provides a PPS2 connection for compatible Siemens QAX room units, supporting up to five room units.
- Building Management Functions: Supports alarms, schedules, trends, remote management, access protection, and other programmable building-control functions.
The PXC36.D delivers the reliability and precision required for integrated heating, ventilation, air conditioning, and building-services automation.
