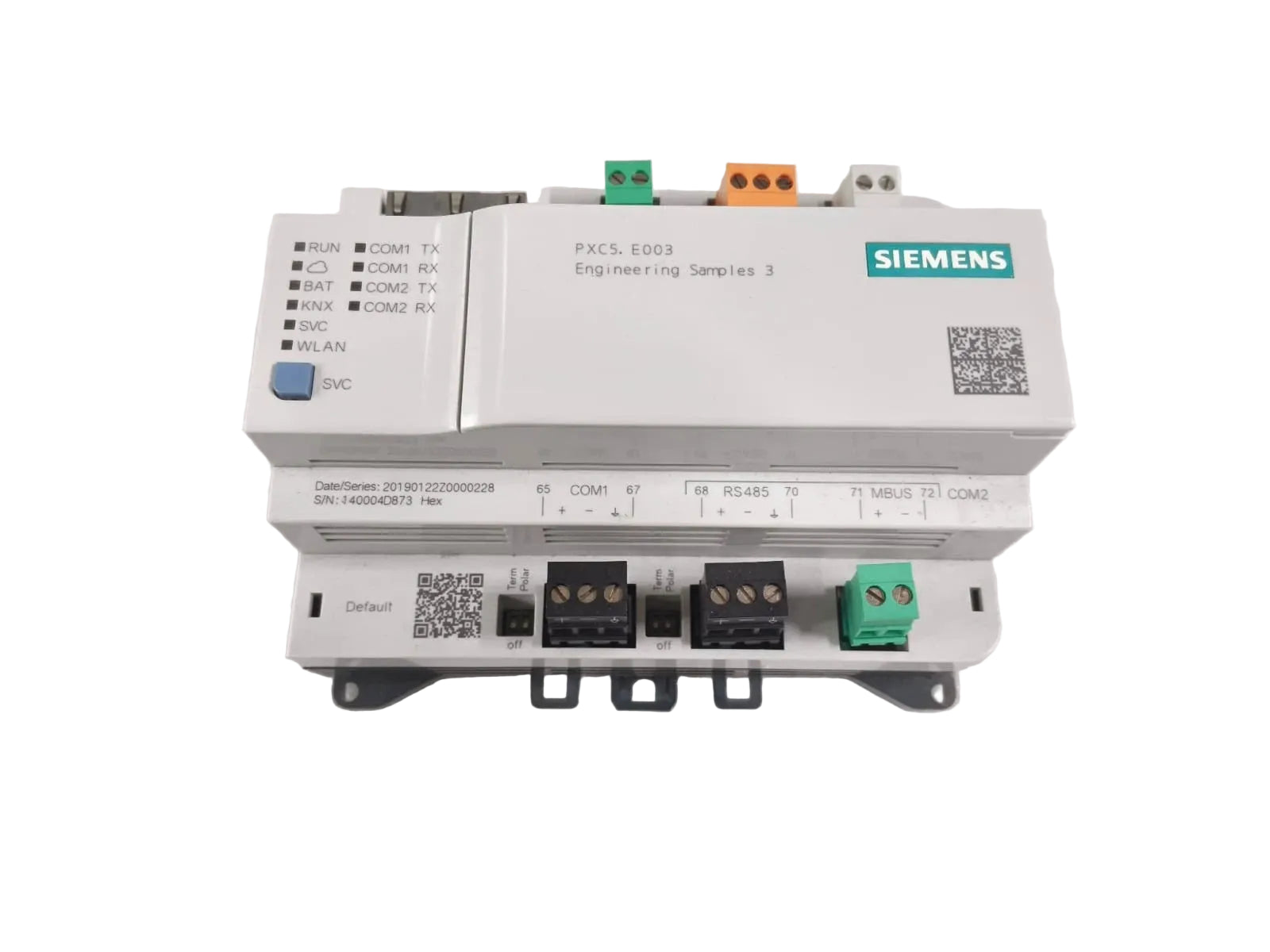

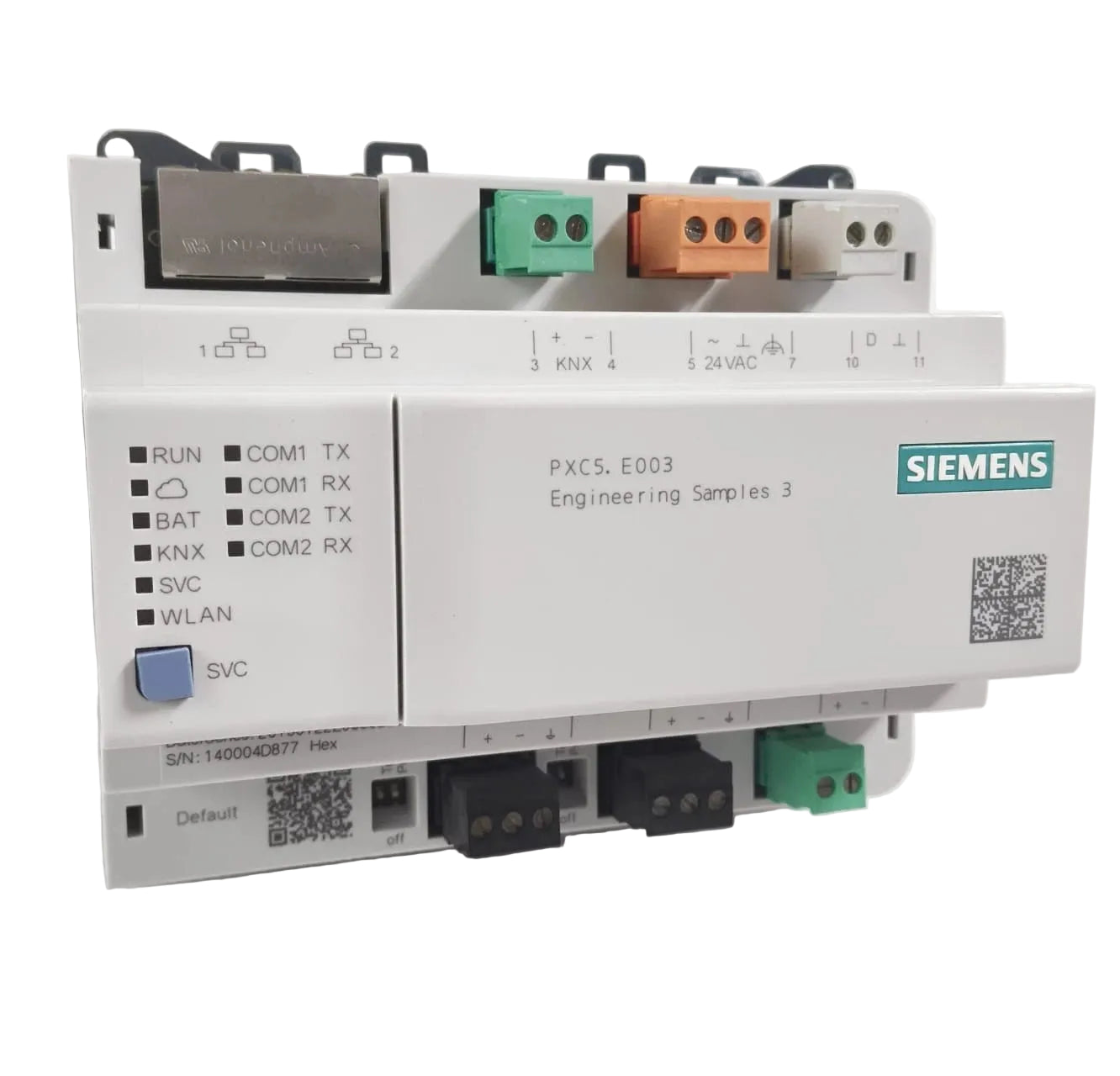

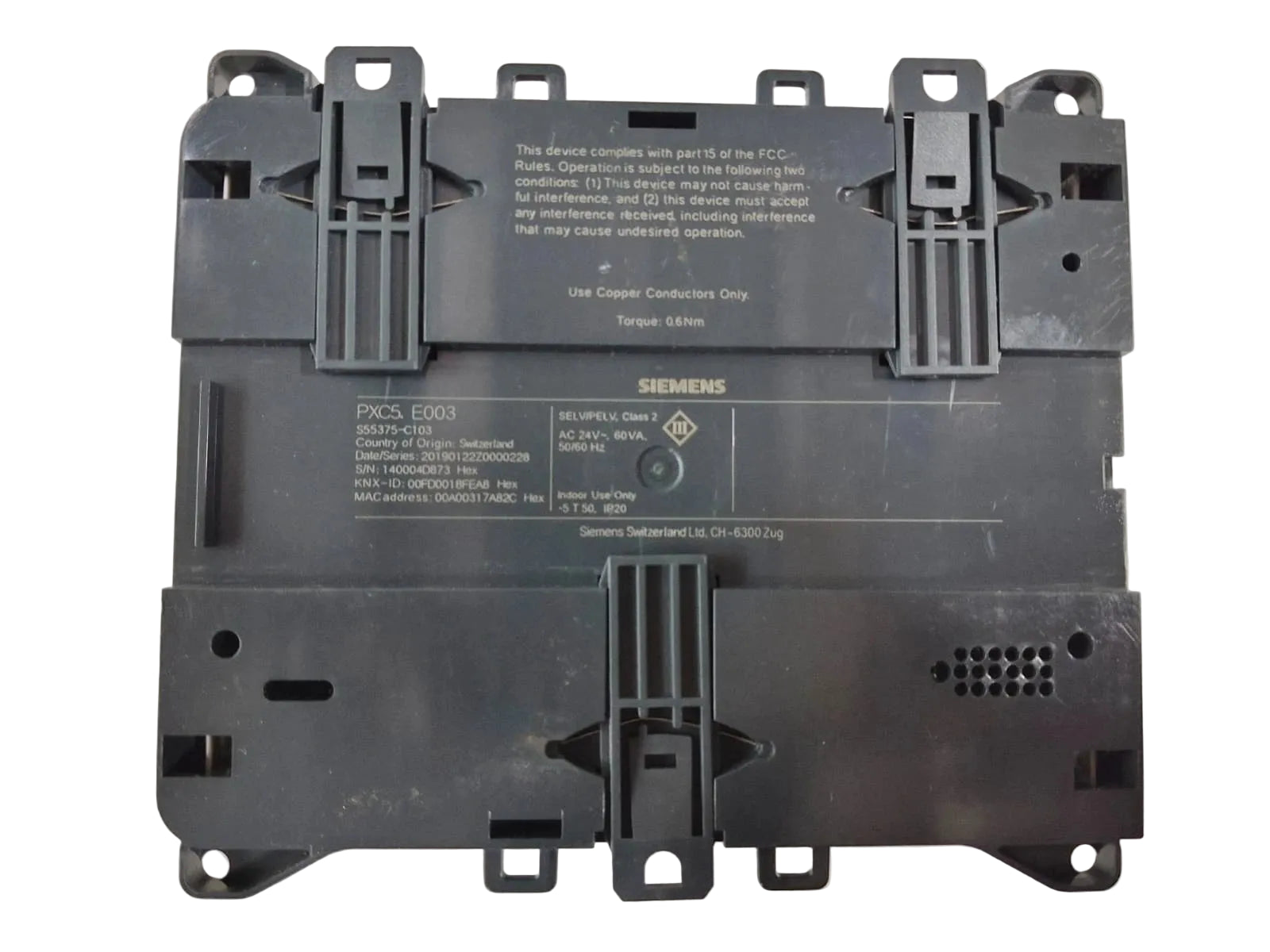

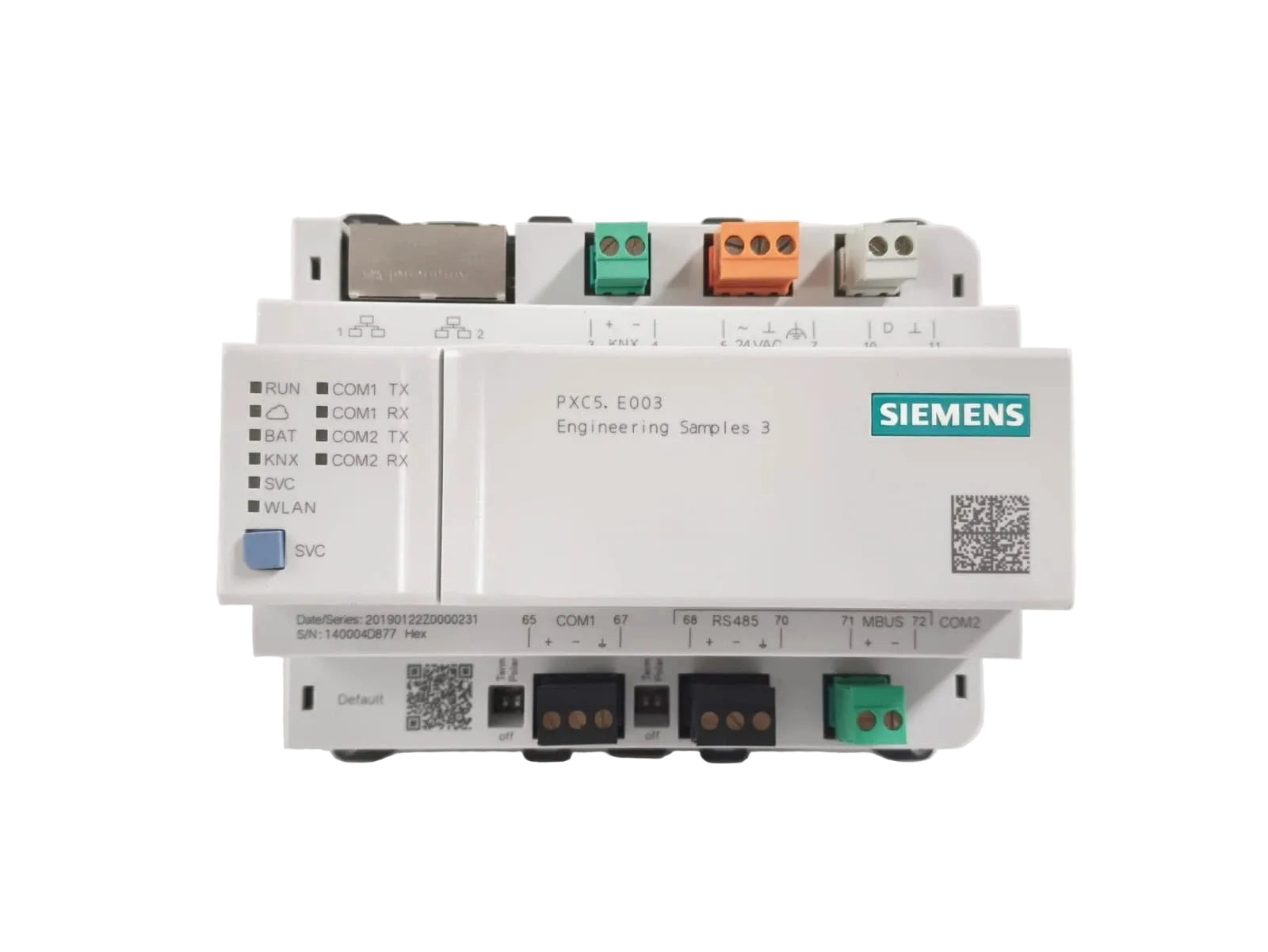

Siemens PXC5.E003 Desigo PX System Controller for BACnet Building Automation
- Regular price
- $2,502.00
- Sale price
- $2,502.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXC5.E003
Description
The Siemens PXC5.E003 is a freely programmable Desigo PX system controller designed for integrating and managing HVAC, energy, and building automation systems over BACnet/IP, BACnet Secure Connect, and BACnet MS/TP networks. It provides advanced control, scheduling, alarming, and data management functions while supporting the integration of third-party field devices. Its DIN rail-mounted design and secure networking capabilities make it suitable for modern commercial building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | PXC5.E003 |
| Subcategory | PLC Module/Rack |
| Product Type | System Controller |
| Series | Desigo PX |
| Supply Voltage | 24 VAC |
| Voltage Type | AC |
| Power Consumption | 24 VA |
| Communication Protocols | BACnet/IP, BACnet Secure Connect, BACnet MS/TP, Modbus RTU/TCP, KNX PL-Link, M-Bus |
| Display | No |
| Mounting | DIN Rail |
| Protection Rating | IP20 |
| Ethernet Ports | Integrated 2-port Ethernet Switch |
| Wireless Interface | WLAN for Engineering and Commissioning |
| Width | 144 mm |
| Height | 124 mm |
| Depth | 71 mm |
| Working Independently | No |
| Suitable for Front Mounting | No |
| Weight | 0.50 kgs |
Information About PXC5.E003
The PXC5.E003 is a high-performance system controller within the Siemens Desigo PX platform for intelligent building management systems. It supports communication with BACnet/IP, BACnet Secure Connect (BACnet/SC), BACnet MS/TP, Modbus RTU/TCP, KNX PL-Link, and M-Bus devices, enabling centralized management of diverse building systems. The controller includes advanced system functions such as scheduling, trending, alarming, access protection, and graphical engineering using Siemens ABT Site software. Designed for DIN rail installation, it incorporates an integrated Ethernet switch, wireless commissioning capabilities, and secure communication technologies that simplify deployment while improving cybersecurity.
Key Features:
- Freely Programmable Controller: Supports custom HVAC and building automation control strategies using graphical function blocks.
- BACnet Integration: Communicates over BACnet/IP, BACnet Secure Connect, and BACnet MS/TP with BTL-certified interoperability.
- Multi-Protocol Support: Integrates Modbus RTU, Modbus TCP, KNX PL-Link, and M-Bus field devices.
- Integrated Ethernet Switch: Dual-port Ethernet switch simplifies network installation and reduces cabling requirements.
- Secure Communication: Supports HTTPS, IEEE 802.1X authentication, and BACnet Secure Connect for enhanced cybersecurity.
- Wireless Engineering: Built-in WLAN interface allows convenient commissioning and maintenance.
- Advanced System Functions: Provides scheduling, alarming, trending, user management, and historical data storage.
- DIN Rail Mounting: Compact IP20 enclosure enables installation in standard electrical control panels.
The PXC5.E003 delivers the reliability and precision required for advanced building automation, HVAC integration, and enterprise energy management systems.
