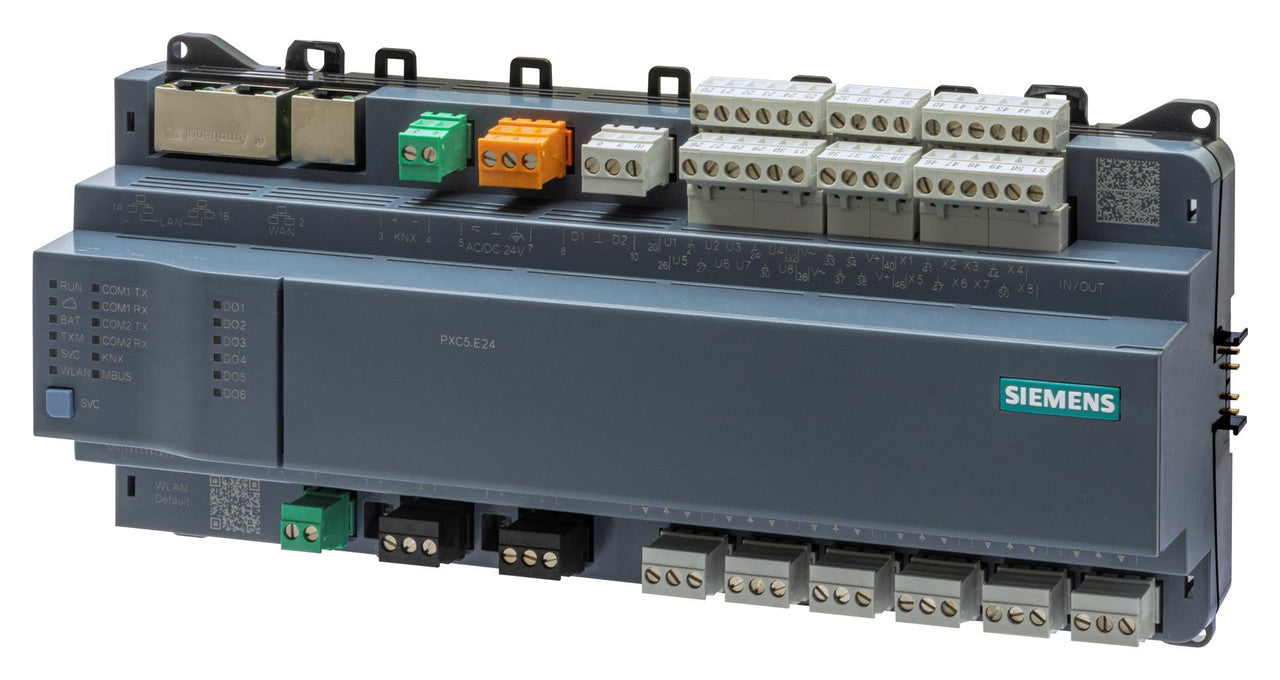

Siemens PXC5.E24 Desigo PX 24-Point BACnet Secure Connect Building Automation Station
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXC5.E24
Description
The Siemens PXC5.E24 is a Desigo PX compact automation station designed for programmable control of heating, ventilation, air conditioning, and other building service systems. It combines 24 onboard input and output points with BACnet over Internet Protocol, BACnet Secure Connect, BACnet Master-Slave/Token-Passing, Modbus, and expandable field-device integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Programmable Logic Controllers / Machine Control |
| Part Number | PXC5.E24 |
| Subcategory | Building Automation Station |
| Product Family | Desigo PX |
| Order Number | S55375-C104 |
| Product Type | Freely Programmable Compact Automation Station |
| Onboard Input and Output Points | 24 |
| Universal Input and Output Points | 8 |
| Super Universal Input and Output Points | 8 |
| Digital Inputs | 2 |
| Relay Outputs | 6 |
| Maximum Physical Input and Output Points | 80 with compatible TXM modules |
| Communication Protocols | BACnet over Internet Protocol, BACnet Secure Connect, BACnet Master-Slave/Token-Passing, Modbus Transmission Control Protocol, Modbus Remote Terminal Unit |
| Ethernet Interfaces | 3 shielded RJ45 ports, 10/100 megabits per second |
| Field Communication | 2 configurable RS-485 interfaces and KNX PL-Link |
| Operating Voltage | 24 volts alternating current or 24 volts direct current |
| Mounting | DIN rail or wall mounting |
| Protection Rating | IP20 |
| Weight | 1.90 lbs |
Information About PXC5.E24
The PXC5.E24 is a Siemens Desigo PX freely programmable automation station with 24 integrated input and output points for direct connection of sensors, actuators, contacts, and controlled equipment. Its onboard configuration consists of eight universal input and output points, eight super universal input and output points, two digital inputs, and six relay outputs, while compatible TXM modules can expand the system to as many as 80 physical input and output points. The controller provides Ethernet, RS-485, and KNX PL-Link connectivity and supports BACnet over Internet Protocol, BACnet Secure Connect, BACnet Master-Slave/Token-Passing, and Modbus integration. Engineering and commissioning are performed with Siemens ABT Site, while an embedded web interface provides local access to device data and commissioning functions.
Key Features:
- 24 Onboard Input and Output Points: Includes eight universal points, eight super universal points, two digital inputs, and six relay outputs.
- Expandable Input and Output Architecture: Compatible TXM modules can increase the physical input and output capacity from 24 onboard points to a maximum of 80 points.
- BACnet Secure Connect: Supports encrypted BACnet Secure Connect communication and can support as many as 100 devices when operating as a BACnet Secure Connect hub.
- BACnet over Internet Protocol: Provides building automation communication over its Ethernet interfaces using the BACnet protocol.
- Modbus Integration: Supports Modbus Transmission Control Protocol and Modbus Remote Terminal Unit communication for integration of compatible third-party equipment.
- Dual RS-485 Interfaces: Provides two configurable RS-485 interfaces that can be assigned to Modbus Remote Terminal Unit or BACnet Master-Slave/Token-Passing networks.
- KNX PL-Link Support: Connects compatible Siemens room thermostats, sensors, operator units, and other field devices, with support for up to 64 KNX PL-Link devices.
- Flexible 24-Volt Supply: Operates from either 24 volts alternating current or 24 volts direct current, allowing integration into common building automation power architectures.
The PXC5.E24 delivers the reliability and precision required for programmable heating, ventilation, air conditioning, field-device integration, and building automation control.
