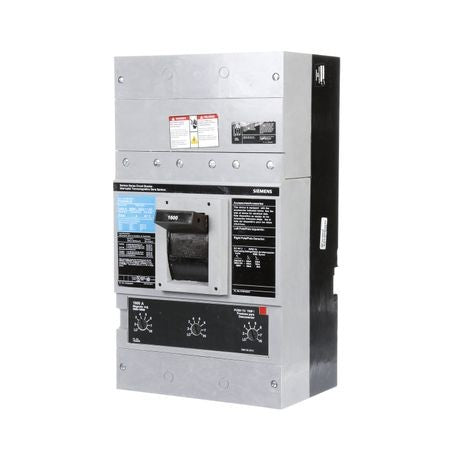

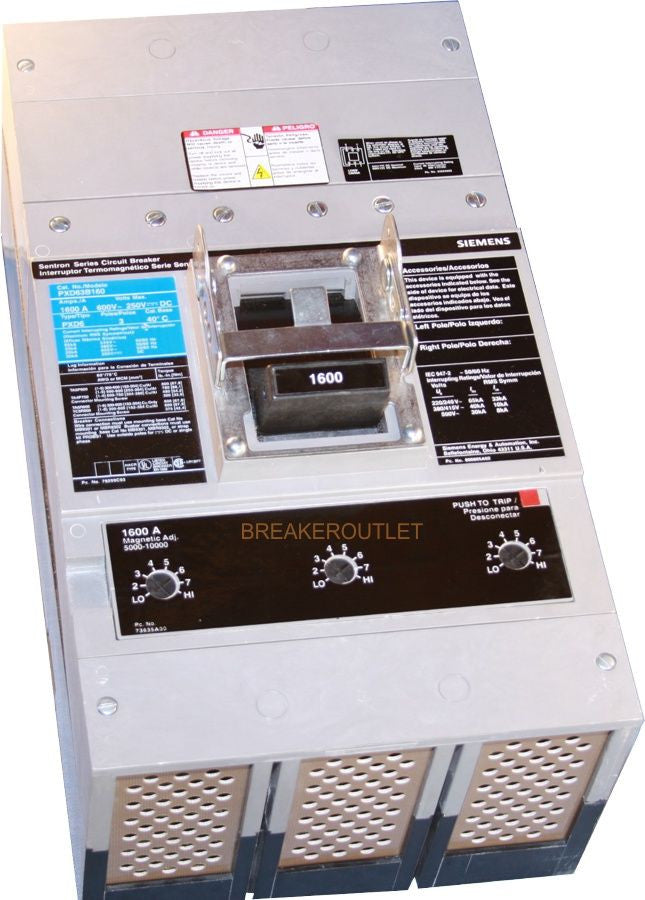

Siemens PXD63B160 PXD6 Molded Case Circuit Breaker 1600A
Part #:
PXD63B160
Manufactured by:
Siemens
- Regular price
- $10,125.00
- Sale price
- $10,125.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens PXD63B160 is a PXD6 molded case circuit breaker featuring thermal-magnetic LI protection and a bolt-on mountin...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: PXD63B160
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: PXD63B160
Description / Specifications
Description
Siemens PXD63B160 is a PXD6 molded case circuit breaker designed for heavy-duty commercial and industrial power distribution applications. It features a 3-pole configuration, thermal-magnetic LI protection, and bolt-on mounting for integration into compatible Siemens switchboards and motor control centers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | PXD63B160 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PXD6 |
| Product Type | Low-Voltage Circuit Breaker |
| Current Rating | 1600A (1.6 kA) |
| AC Voltage Rating | 600VAC |
| DC Voltage Rating | 250VDC, 500VDC |
| Number of Poles | 3 |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC; 50kA @ 480VAC; 25kA @ 600VAC; 25kA @ 250VDC; 25kA @ 500VDC |
| Mounting Style | Bolt-On |
| Lugs | Not Installed |
| Trip Technology | Thermal Magnetic |
| Trip Function | LI – Long-Time and Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Compatible Equipment | Siemens Switchboards, Motor Control Centers |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Mechanical Lugs, Compression Lugs |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approvals | CSA, HACR, IEC, UL |
| Maximum Operating Temperature | 40°C |
| UPC | 783643247581 |
| Commodity Code | 85362090 |
| Country of Origin | Mexico |
| Weight | 57.64 lbs |
Information About PXD63B160
Key Features:
- PXD6 Series: Designed for high-current commercial and industrial power distribution applications.
- Thermal-Magnetic Protection: Provides overload and short-circuit protection.
- LI Trip Functions: Incorporates long-time and instantaneous protection characteristics.
- Adjustable Magnetic Trip: Combines fixed thermal protection with adjustable magnetic operation.
- Bolt-On Mounting: Provides secure installation in compatible Siemens distribution equipment.
- Reverse Feed Capability: Supports reverse-feed configurations where appropriate.
- Non-Interchangeable Trip: Uses an integrated non-interchangeable trip configuration.
- Accessory Support: Compatible with shunt trips, auxiliary switches, undervoltage releases, alarm switches, and optional lug configurations.
The PXD63B160 delivers the high-current circuit protection required for compatible Siemens commercial and industrial power distribution systems.
