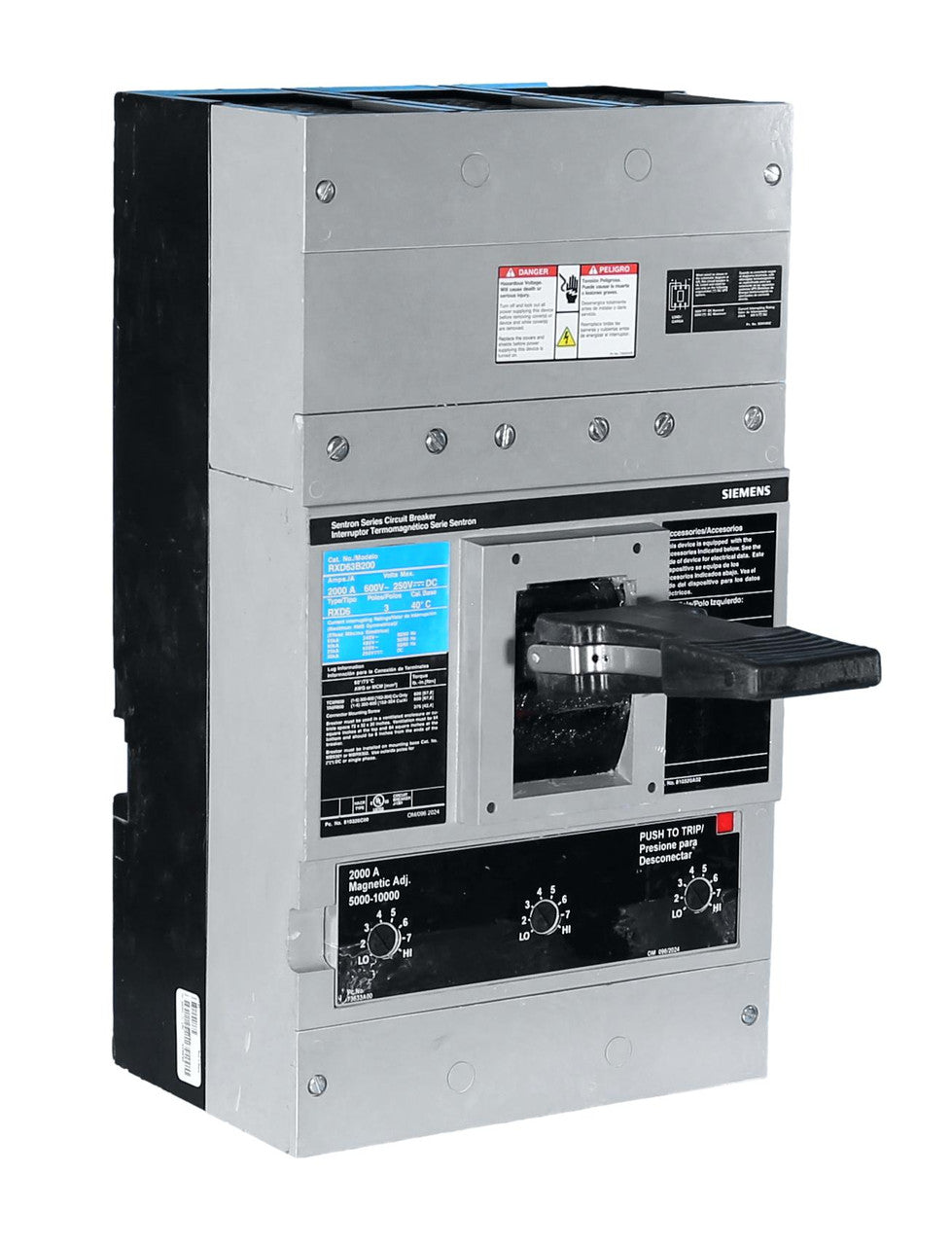

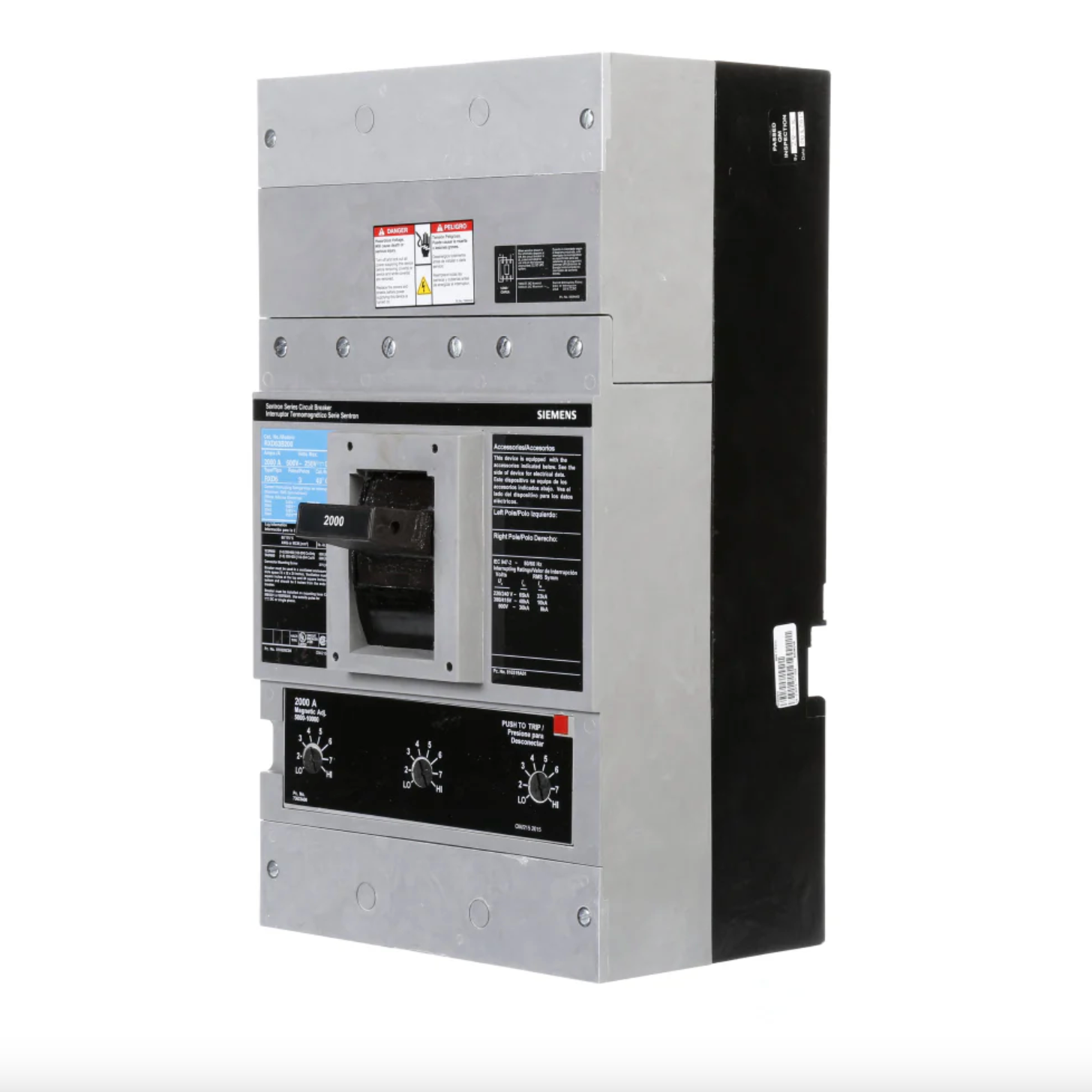

Siemens RXD63B200 2000A 3-Pole Molded Case Circuit Breaker 600VAC 50kA Bolt-On
- Regular price
- $4,449.00
- Sale price
- $4,449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RXD63B200
Description
The Siemens RXD63B200 is a high-capacity molded case circuit breaker designed for heavy-duty power distribution in industrial and commercial systems. With a 2000 amp rating and robust interrupting capability, it provides reliable protection against overloads and short circuits. This breaker is engineered for high-performance applications requiring dependable circuit control and fault management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Part Number | RXD63B200 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | Sentron RXD |
| Frame Type | JD / RD Frame |
| Current Rating | 2000 A |
| Voltage Rating | 600 VAC / 250 VDC / 500 VDC |
| Poles | 3 Pole |
| Phase | 3 Phase |
| Interrupting Rating | 50 kA @ 480 VAC / 25 kA @ 600 VAC |
| Trip Unit | Thermal Magnetic |
| Mounting Type | Bolt-On |
| Trip Function | Long-time and instantaneous |
| Temperature Range | -25°C to +70°C |
| Certifications | UL Listed, CSA Certified |
| Country of Origin | Mexico |
| Weight | 61.339 lbs |
Information About RXD63B200
The RXD63B200 is a Siemens circuit breaker from the Sentron RXD series, built within the JD/RD frame platform for large-scale electrical distribution systems. It features a thermal magnetic trip unit that provides both long-time and instantaneous protection, ensuring accurate response to varying fault conditions. Designed for bolt-on mounting, it offers secure installation in switchboards and panelboards used in industrial and commercial environments. With UL and CSA certifications and high interrupting ratings, it is suitable for applications requiring dependable protection at voltages up to 600 VAC.
Key Features:
- 2000 Amp Rating: Supports high-load electrical systems in industrial and commercial installations
- Thermal Magnetic Trip Unit: Provides both overload and instantaneous short-circuit protection
- High Interrupting Capacity: Rated up to 50 kA at 480 VAC and 25 kA at 600 VAC
- 3-Pole Configuration: Designed for three-phase power distribution systems
- Bolt-On Mounting: Ensures secure installation in panelboards and switchgear
- Sentron RXD Series Design: Compatible with Siemens JD/RD frame distribution systems
- Certified Performance: UL Listed and CSA Certified for compliance with safety standards
- Non-Interchangeable Trip: Fixed trip design for consistent protection performance
The RXD63B200 delivers the reliability and precision required for high-capacity circuit protection in industrial and commercial power distribution systems.
