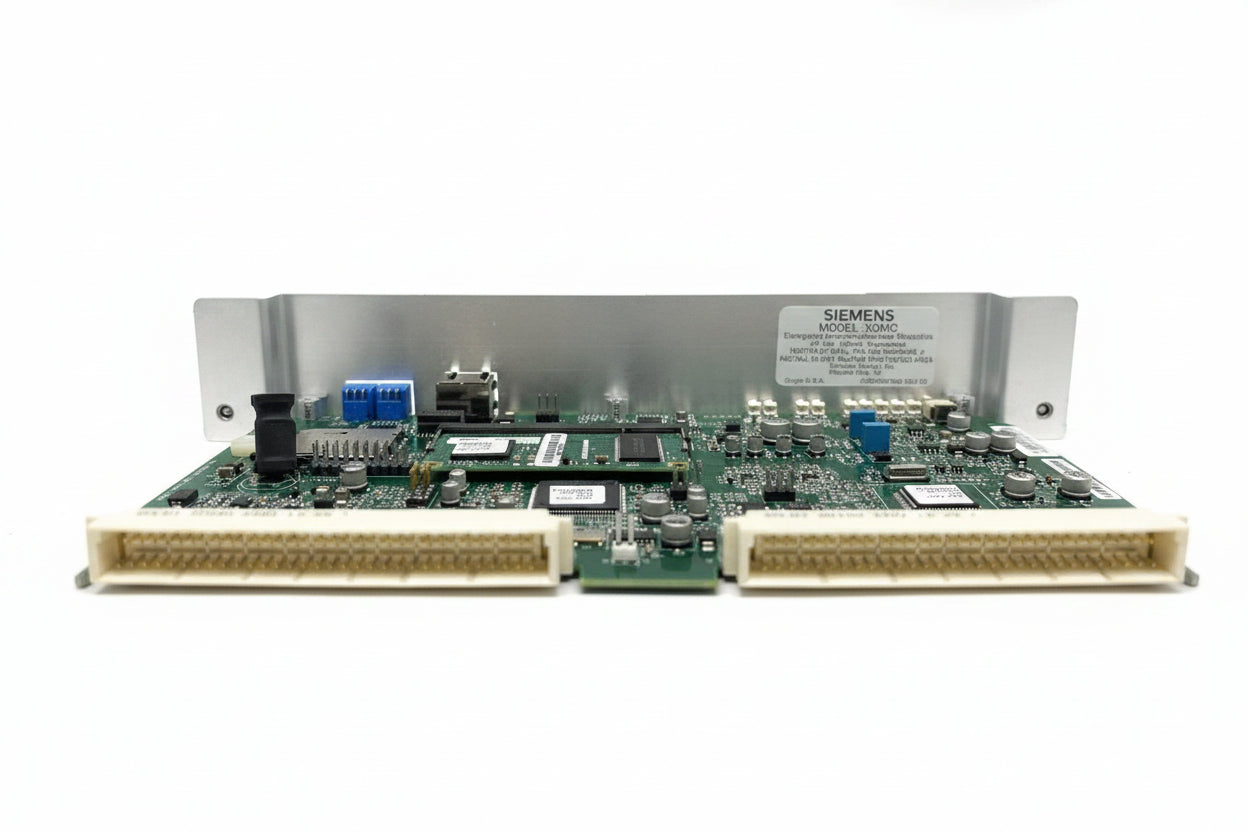

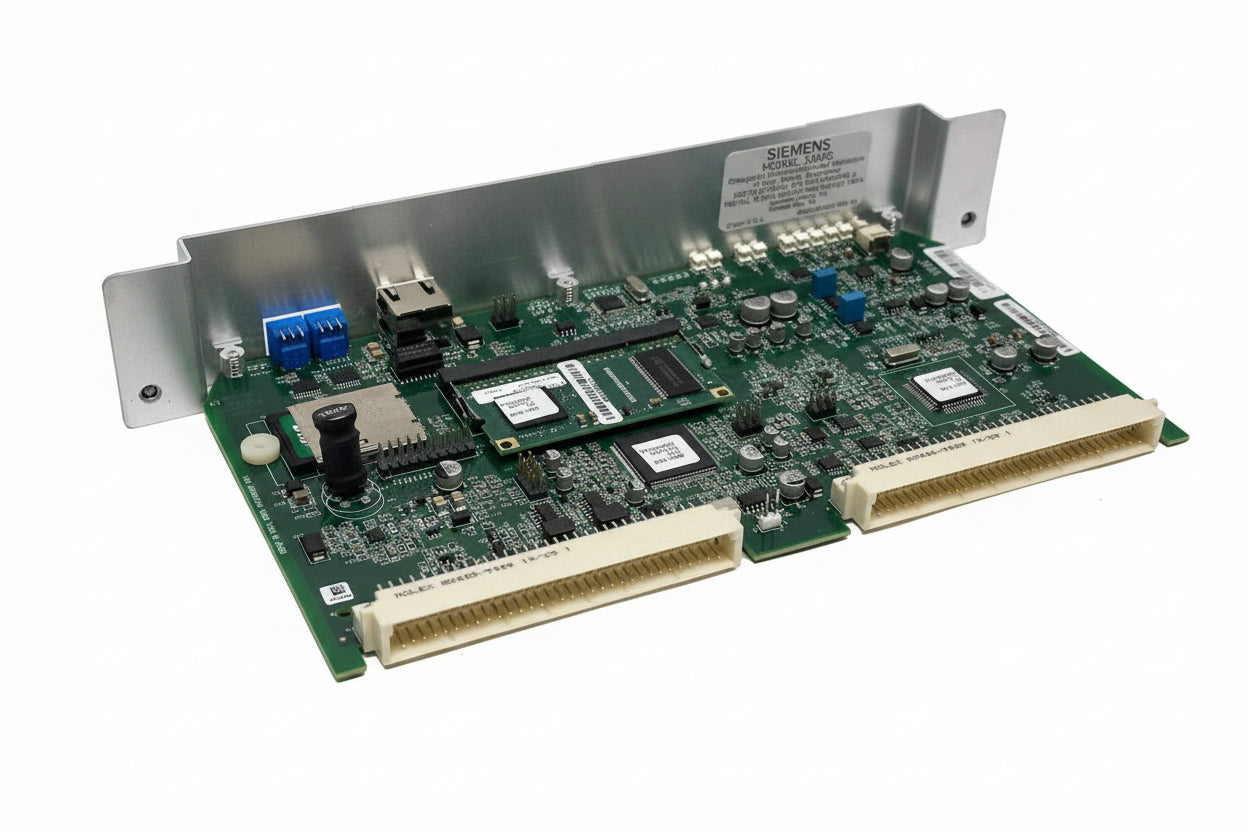

Siemens S54430-B5-A1 XDMC Fire Safety Digital Message Card
- Regular price
- $692.00
- Sale price
- $692.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S54430-B5-A1
Description
The Siemens S54430-B5-A1, model XDMC, is a Digital Message Card designed for automatic and manually activated voice messaging within compatible Siemens fire safety and emergency voice systems. It supports up to 300 configured messages, stores up to 100 minutes of phrases, and can simultaneously play two messages for distribution to designated speaker zones.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Alarm Systems |
| Part Number | S54430-B5-A1 |
| Subcategory | Digital Message Cards |
| Model | XDMC |
| Product Type | Digital Message Card |
| Compatible Systems | FireFinder XLSV, Desigo Fire Safety Modular, Cerberus PRO Modular |
| Message Capacity | Up to 300 messages |
| Message Storage | Up to 100 minutes of phrases |
| Simultaneous Messages | 2 |
| Activation Method | Internal system logic or SCM-8 switches |
| Mounting | One slot in CC-2 or CC-5 card cage |
| Supervision | Internal supervision through DAC-NET |
| Maximum Current Draw | 50 mA at 5 VDC |
| 24 V Backplane Current Draw | 140 mA |
| 6.2 V Backplane Current Draw | 120 mA + 20 mA per active channel |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | Up to 93% ±2% at 90°F (32°C) |
| Listing | UL 864 |
| Weight | 2 lb |
Information About S54430-B5-A1
The S54430-B5-A1 is a Siemens XDMC Digital Message Card used with FireFinder XLSV, Desigo Fire Safety Modular, and Cerberus PRO Modular voice system platforms. The card installs in one available slot of a compatible CC-2 or CC-5 card cage and communicates with the system's DAC-NET digital audio processor for internal supervision. Its onboard memory accommodates up to 100 minutes of recorded phrases that the system can assemble into as many as 300 event-specific messages. System logic can associate messages with fire or emergency events, assign them to individual speaker zones, and establish priorities for simultaneous or sequential voice instructions.
Key Features:
- 300-Message Capacity: Supports up to 300 automatic or manually activated audio messages within a compatible system.
- 100-Minute Storage: Provides onboard memory for up to 100 minutes of recorded message phrases.
- Dual Message Playback: Can reproduce two separate messages simultaneously for different system requirements.
- Zoned Voice Messaging: Allows event-specific messages to be directed to one or more designated speaker zones.
- Priority Control: Supports prioritized message operation so higher-priority emergency events can override existing announcements.
- System Logic Activation: Messages can be initiated through internal system programming or compatible SCM-8 switches.
- DAC-NET Supervision: Communicates with the main DAC-NET audio processor for internal card supervision.
- Card-Cage Installation: Occupies one slot in a compatible Siemens CC-2 or CC-5 card cage.
The S54430-B5-A1 delivers the reliability and precision required for event-driven digital voice messaging in fire alarm and emergency communication systems.
