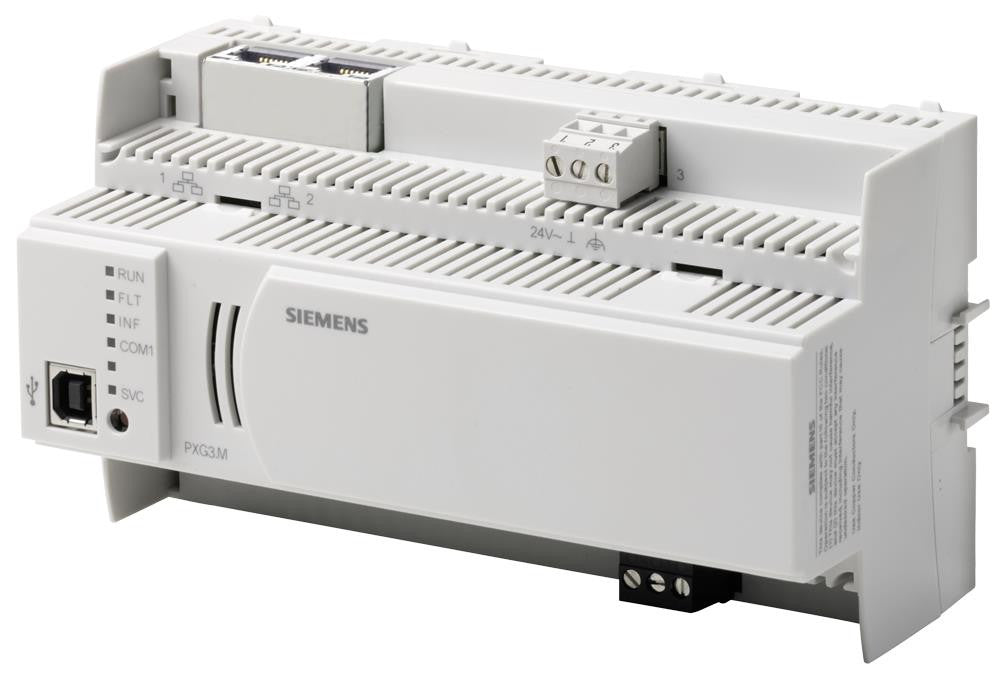

Siemens S55842-Z106-A101 Desigo PXG3.M BACnet Ethernet to MS/TP Router
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S55842-Z106-A101
Description
The Siemens S55842-Z106-A101 is a Desigo PXG3.M BACnet router designed to connect BACnet/IP and BACnet MS/TP networks within commercial building automation systems. It enables reliable routing of BACnet objects between Ethernet and RS-485 communication networks while supporting seamless interoperability among HVAC controllers and supervisory systems. The compact DIN rail-mounted design makes it well suited for new installations and retrofit building automation projects.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | S55842-Z106-A101 |
| Subcategory | PLC Module/Rack |
| Product Type | BACnet Router |
| Series | Desigo PXG3.M |
| Supported Protocols | BACnet/IP (IPv4 & IPv6), BACnet MS/TP |
| Ethernet Ports | 2 × 10/100 Base-T |
| MS/TP Interface | RS-485 |
| Power Supply | 24 VAC / 24 VDC |
| Frequency | 50/60 Hz |
| Protection Rating | IP20 |
| Configuration Software | Desigo Xworks Plus |
| USB Interface | Yes |
| Mounting | DIN Rail |
| Dimensions | 162 × 74 × 90 mm |
| Country of Origin | Switzerland |
| RoHS Compliance | Yes |
| Commodity Code | 85176200 |
| Weight | 0.31 kgs |
Information About S55842-Z106-A101
The S55842-Z106-A101 is part of the Siemens Desigo PXG3 series of BACnet routers developed for professional building management and HVAC automation applications. It supports BACnet/IPv4, BACnet/IPv6, and BACnet MS/TP communication, allowing controllers on different BACnet media to exchange data transparently without additional programming. The router features an integrated two-port Ethernet switch that simplifies network wiring using a line topology while reducing installation costs. Designed for use with Siemens Desigo automation stations and other BACnet-compliant devices, it provides reliable routing, configuration through Desigo Xworks Plus, and BTL-tested BACnet communication.
Key Features:
- BACnet Network Routing: Connects BACnet/IP networks directly to BACnet MS/TP field buses.
- Dual Ethernet Ports: Integrated 10/100 Base-T two-port switch simplifies network cabling.
- Native BACnet Support: Supports BACnet/IPv4, BACnet/IPv6, and BACnet MS/TP communications.
- BTL Certified: Complies with BACnet communication standards for interoperability.
- USB Service Interface: USB port enables commissioning, diagnostics, and maintenance.
- LED Status Indicators: Front-panel LEDs display communication and operating status.
- DIN Rail Installation: Compact housing allows fast mounting in standard control panels.
- Building Automation Integration: Compatible with Siemens Desigo PX automation stations and BACnet building management systems.
The S55842-Z106-A101 delivers the reliability and precision required for routing BACnet communications in commercial building automation and HVAC control networks.
