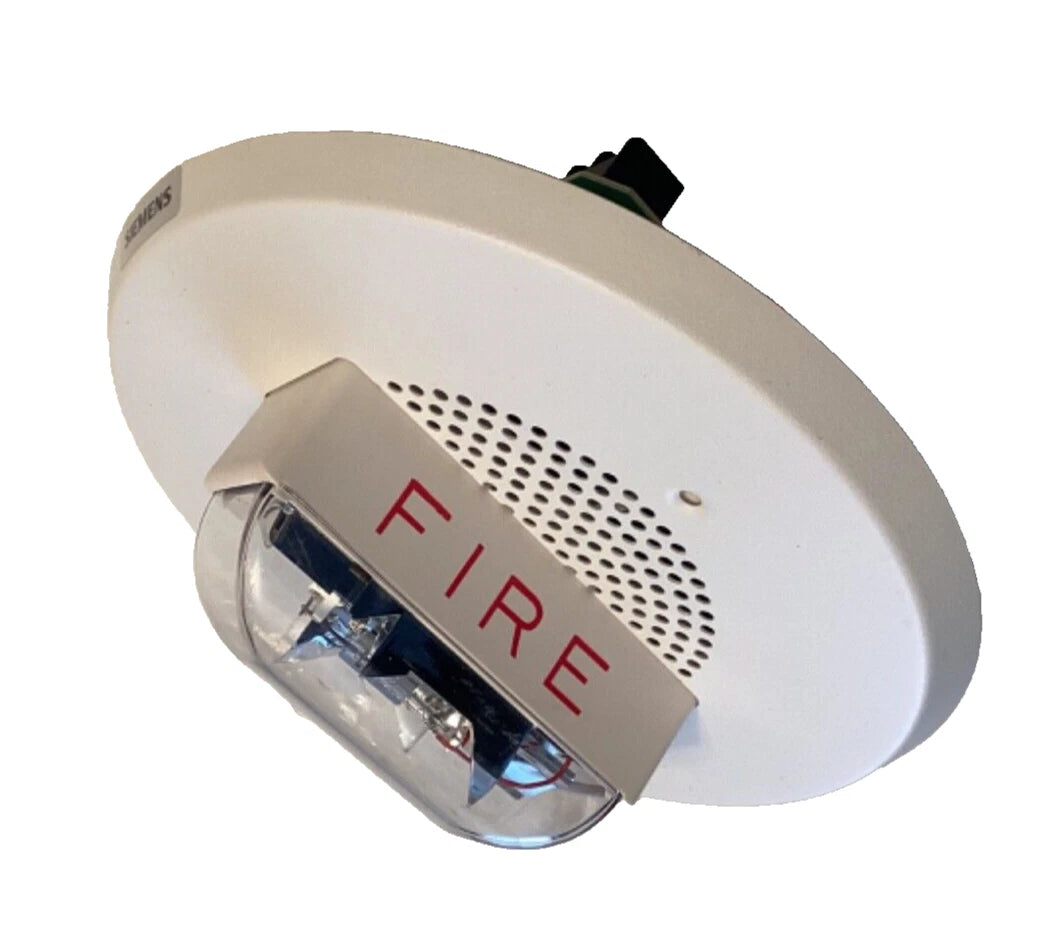

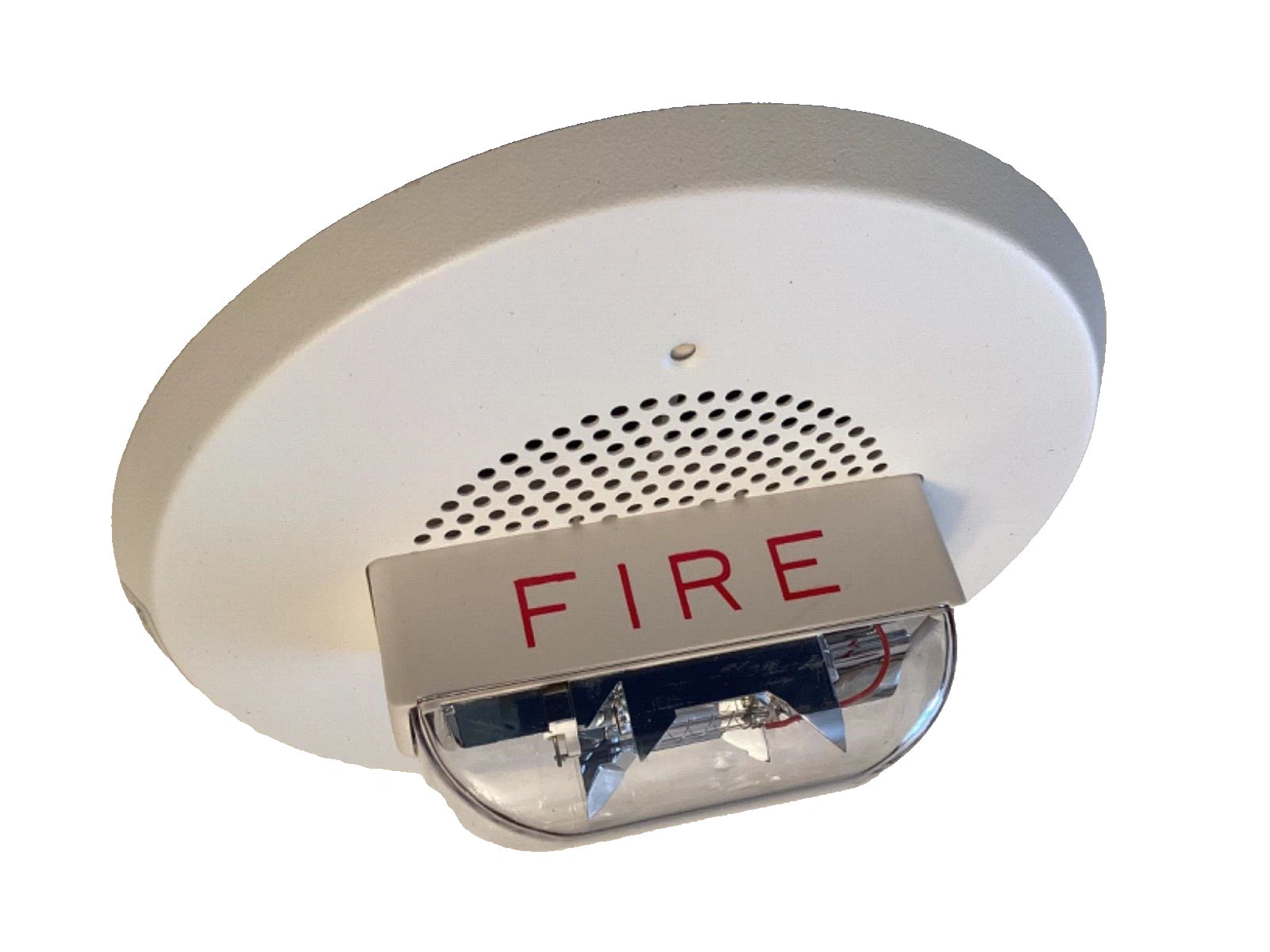

Siemens SEF-MC-CW Low-Profile Multi-Candela Fire Alarm Speaker Strobe
- Regular price
- $115.00
- Sale price
- $115.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SEF-MC-CW
Description
The Siemens SEF-MC-CW is a low-profile speaker strobe designed to provide audible and visual notification in compatible indoor fire alarm systems. It combines high-efficiency speaker output with a multi-candela Xenon strobe for applications requiring synchronized audible and visual emergency notification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Alarm |
| Part Number | SEF-MC-CW |
| Subcategory | Speaker Strobes |
| Product Series | SEF Series |
| Product Type | Low-Profile Speaker Strobe |
| Mounting Type | Indoor Surface or Flush Mount |
| Speaker Input Voltage | 25 or 70 VRMS, Field Selectable |
| Power Taps | 1/8 Watt to 2 Watts |
| Maximum Sound Output | Up to 87 dB at 10 ft |
| Frequency Response | 400 to 4000 Hz |
| Speaker Construction | Sealed Back |
| Strobe Type | MC Multi-Candela Xenon Strobe |
| Strobe Flash Rate | 1 Flash per Second |
| Strobe Intensity Settings | 15/30/75/110 cd |
| Candela Selector | Tamper-Resistant |
| Strobe Lens | Rugged Lexan® Lens |
| Synchronization | Designed for Compatible Synchronized Fire Alarm Systems |
| Terminal Wire Range | #12 to #18 AWG |
| Installation Terminals | In/Out Screw Terminals |
| Dimensions | 8 × 8 × 8 in |
| Weight | 5 lbs |
Information About SEF-MC-CW
The SEF-MC-CW is a Siemens SEF Series low-profile speaker strobe designed for indoor surface or flush mounting. The speaker supports field-selectable 25 or 70 VRMS operation with selectable power taps ranging from 1/8 Watt to 2 Watts. Its sealed-back construction and high-efficiency design provide audible output across a frequency response of 400 to 4000 Hz. The integrated MC multi-candela strobe uses a Xenon flash tube and tamper-resistant intensity selector for selectable visual notification.
Key Features:
- Combined Speaker Strobe: Provides audible and visual notification in a single appliance.
- Low-Profile Construction: Designed for installations where a compact surface appearance is required.
- Dual Voltage Operation: Supports field-selectable 25 or 70 VRMS speaker operation.
- Selectable Power Taps: Allows power selection from 1/8 Watt to 2 Watts.
- High-Efficiency Audio: Provides listed sound output of up to 87 dB at 10 feet.
- Wide Frequency Response: Operates across a listed frequency range of 400 to 4000 Hz.
- Multi-Candela Strobe: Supports selectable visual intensity settings for compatible wall-mount applications.
- Xenon Flash Technology: Produces one flash per second through a Xenon flash tube and rugged Lexan® lens.
The SEF-MC-CW delivers the reliability and precision required for audible and visual notification in indoor fire alarm and emergency communication systems.
