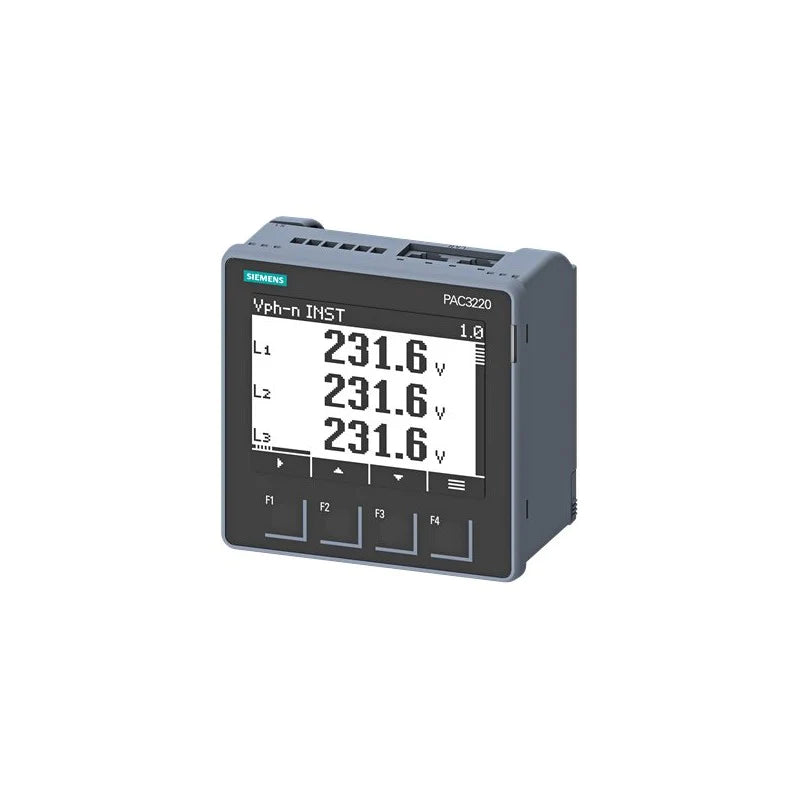

7KM3220-0BA01-1DA0 | Siemens SENTRON PAC3220 Power Monitoring Device, LCD 96×96 mm
- Regular price
- $614.00
- Sale price
- $614.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 7KM3220-0BA01-1DA0
Description
The Siemens 7KM3220-0BA01-1DA0 is a SENTRON PAC3220 power monitoring device engineered for precise measurement and analysis of electrical parameters in three-phase power systems. It provides real-time monitoring of voltage, current, frequency, power, and energy consumption, making it suitable for industrial panels, commercial buildings, and energy management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Power Monitoring Device |
| Part Number | 7KM3220-0BA01-1DA0 |
| Series | SENTRON PAC3220 |
| Display Size | 96 × 96 mm LCD |
| Meter Functions | Current, Voltage, Frequency, Power, Energy |
| Voltage Measurement Range | 11.5V to 480V |
| Current Input Range | 1A / 5A (CT input) |
| Frequency Range | 45–65 Hz |
| Supply Voltage | 100–250V AC |
| Accuracy | ±0.5%, ±0.2% depending on parameter |
| Amperage | 7–130 mA |
| Number of Inputs | 2 |
| Communication | Modbus TCP (Ethernet), Modbus RTU (RS-485) |
| Operating Temperature | -25°C to +55°C |
| Mounting Style | Panel mount (96 × 96 mm) |
Information About 7KM3220-0BA01-1DA0
The 7KM3220-0BA01-1DA0 is part of the Siemens SENTRON PAC2200 power monitoring device family, developed to provide reliable and cost-effective energy data acquisition. It supports three-phase measurement (3-phase, 4-wire systems) and measures key electrical parameters such as voltage, current, active/reactive/apparent power, power factor, and frequency. The device includes integrated Modbus RTU (RS-485) and Modbus TCP (Ethernet) interfaces for seamless communication with energy management or SCADA systems. It offers a Class 1 accuracy rating (per IEC 62053-21) for precise energy monitoring. The compact DIN rail–mountable design includes a backlit LCD display for local readings, and setup is done via web interface or configuration tools. Integrated alarm thresholds and event logging enhance system transparency and reliability.
Key Features:
- Design: Compact power monitoring device from the SENTRON PAC2200 series.
- Measurement: Measures voltage, current, power, power factor, frequency, and energy.
- Accuracy: Class 1 accuracy per IEC 62053-21 for reliable energy data.
- Communication: Integrated Modbus RTU (RS-485) and Modbus TCP (Ethernet).
- Display: Backlit LCD for local parameter visualization.
- Diagnostics: Configurable alarms and event logging functions.
- Installation: DIN rail–mountable design for easy panel integration.
- Application Range: Ideal for industrial energy management, building automation, and power distribution monitoring.
The 7KM3220-0BA01-1DA0 delivers the precision, communication, and reliability required for efficient energy monitoring in modern electrical installations.
