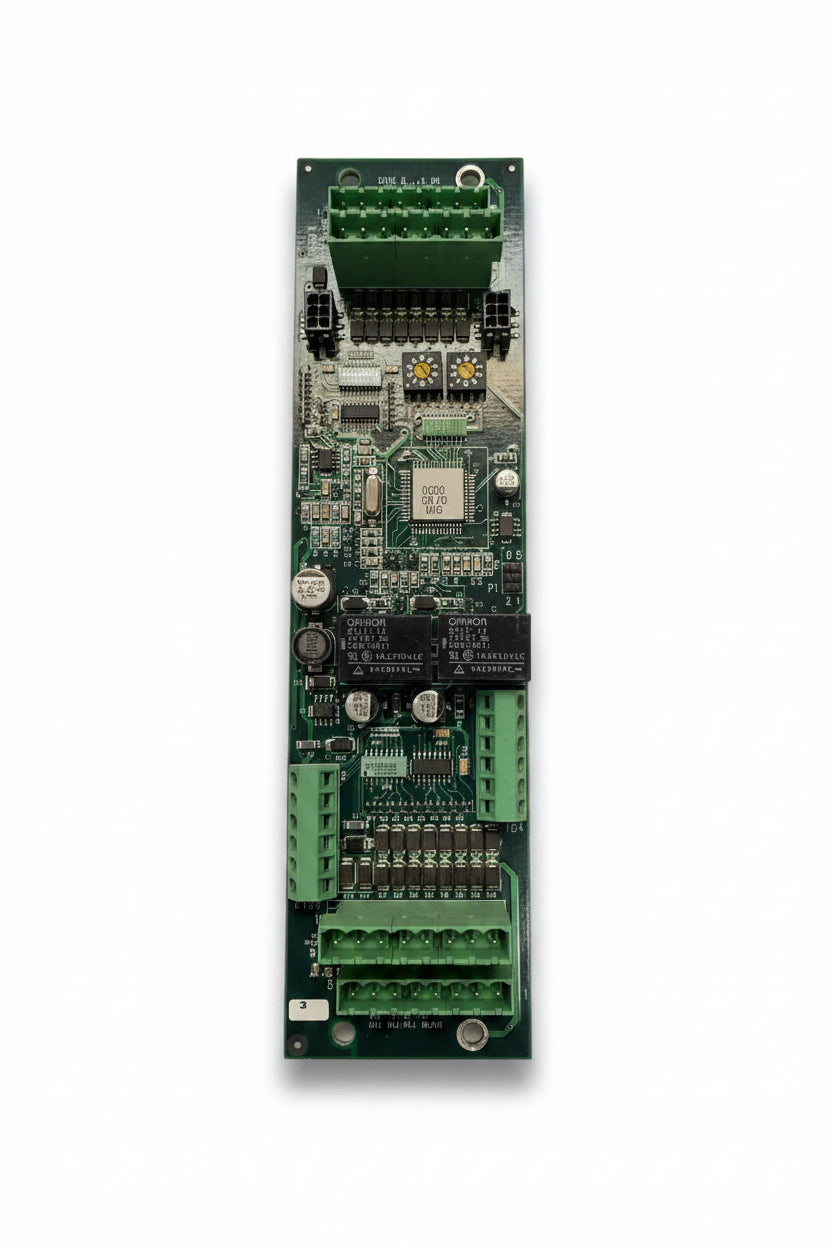

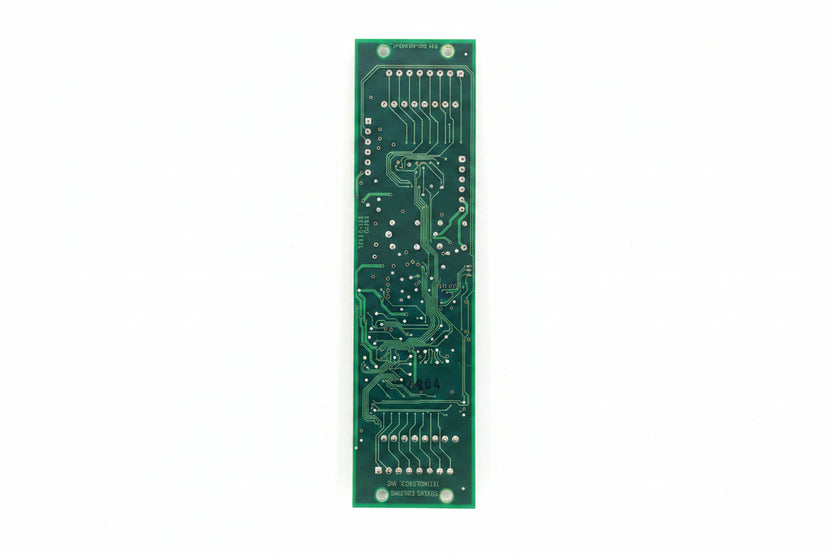

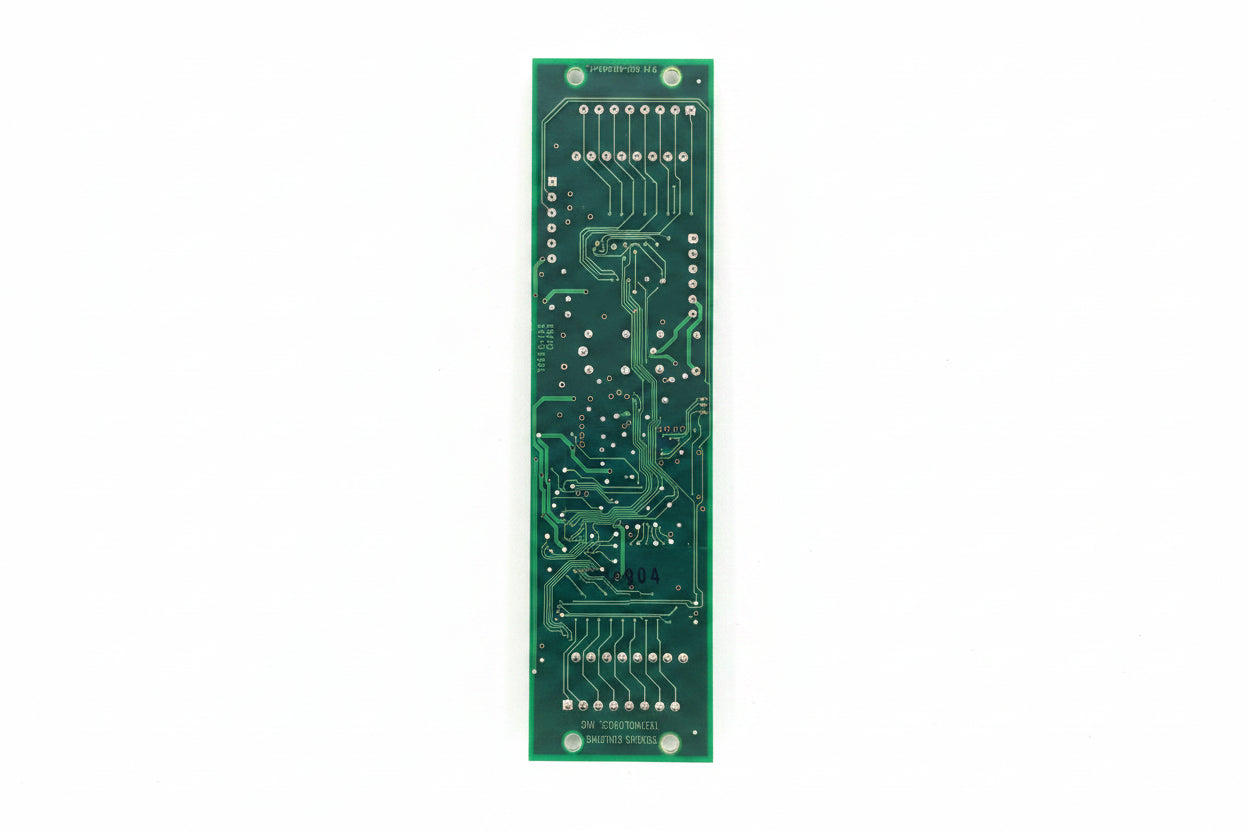

Siemens SIM-16 16-Input Supervised Fire Alarm Interface Module
- Regular price
- $409.00
- Sale price
- $409.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SIM-16
Description
The Siemens SIM-16 is a supervised input module designed to provide multi-point monitoring and relay control within compatible Siemens fire safety systems. It provides 16 individually programmable supervised or unsupervised inputs along with two Form C relays controlled through CAN communications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Alarm Systems |
| Part Number | SIM-16 |
| Subcategory | Supervised Input Modules |
| Product Type | Supervised Input Module |
| Number of Inputs | 16 |
| Input Programming | Individually Programmable as Supervised or Unsupervised |
| Input Circuit Type | Power Limited |
| Relay Outputs | 2 Form C Relays |
| Relay Control | CAN Messages from NIC-C |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Installation Environment | Indoor Dry Locations |
| Maximum Relative Humidity | 93% |
| Listings | UL 864, ULC-S576 |
| Approvals | FM, CSFM, NYC Fire Department |
| Dimensions | 4 × 15 × 4 in |
| Weight | 1 lb (0.45 kg) |
Information About SIM-16
The SIM-16 is a Siemens supervised input module designed for integration with compatible networked fire alarm control equipment. Its 16 input channels can be individually programmed for supervised or unsupervised operation, allowing different field monitoring requirements to be handled by a single module. Two onboard Form C relays are controlled by CAN messages from the NIC-C, providing additional system-controlled output capability. Power-limited input circuits and an operating range of 32°F to 120°F support installation in indoor dry fire alarm environments.
Key Features:
- 16 Input Channels: Provides 16 individually programmable field inputs for centralized monitoring.
- Selectable Supervision: Each input can be independently configured for supervised or unsupervised operation.
- Dual Form C Relays: Includes two Form C relay outputs for compatible system control functions.
- CAN Relay Control: Onboard relays receive control commands through CAN messages from the NIC-C.
- Power-Limited Circuits: Input circuits are power limited for compatible fire alarm field wiring applications.
- Indoor Operating Range: Rated for operation from 32°F to 120°F (0°C to 49°C) in dry indoor locations.
- Humidity Rating: Supports relative humidity levels up to 93% under specified operating conditions.
- Listed and Approved Design: Listed to UL 864 and ULC-S576 and approved by FM, CSFM, and the NYC Fire Department.
The SIM-16 delivers the reliability and precision required for multi-channel input supervision and relay control in compatible Siemens fire alarm systems.
