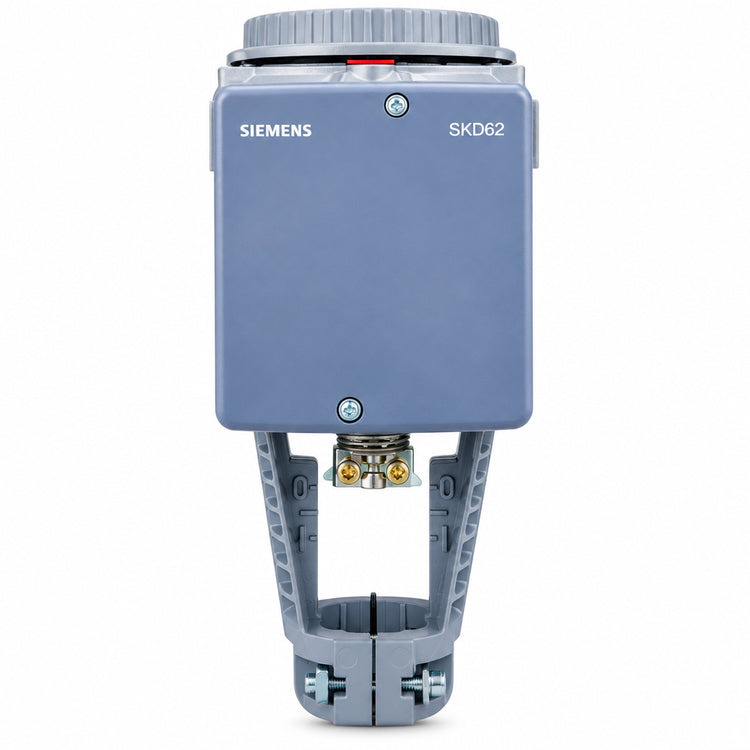

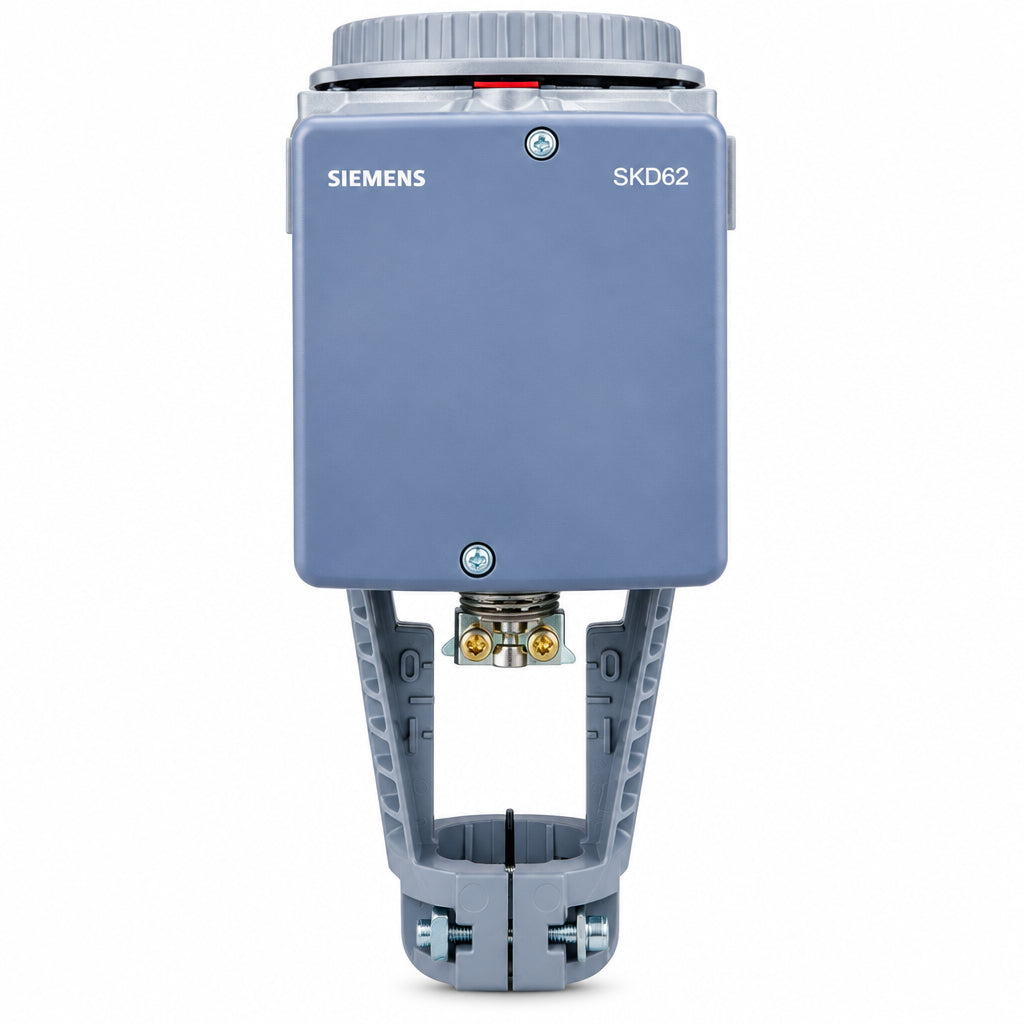

Siemens SKD62U Electro-Hydraulic Proportional Spring Return Valve Actuator
- Regular price
- $1,025.00
- Sale price
- $1,025.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SKD62U
Description
Siemens SKD62U is an electro-hydraulic valve actuator designed for proportional control of Flowrite and compatible HVAC valves. It operates on 24 VAC power, provides a 3/4-inch stroke, and incorporates spring-return functionality for controlled valve positioning in heating, ventilation, and air-conditioning systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC Controls |
| Part Number | SKD62U |
| Subcategory | Valve Actuators |
| Product Type | Electro-Hydraulic Valve Actuator |
| Application | Air Conditioning, Heating, Ventilation |
| Operating Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Control Type | Proportional |
| Positioning Signal | 0–10 VDC, 4–20 mA, 0–1000 Ohm |
| Position Feedback | 0–10 VDC, 4–20 mA, Adjustable |
| Return Action | Spring Return |
| Stroke | 20 mm (3/4 in) |
| Positioning Time | Open: 30 sec; Close: 15 sec |
| Power Consumption | 10 VA |
| Compatible Valve Series | VVF, VVG, VXF, VXG |
| Compatible Valve Body Pattern | Two-Way, Three-Way |
| Operating Ambient Temperature | 5°F to 122°F (-15°C to 50°C) |
| Degree of Protection | IP54 |
| NEMA Rating | NEMA 1 |
| Dimensions | 5 × 11.81 × 6.65 in |
| Weight | Not Specified |
Information About SKD62U
The SKD62U is a Siemens electro-hydraulic actuator designed for direct mounting on compatible two-way and three-way control valves. Its proportional control system accepts 0–10 VDC, 4–20 mA, and 0–1000 ohm positioning signals, allowing integration with different HVAC control configurations. The actuator is compatible with Siemens VVF, VVG, VXF, and VXG valve series and provides adjustable 0–10 VDC or 4–20 mA position feedback. Spring-return operation, IP54 protection, and a 20 mm stroke support dependable valve positioning in indoor HVAC applications.
Key Features:
- Electro-Hydraulic Operation: Provides powered linear positioning for compatible HVAC control valves.
- Proportional Control: Accepts 0–10 VDC, 4–20 mA, and 0–1000 ohm positioning signals.
- Spring Return Function: Provides automatic return action when actuator power is interrupted.
- Position Feedback: Supports adjustable 0–10 VDC and 4–20 mA feedback signals for position monitoring.
- 3/4-Inch Stroke: Provides a 20 mm linear stroke for compatible Flowrite and standard control valves.
- Fast Positioning: Opens in approximately 30 seconds and closes in approximately 15 seconds.
- Broad Valve Compatibility: Designed for compatible VVF, VVG, VXF, and VXG two-way and three-way valves.
- IP54 Protection: Enclosure provides protection against limited dust ingress and splashing water.
The SKD62U delivers the reliability and precision required for proportional valve positioning in HVAC heating, ventilation, and air-conditioning systems.
