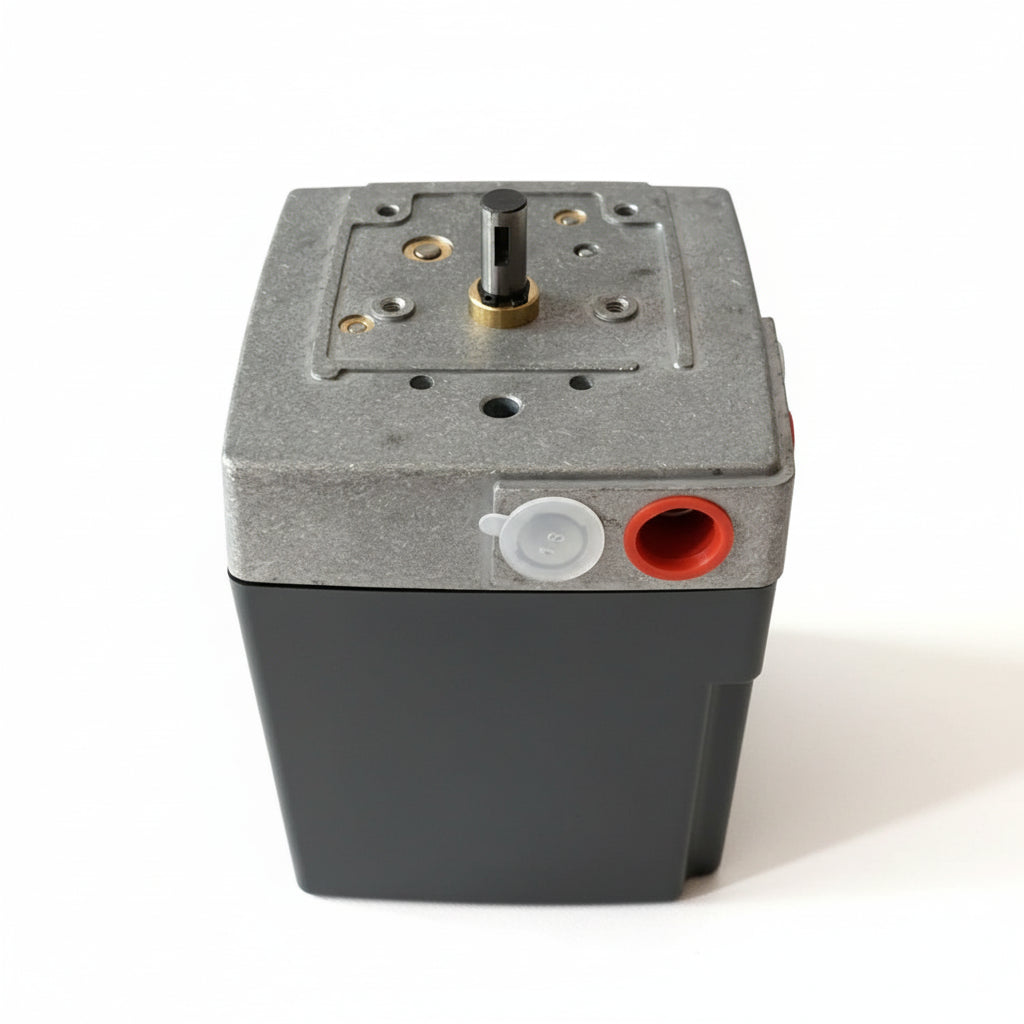

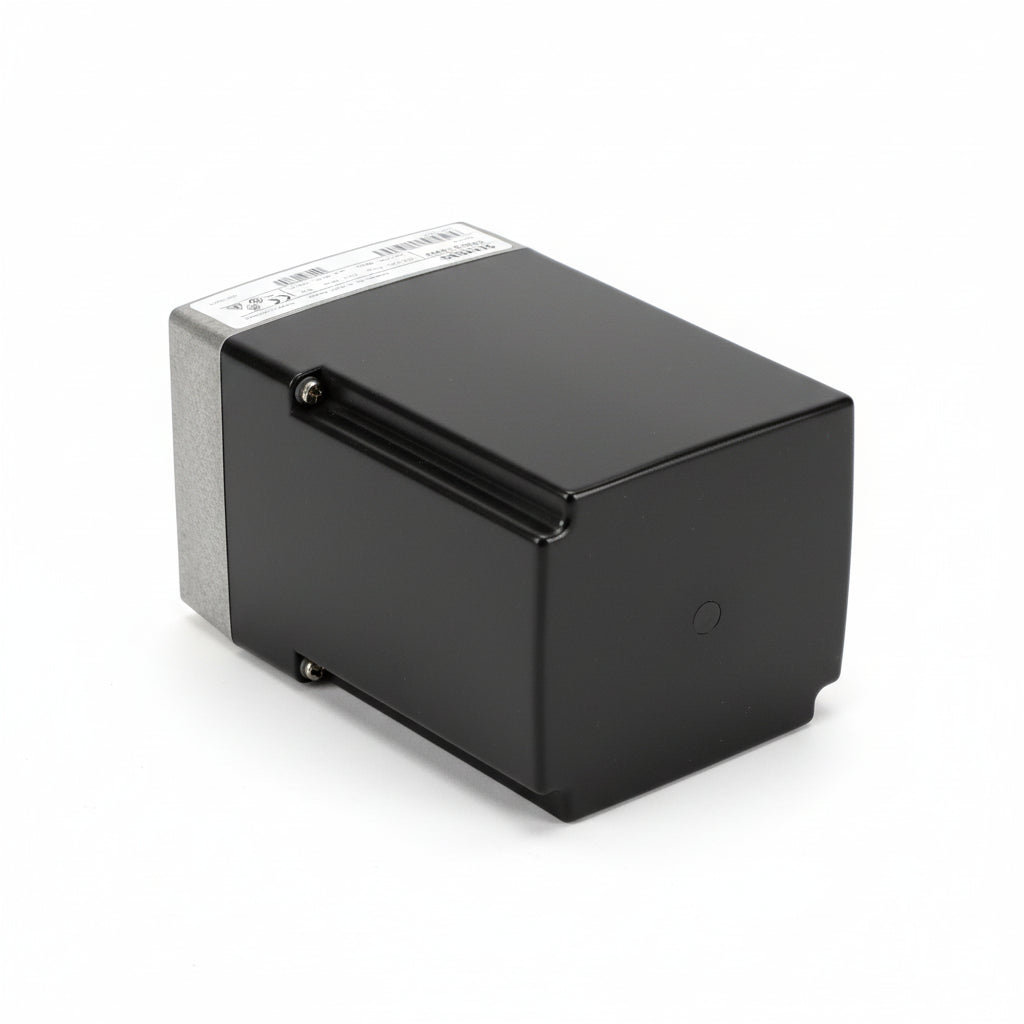

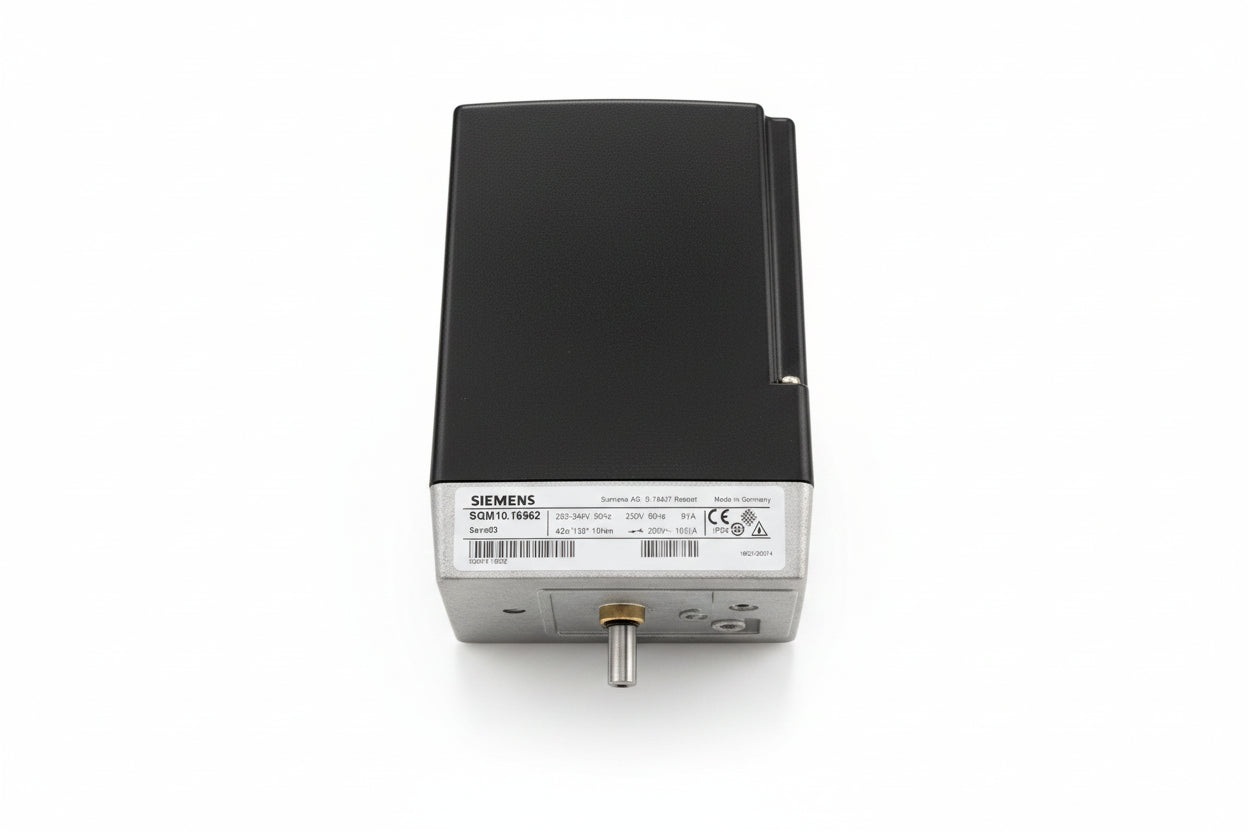

Siemens SQM10.16562 Rotary Actuator for Burner Control Systems
- Regular price
- $565.00
- Sale price
- $565.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQM10.16562
Description
The Siemens SQM10.16562 is an AC230V rotary actuator designed for positioning air dampers and control valves in oil and gas burner systems. It provides 10 Nm of nominal torque, counterclockwise rotation, and adjustable angular movement up to 160°, with defined running times of 29 seconds for 90° and 42 seconds for 130°.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Burner Control |
| Part Number | SQM10.16562 |
| Subcategory | Burner Actuators |
| Product Type | Rotary Actuator |
| Series | SQM10 |
| Operating Voltage | AC 220–240 V |
| Frequency | 50–60 Hz |
| Nominal Torque | 10 Nm |
| Starting Torque | 15 Nm |
| Holding Torque | 7 Nm |
| Drive Shaft Diameter | 10 mm |
| Running Time at 90° | 29 seconds at 50 Hz |
| Running Time at 130° | 42 seconds at 50 Hz |
| Angular Rotation | Up to 160° |
| Auxiliary Switches | 5 |
| Protection Rating | IP54 |
| Power Consumption | 9 VA |
| Rotation Direction | Counterclockwise |
| Weight | 1.7 kg |
Information About SQM10.16562
The SQM10.16562 is part of the Siemens SQM10 series of actuators for burner air and fuel-control applications. It uses a standard 10 mm drive shaft and operates from 220–240 V AC at 50/60 Hz. The actuator incorporates two limit switches and five adjustable auxiliary switches for position and control functions. Its IP54-rated construction includes a die-cast aluminum gear housing and impact-resistant plastic cover for industrial installation.
Key Features:
- Operating Voltage: 220–240 V AC for 50/60 Hz operation.
- Nominal Torque: Provides 10 Nm of rated operating torque.
- Starting Torque: Delivers 15 Nm of starting torque.
- Holding Torque: Provides 7 Nm of holding torque.
- Rotation Direction: Designed for counterclockwise rotation when viewed from the drive shaft.
- Angular Rotation: Supports an adjustment range of up to 160°.
- Auxiliary Switching: Includes five adjustable auxiliary switches for control and positioning.
- Protection Rating: IP54 protection according to DIN 40050.
The SQM10.16562 delivers the reliability and precision required for burner damper and control-valve positioning.
