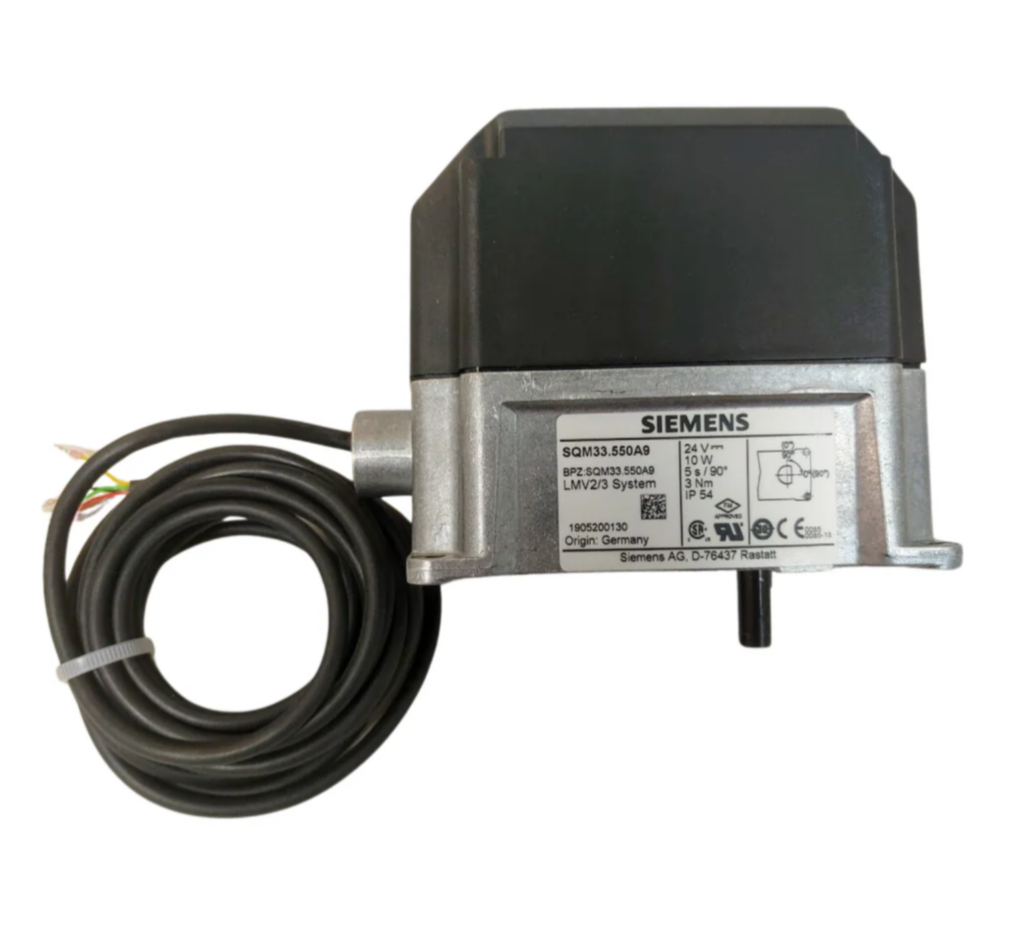

Siemens SQM33.550A9 24V Actuator for LMV3 Burner Control
- Regular price
- $1,145.00
- Sale price
- $1,145.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQM33.550A9
Description
The Siemens SQM33.550A9 is a 24V actuator designed for positioning applications in Siemens LMV3 burner control systems. It provides a maximum rated output torque of 2 Nm and counterclockwise driveshaft rotation when viewed from the driveshaft side. The actuator operates across a -20°C to 60°C temperature range and includes a 3.6 m connection cable.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC |
| Part Number | SQM33.550A9 |
| Subcategory | HVAC Actuator |
| Operating Voltage | 24 V |
| Rated Output Torque | 2 Nm max |
| Holding Torque, Power Not Applied | 2.6 Nm |
| Rotation Direction | Counterclockwise, when facing the driveshaft |
| Radial Load | 100 N max |
| Axial Load | 10 N max |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Cable Length | 3.6 m |
| Torque Reduction | Approx. 10% below -15°C and above 50°C |
| Weight | 4.00 lbs |
Information About SQM33.550A9
The SQM33.550A9 is an actuator intended for integration with Siemens LMV3 combustion control equipment. Its mechanical design provides defined holding and bearing load characteristics for controlled positioning within compatible burner systems. The actuator produces 3 Nm of holding torque with power applied and 2.6 Nm with power removed. It is supplied with a 3.6 m cable and is configured for counterclockwise rotation when facing the driveshaft.
Key Features:
- LMV3 Compatibility: Designed for use with Siemens LMV3 burner management and combustion control systems.
- 24V Operation: Uses a 24V operating supply for compatible control installations.
- 2 Nm Output Torque: Provides a maximum rated output torque of 2 Nm.
- 3 Nm Holding Torque: Provides up to 3 Nm holding torque when power is applied.
- 2.6 Nm Unpowered Holding: Maintains 2.6 Nm holding torque when power is not applied.
- Counterclockwise Rotation: Driveshaft rotates counterclockwise when viewed from the driveshaft side.
- 3.6 m Cable: Supplied with a 3.6 m cable for electrical connection.
- Temperature Range: Designed for operation from -20°C to 60°C (-4°F to 140°F).
The SQM33.550A9 delivers the reliability and precision required for LMV3 burner control and combustion positioning applications.
