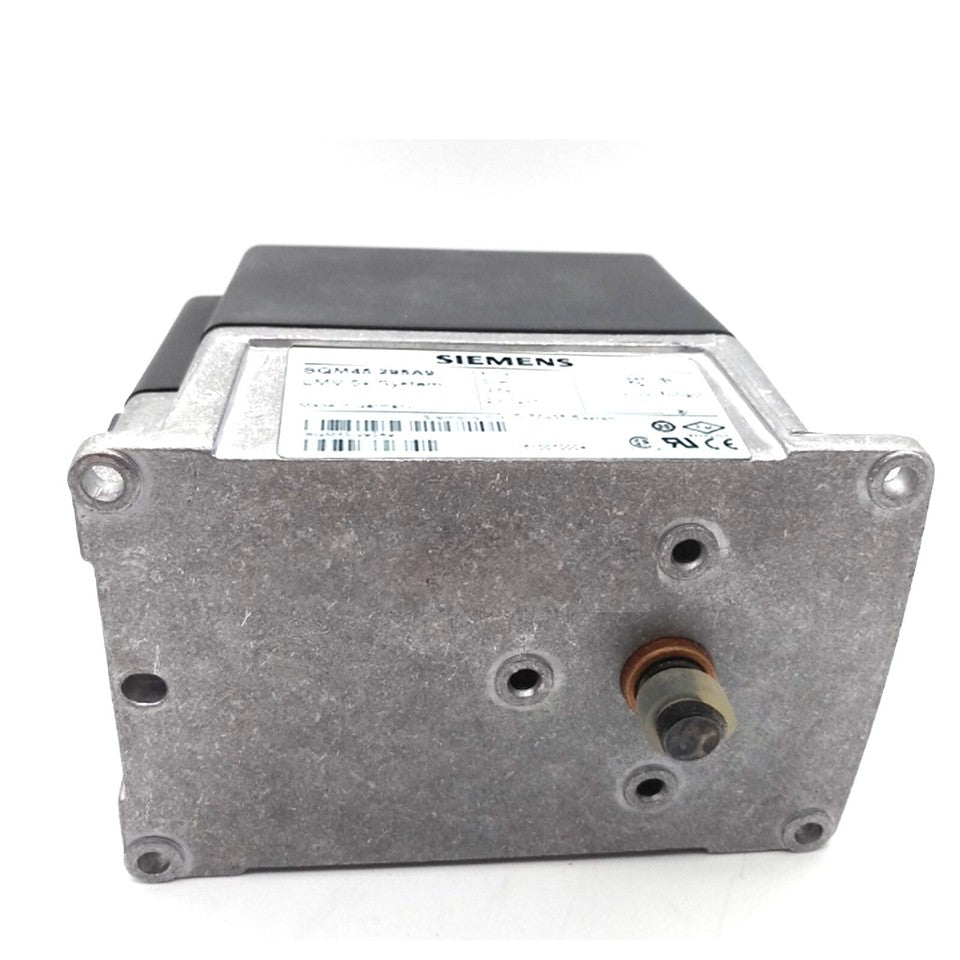

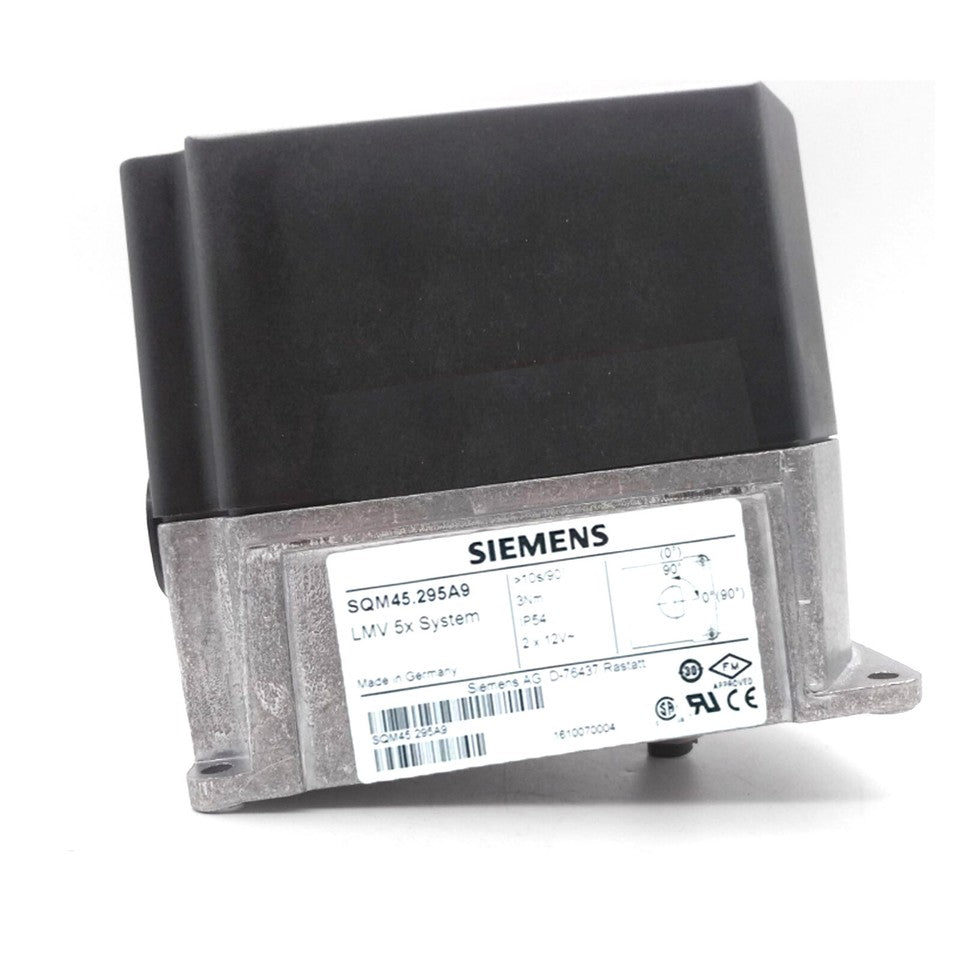

Siemens SQM45.295A9 27 in-lb Stepper Motor Rotary Actuator for HVAC Controls
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQM45.295A9
Description
The Siemens SQM45.295A9 is a stepper-motor actuator designed to provide controlled rotary motion for oil pressure controllers, butterfly valves, dampers, and similar equipment. It delivers 27 in-lb (3 Nm) of torque, supports up to 90° angular adjustment, and uses a 2 x 12V AC supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC |
| Part Number | SQM45.295A9 |
| Subcategory | HVAC Actuator |
| Actuator Type | Servo Motor / Rotary Actuator |
| Torque Output | 27 in-lb (3 Nm) |
| Operating Voltage | 2 x 12V AC |
| Angular Adjustment | Maximum 90° |
| Running Time | 10–120 seconds |
| Shaft | 10 mm Flat Shaft |
| Mounting | Face Mounting |
| Power Consumption | 9–15 VA |
| Degree of Protection | IP54 with adequate cable entries |
| Safety Class | III according to DIN EN 60730 Parts 1 and 2-14 |
| Weight | 2.20 lbs |
Information About SQM45.295A9
The SQM45.295A9 belongs to the Siemens SQM45 actuator series, which is designed for applications requiring precise rotary positioning. Its stepper motor drive provides controlled movement for compatible valves, dampers, and pressure-control devices. The actuator features face mounting and a 10 mm flat shaft for mechanical connection to the driven component. It has an IP54 degree of protection when suitable cable entries are used and is classified as Safety Class III according to DIN EN 60730.
Key Features:
- 27 in-lb Torque: Provides 27 in-lb (3 Nm) of available actuator torque.
- Stepper Motor: Uses a stepper motor for controlled rotary positioning.
- 2 x 12V AC Supply: Operates from 2 x 12V AC supplied through a bus cable or separate transformer.
- 90° Adjustment: Supports a maximum angular adjustment of 90 degrees.
- 10 mm Flat Shaft: Features a 10 mm flat shaft for mechanical connection.
- Face Mounting: Designed for face-mounted installation on compatible equipment.
- IP54 Protection: Provides IP54 protection when appropriate cable entries are installed.
- Broad Application Range: Suitable for oil pressure controllers, butterfly valves, dampers, and other rotary-motion applications.
The SQM45.295A9 delivers the reliability and precision required for controlled rotary motion in HVAC and industrial actuator applications.
