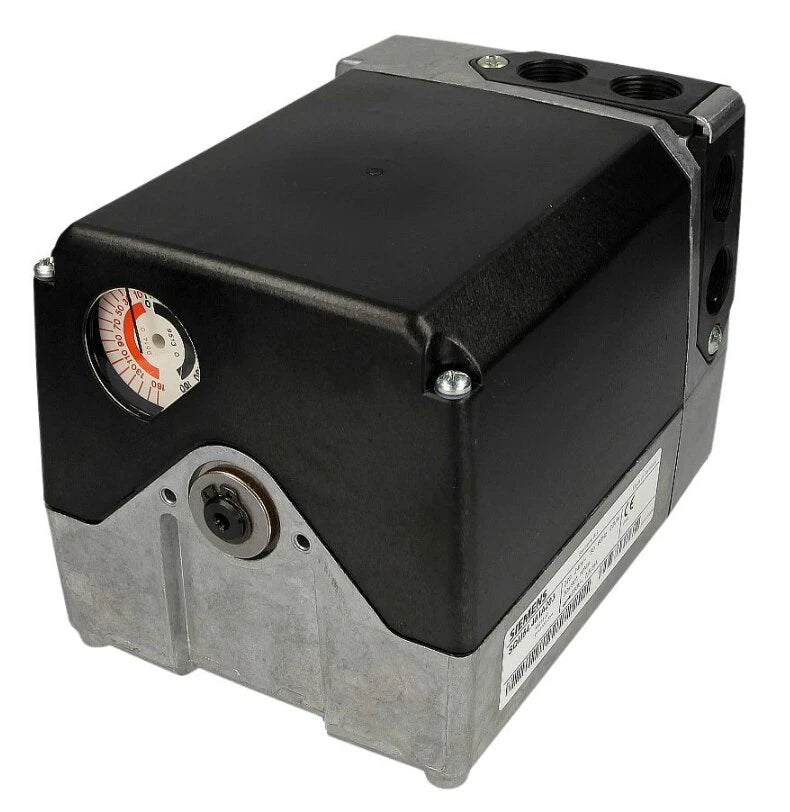

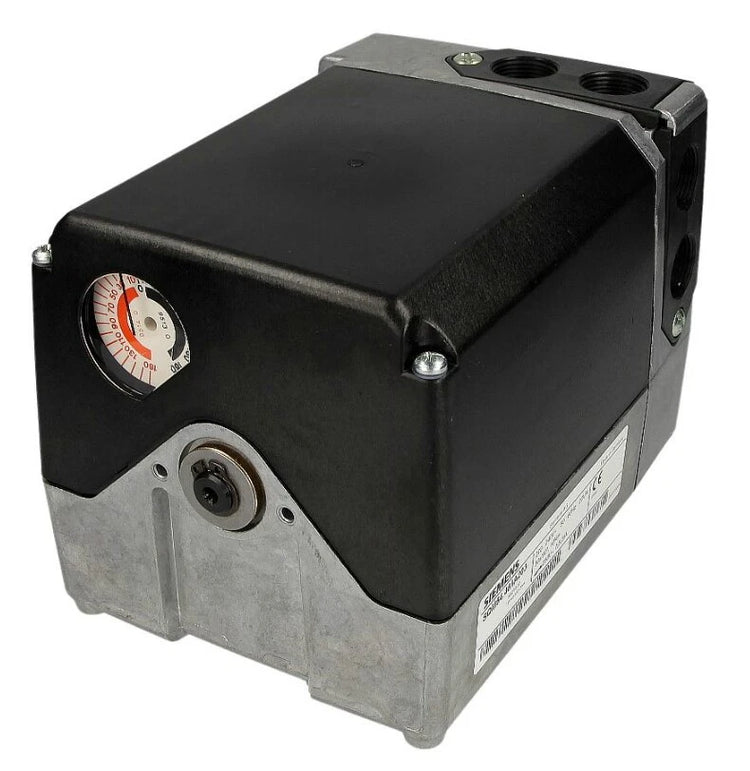

Siemens SQM50.364R1G3 Reversing Actuator 110V 90° Rotary Damper Motor
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQM50.364R1G3
Description
The Siemens SQM50.364R1G3 is a reversing actuator designed for precise rotary positioning of HVAC dampers, control valves, and butterfly valves. It operates at 110 V AC and provides 90 lb-in of torque with a 90-degree rotation time of 12 seconds at 60 Hz. The actuator includes limit and auxiliary switches for position control and system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC |
| Part Number | SQM50.364R1G3 |
| Subcategory | HVAC Actuators |
| Actuator Series | SQM5 |
| Operating Voltage | 110 V AC |
| Torque Output | 90 lb-in |
| Rotation | 90° |
| Run Time at 50 Hz | 15 seconds per 90° |
| Run Time at 60 Hz | 12 seconds per 90° |
| Shaft | 3/8-inch square, dual-ended |
| Control Input | Line voltage, 4–20 mA |
| Auxiliary Switches | 4 |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Approvals | UL, CSA |
| Application | Dampers, control valves, butterfly valves |
| Weight | 9.00 lbs |
Information About SQM50.364R1G3
The SQM50.364R1G3 is part of the Siemens SQM5 series of rotary actuators developed for modulating flow-control applications. Its dual-ended square shaft provides flexible mechanical mounting for compatible dampers and valves. The actuator supports line-voltage operation and 4–20 mA input control signals for integration with suitable control systems. Its switch configuration and reversible operation allow controlled positioning across the specified 90-degree operating range.
Key Features:
- Reversing Operation: Provides bidirectional rotary positioning for dampers, control valves, and butterfly valves.
- 110 V AC Operation: Designed for operation from a 110 V AC power supply.
- 90 lb-in Torque: Produces rated output torque of 90 lb-in for rotary flow-control applications.
- 12-Second Run Time: Completes a 90-degree rotation in 12 seconds at 60 Hz.
- Dual-Ended Shaft: Features a square 3/8-inch dual-ended shaft for flexible mechanical installation.
- Switch Configuration: Includes 2 limit switches and 4 adjustable auxiliary switches for control and position functions.
- Control Input: Accepts line voltage and 4–20 mA input control signals.
- Temperature Range: Designed for operation from -20°C to 60°C (-4°F to 140°F).
The SQM50.364R1G3 delivers the reliability and precision required for rotary damper and valve positioning in HVAC control applications.
