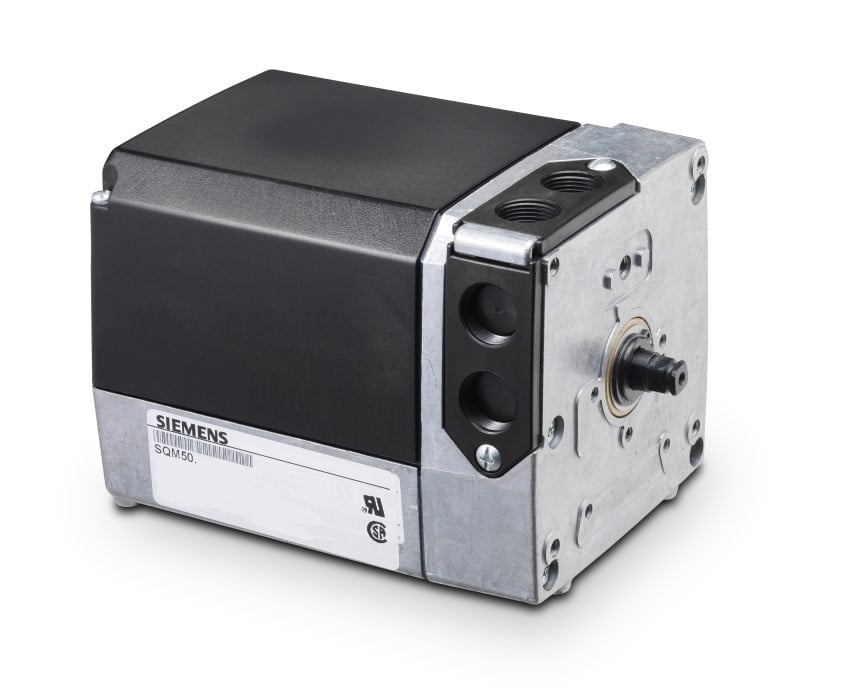

Siemens SQM50.464R1G3 110V 90-Degree Rotary Control Valve Actuator
- Regular price
- $3,499.00
- Sale price
- $3,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQM50.464R1G3
Description
The Siemens SQM50.464R1G3 is a 110V AC reversing actuator designed for precise rotary control of dampers, control valves, and butterfly valves. It provides 90-degree rotation with counterclockwise operation and a 25-second running time at 60 Hz.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | HVAC |
| Part Number | SQM50.464R1G3 |
| Subcategory | HVAC Actuator |
| Series | SQM5 |
| Actuator Type | Rotary Control Valve / Damper Actuator |
| Operating Voltage | 110–120V AC |
| Control Signal | 4–20 mA |
| Rotation | 90° |
| Rotation Direction | Counterclockwise |
| Torque Output | 140 lb-in |
| Running Time at 50 Hz | 30 seconds / 90° |
| Shaft | 3/8-inch Square, Dual-Ended |
| Auxiliary Switches | 4 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Weight | 3.00 lbs |
Information About SQM50.464R1G3
The SQM50.464R1G3 belongs to the Siemens SQM5 series of rotary actuators used in HVAC and industrial flow-control systems. It features a square dual-ended shaft and is designed for direct mechanical connection to compatible dampers and valves. The actuator accepts line voltage and 4–20 mA control signals for modulating applications. Its adjustable switching configuration supports limit and auxiliary switching functions for controlled equipment operation.
Key Features:
- 110V AC Operation: Designed for 110–120V AC electrical supply.
- 90-Degree Rotation: Provides quarter-turn movement for dampers and rotary valves.
- 140 lb-in Torque: Delivers the rotational force required for compatible flow-control equipment.
- 4–20 mA Input: Accepts a standard analog control signal for modulating operation.
- Dual-Ended Shaft: Uses a square 3/8-inch dual-ended shaft for mechanical connection.
- Counterclockwise Rotation: Rotates counterclockwise when viewed from the driveshaft.
- Fast Running Time: Completes 90-degree rotation in 25 seconds at 60 Hz and 30 seconds at 50 Hz.
- Switching Functions: Includes 2 limit switches and 4 auxiliary switches for control and feedback applications.
The SQM50.464R1G3 delivers the reliability and precision required for rotary damper, valve, and flow-control applications.
