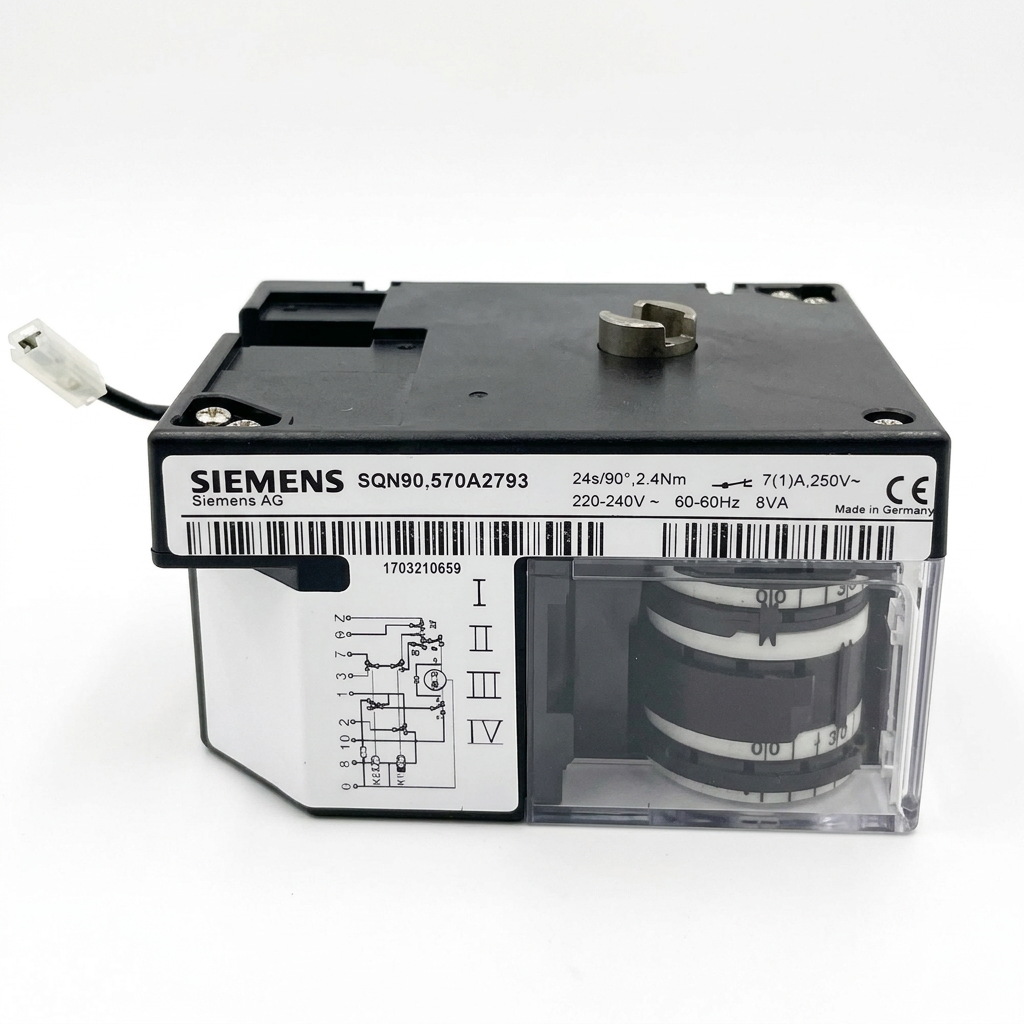

Siemens SQN90.570A2793 Burner Damper Servo Actuator
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQN90.570A2793
Description
The Siemens SQN90.570A2793 is an electric servo actuator for positioning air dampers in compatible burner systems. Its geared drive coordinates damper movement with the burner’s control sequence to regulate combustion airflow.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Burner Controls |
| Part Number | SQN90.570A2793 |
| Subcategory | Burner Damper Actuators |
| Series | SQN90 / SQN9 |
| Actuator Type | Electric rotary servo actuator |
| Application | Compatible burner damper positioning |
| Drive Motor | Synchronous motor |
| Power Consumption | 8 VA |
| Mains Frequency | 50–60 Hz ±6% |
| Maximum Angular Adjustment | 90° |
| Position Scale | 0–90° |
| Electrical Connections | Screw terminals |
| Conductor Size | 0.5–2.5 mm² |
| Safety Class | Class II to DIN EN 60730 |
| Cam Adjustment | Infinitely adjustable |
| Operating Temperature | −20°C to 60°C (−4°F to 140°F) |
| Operating Humidity | Below 95% RH; condensation, icing, and water ingress prohibited |
| Weight | 0.55 kg (1.21 lb) |
Information About SQN90.570A2793
The SQN90.570A2793 is part of the Siemens SQN9 family of burner damper actuators. A synchronous motor drives the output shaft and switching camshaft through a maintenance-free gear train. Adjustable cams establish the operating points of the end and auxiliary switches. The assembly includes position indication and screw terminals within an impact-resistant, heat-resistant plastic housing.
Key Features:
- Burner Damper Positioning: Operates compatible air dampers as part of the burner control arrangement.
- Synchronous Motor: Provides geared rotary movement for the connected damper mechanism.
- Power Consumption: Has a specified apparent power consumption of 8 VA.
- Angular Adjustment: Supports adjustment within a maximum 90° travel range.
- Adjustable Switching Cams: Allows switching points to be set within the working range.
- Position Indication: Provides a visual reference for actuator position during setup.
- Screw-Terminal Wiring: Accepts conductors with cross-sectional areas from 0.5 to 2.5 mm².
- Maintenance-Free Gear Train: Uses a geared transmission that does not require routine lubrication.
The SQN90.570A2793 delivers the reliability and precision required for coordinated combustion-air damper positioning in compatible burner systems.
