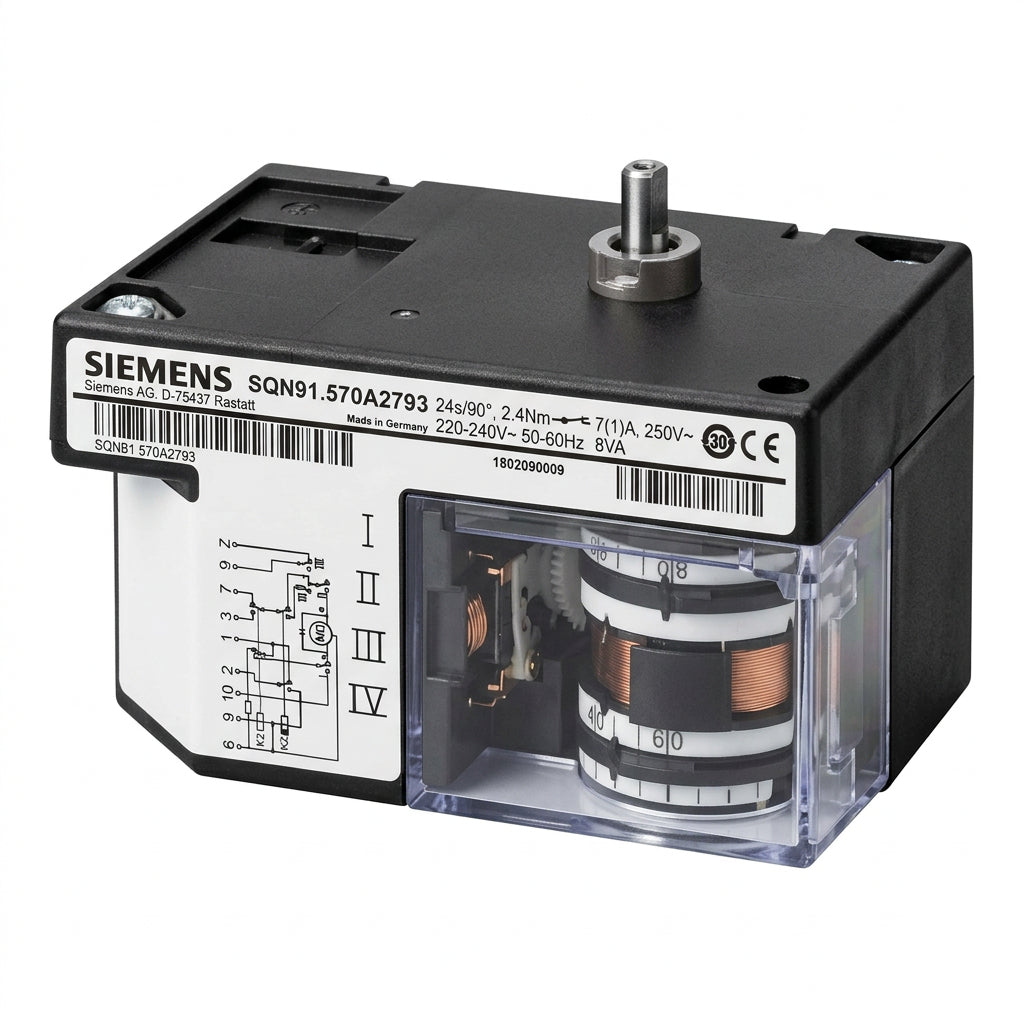

Siemens SQN91.570A2793 Burner Damper Servo Actuator
- Regular price
- $882.00
- Sale price
- $882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SQN91.570A2793
Description
The Siemens SQN91.570A2793 is an electric servo actuator for positioning air or gas dampers in compatible burner equipment. It provides 2.4 N·m of torque with clockwise rotation and a running time of 24 seconds through 90° at 50 Hz.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Burner Controls |
| Part Number | SQN91.570A2793 |
| Subcategory | Burner Damper Actuators |
| Series | SQN91 / SQN9 |
| Actuator Type | Electric rotary servo actuator |
| Application | Compatible burner air and gas dampers |
| Supply Voltage | AC 220 V −15% to AC 240 V +10% |
| Mains Frequency | 50–60 Hz ±6% |
| Power Consumption | 8 VA |
| Drive Motor | Synchronous motor |
| Nominal / Starting Torque | 2.4 N·m (approximately 21.2 lb-in) |
| Running Time | 24 seconds per 90° at 50 Hz |
| Rotation Direction | Clockwise, viewed facing the drive shaft at the specified starting position |
| Maximum Angular Adjustment | 90° |
| Electrical Connections | Screw terminals; 0.5–2.5 mm² conductors |
| Safety Class | Class II to DIN EN 60730 |
| Operating Conditions | −20°C to 60°C; below 95% RH, without condensation |
| Weight | 0.55 kg (1.21 lb) |
Information About SQN91.570A2793
The SQN91.570A2793 is part of the Siemens SQN9 burner actuator family. Its synchronous motor operates the output shaft and camshaft through a geared transmission. Adjustable switching cams establish the positions required by the connected burner control sequence. Screw terminals and an internal position indicator support wiring and mechanical setup.
Key Features:
- Burner Control Application: Positions compatible dampers used to regulate combustion air or gas flow.
- Clockwise Rotation: Turns clockwise when viewed facing the drive shaft at the specified starting position.
- Defined Output Torque: Provides nominal and starting torque of 2.4 N·m.
- Timed Angular Movement: Completes 90° travel in 24 seconds at 50 Hz.
- AC Supply: Uses the 220–240 VAC supply configuration specified for this model.
- Adjustable Switching Points: Allows cam settings to match the required operating sequence.
- Position Indication: Provides a visual reference for checking actuator position.
- Screw-Terminal Connections: Accommodates conductors from 0.5 to 2.5 mm².
The SQN91.570A2793 delivers the reliability and precision required for coordinated damper movement in compatible burner control systems.
