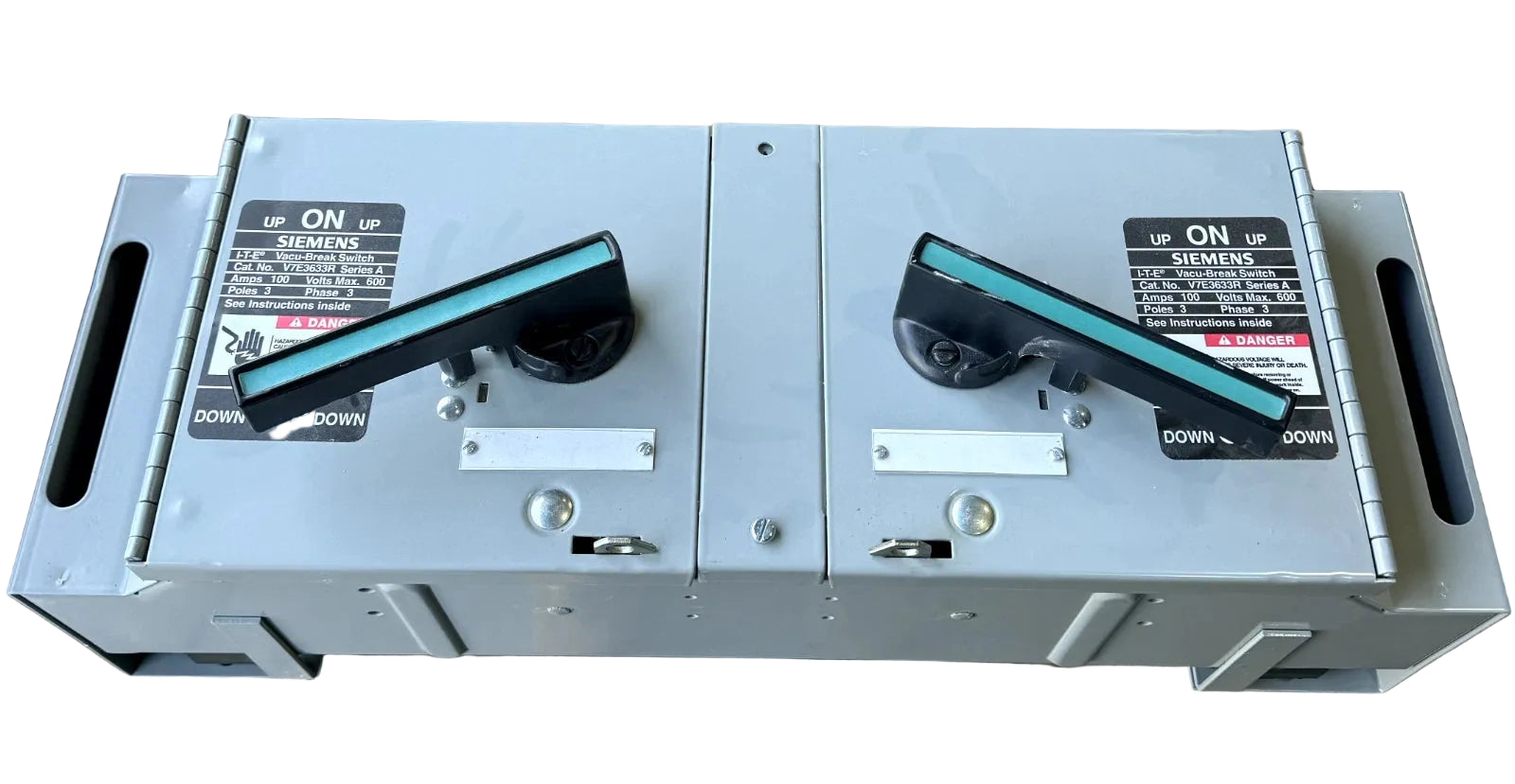

Siemens V7E3633R Vacu-Break 100A 600V 3-Pole Fused Disconnect Switch Panel Mount
- Regular price
- $2,232.00
- Sale price
- $2,232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V7E3633R
Description
The Siemens V7E3633R is a Vacu-Break 3-pole fused disconnect switch designed for safe power isolation in industrial distribution systems. Rated at 100 amps and 600 VAC, it provides reliable circuit protection with a high interrupting capacity of 200 kAIC. This unit is engineered for panelboard and switchboard integration in demanding electrical applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | V7E3633R |
| Subcategory | Disconnect Switches |
| Series | Vacu-Break |
| Type | VB Fused Disconnect Switch |
| Amperage Rating | 100 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 200 kAIC at 480V |
| Mounting Type | Panel / Inside Panelboard |
| Enclosure Type | NEMA 1 |
| Fuse Type | Class R |
| Configuration | Dual / Twin |
| Frequency Rating | 60 Hz |
| Temperature Rating | -20°F to 120°F |
| Dimensions (H x W x D) | 7.5 x 17 x 6.75 in |
| Weight | Approx. 6.5 kg |
Information About V7E3633R
The V7E3633R is part of the Siemens Vacu-Break series, known for robust performance in power distribution and motor control systems. It features a dual/twin fusible configuration, allowing for flexible branch circuit protection within panelboards and switchgear assemblies. Designed for installation inside SB1 and SB2 switchboards as well as F1 and F2 panelboards, it integrates seamlessly into Siemens distribution systems. With a NEMA 1 enclosure and panel-mounted design, it is suitable for indoor industrial environments requiring dependable disconnect functionality and high fault current protection.
Key Features:
- Fused Disconnect Switch: Provides safe circuit isolation with integrated fuse protection
- 3-Pole Configuration: Suitable for three-phase electrical systems
- 100 Amp Rating: Supports medium-duty industrial power distribution
- 600 VAC Voltage Rating: Compatible with high-voltage applications
- High Interrupting Capacity: Rated at 200 kAIC at 480V for fault protection
- Vacu-Break Series Design: Ensures reliable switching and durability
- Dual/Twin Configuration: Supports double branch unit applications
- Panelboard Mounting: Designed for installation inside switchboards and panelboards
- NEMA 1 Enclosure: Suitable for indoor use with basic environmental protection
- Class R Fuse Compatibility: Supports high-performance fuse protection
- Wide System Compatibility: Works with SB1, SB2, F1, F2, Clampmatic, and Vacu-Break systems
- Compact Form Factor: 17-inch width for efficient panel integration
The V7E3633R delivers the reliability and precision required for safe power disconnection and circuit protection in industrial electrical distribution systems.
