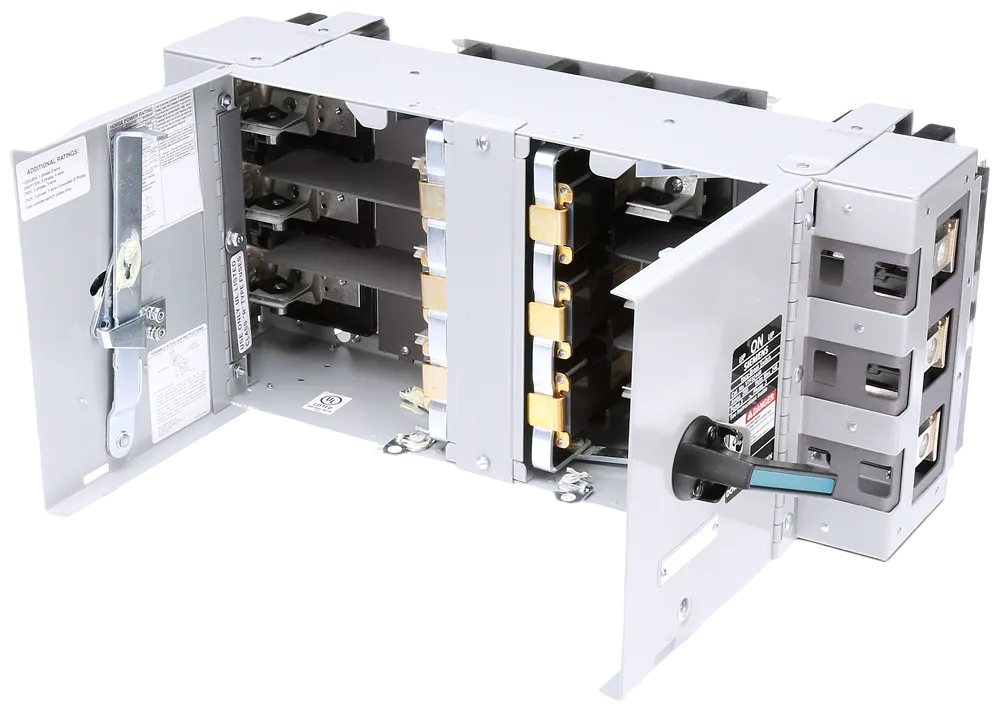

Siemens V7F3244R 200A Fusible Panelboard Switch
- Regular price
- $7,599.00
- Sale price
- $7,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V7F3244R
Description
The Siemens V7F3244R is a 3-pole, fusible panelboard switch designed for electrical power distribution and circuit isolation in commercial and industrial installations. It is rated for 200 A at 240 V AC and accepts Class R fuses. The switch is part of the Siemens/ITE Vacu-Break family and is designed for compatible panelboards and switchgear distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Power Distribution |
| Part Number | V7F3244R |
| Subcategory | Fusible Panelboard Switches |
| Product Family | Vacu-Break V7F |
| Switch Type | Fusible Panelboard Switch |
| Rated Current | 200 A |
| Rated Voltage | 240 V AC |
| Number of Poles | 3 |
| Phase | 3-phase |
| Fuse Class | Class R |
| Interrupting Rating | 200 kA at 240 V, subject to specified conditions |
| Configuration | Dual/Twin |
| Mounting Type | Panel mount |
| Compatible Equipment | Compatible Siemens/ITE panelboards and switchgear |
| Weight | 16.8 kg |
Information About V7F3244R
The Siemens V7F3244R belongs to the Vacu-Break V7F series of panelboard switches. It is designed to disconnect electrical loads and provide fuse-based overcurrent protection when fitted with the appropriate compatible fuses. The switch supports three-phase power distribution and is intended for compatible Siemens/ITE panelboards and switchgear assemblies. Proper fuse selection and installation must follow the equipment ratings and applicable electrical codes.
Key Features:
- 200 A Current Rating: Designed for electrical distribution applications with a rated current of 200 amperes.
- 240 V AC Rating: Suitable for compatible 240 V AC power distribution systems.
- Three-Pole Configuration: Supports switching of three-phase electrical circuits.
- Fusible Design: Uses compatible fuses to provide overcurrent protection.
- Class R Fuse Compatibility: Designed to accept Class R fuses.
- High Interrupting Rating: Listed with a 200 kA interrupting rating at 240 V, subject to the specified fuse and system conditions.
- NEMA 1 Enclosure: Intended for compatible indoor electrical panel installations.
- Vacu-Break Series: Designed for compatible Siemens/ITE panelboards and switchgear distribution systems.
The Siemens V7F3244R provides fused switching and circuit isolation for compatible commercial and industrial power distribution systems.
