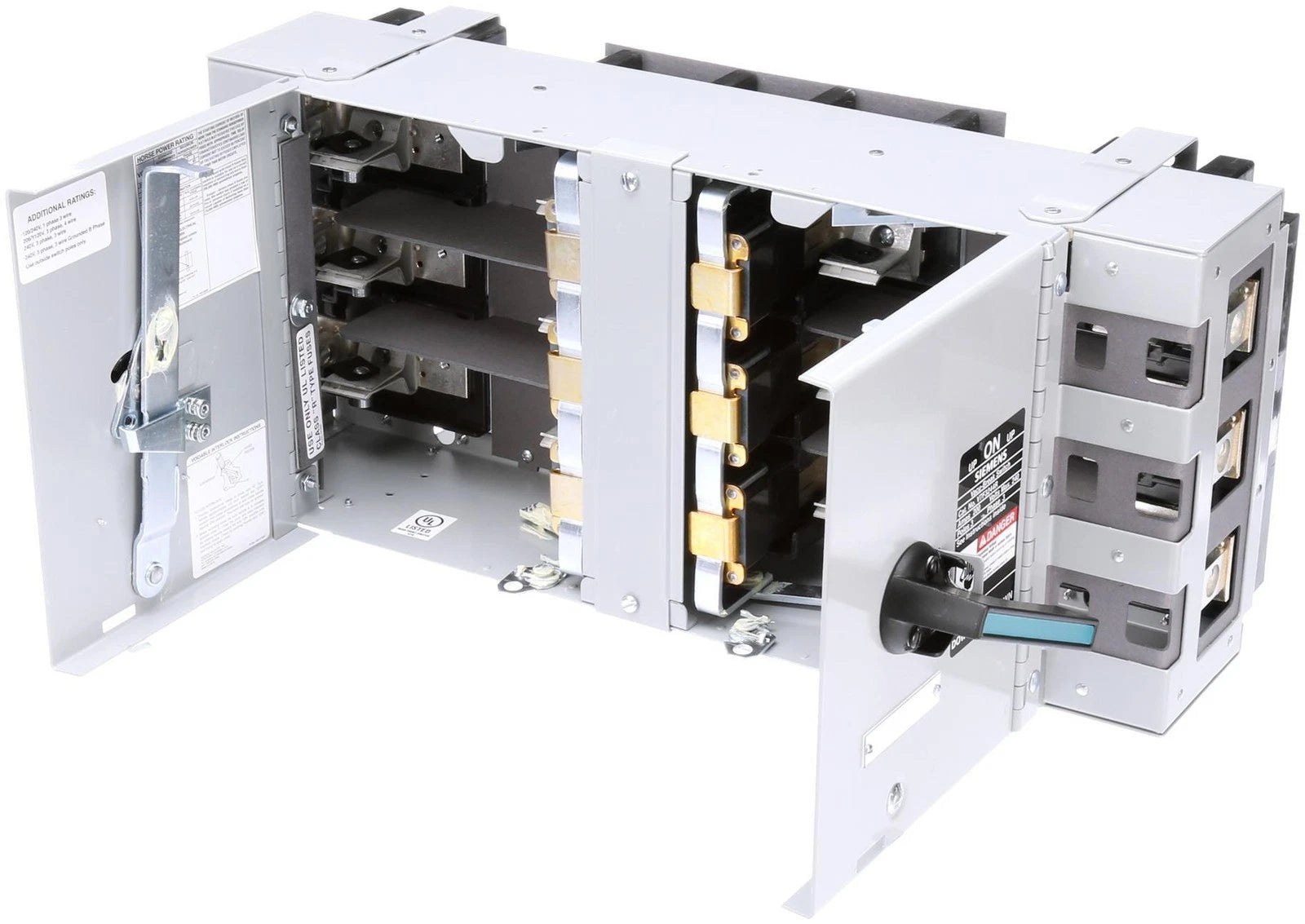

Siemens V7F3604 Vacu-Break 200 Ampere 3-Pole 600 Volt Fusible Disconnect Switch
- Regular price
- $2,685.00
- Sale price
- $2,685.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V7F3604
Description
The Siemens V7F3604 is a Vacu-Break fusible disconnect switch rated for 200 amperes, 600 volts alternating current, and three-pole, three-phase electrical systems. Designed as a 17-inch panel-mounted unit, it provides manual circuit isolation and overcurrent protection when equipped with compatible fuses in industrial panelboards and switchgear distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Panel Accessories |
| Part Number | V7F3604 |
| Subcategory | Disconnect Switch |
| Product Type | Fusible Panel-Mount Disconnect Switch |
| Product Family | Vacu-Break |
| Type | V7F |
| Current Rating | 200 amperes |
| Voltage Rating | 600 volts alternating current |
| Number of Poles | 3 |
| Phase | Three Phase |
| Horsepower Rating | 60 horsepower at 600 volts alternating current |
| Switch Configuration | Single Fusible Unit |
| Compatible Fuse Classes | Class R, H, and K |
| Panel Width | 17 inches |
| Terminal Capacity | One conductor per pole, Number 6 American Wire Gauge through 350 kcmil |
| Certification | UL 98 |
| Application | Panelboards and Switchgear Distribution Systems |
| Weight | 37.00 lbs |
Information About V7F3604
The V7F3604 is a Siemens Type V7F Vacu-Break fusible panel switch developed for power distribution and disconnect applications. Its construction uses a single-unit panel-mount configuration with three poles, a 200-ampere continuous-current rating, and provisions for replaceable current-limiting or general-purpose fuses. The switch is suitable for use with compatible Siemens Vacu-Break and Clampmatic panelboards and switchgear distribution systems and carries a UL 98 suitability certification. Its 600-volt alternating-current rating and documented 60-horsepower rating at 600 volts make it applicable to industrial feeders, motor circuits, and equipment disconnect functions.
Key Features:
- 200-Ampere Rating: Provides a continuous current rating of 200 amperes for industrial power distribution circuits.
- 600-Volt Operation: Rated for electrical systems operating at up to 600 volts alternating current.
- Three-Pole Configuration: Uses three switched poles for three-phase power isolation and distribution applications.
- Fusible Protection: Accepts compatible Class R, H, and K fuses for circuit overcurrent and short-circuit protection.
- Vacu-Break Construction: Belongs to the Siemens Vacu-Break family of panel-mounted disconnect switching equipment.
- 60-Horsepower Rating: Documented for motor applications up to 60 horsepower at 600 volts alternating current.
- Panelboard Integration: Intended for installation in compatible Clampmatic and Vacu-Break panelboards and switchgear distribution systems.
- UL 98 Certification: Siemens product documentation identifies UL 98 as the applicable suitability certification for V7F3604.
The V7F3604 delivers the reliability and precision required for circuit isolation, fused overcurrent protection, and controlled power distribution in industrial three-phase electrical systems.
