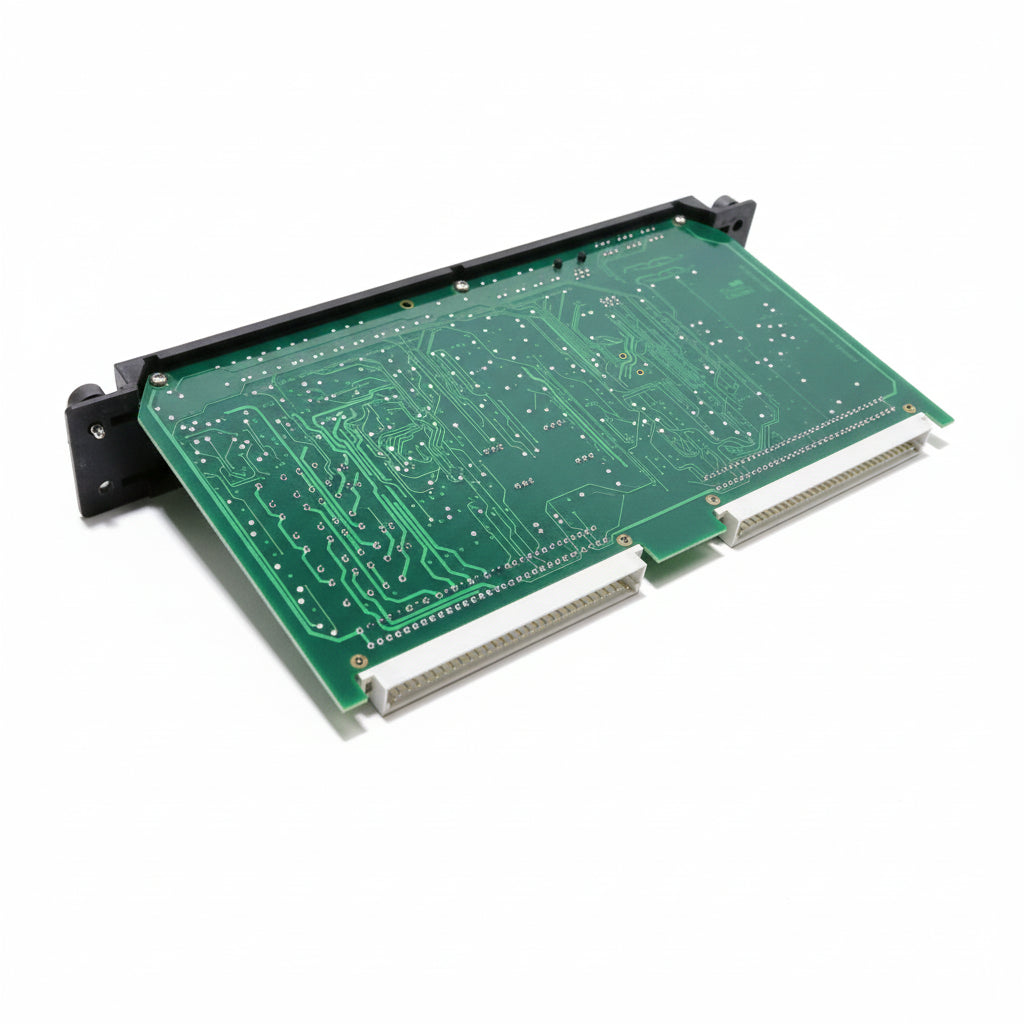

Siemens ZIC-8B Eight-Circuit Zone Indicating Card for Fire Alarm Systems
- Regular price
- $1,717.00
- Sale price
- $1,717.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZIC-8B
Description
The Siemens ZIC-8B is an eight-circuit Zone Indicating Card designed to expand notification and emergency communication capabilities in compatible Siemens fire alarm systems. It provides supervised Class B output circuits for connecting and controlling audible and visual notification appliances, including horns, bells, strobes, and compatible speakers. Each circuit can be individually programmed according to system requirements, supporting flexible configuration for commercial, industrial, and institutional fire protection installations. The card is designed for integration with compatible Siemens modular fire alarm control equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Safety |
| Part Number | ZIC-8B |
| Subcategory | Zone Indicating Cards |
| Manufacturer Part Number | 500-648670 |
| Product Type | Eight-Circuit Zone Indicating Card |
| Product Family | FireFinder XLS / Desigo Fire Safety Modular / Cerberus PRO Modular |
| Output Circuits | 8 |
| Circuit Configuration | Class B, Style Y |
| Maximum Output Current | 2 A at 24 VDC per circuit |
| Supported Applications | Notification appliance circuits and emergency-audio speakers |
| Speaker Voltage | 25 V or 70 VRMS |
| Communication Protocol | H-Net |
| Strobe Synchronization | Synchronized and non-synchronized |
| Output Programming | Independent circuit programming |
| Ground-Fault Detection | Built-in card-level monitoring |
| Compatible Card Cages | CC-5 and CC-2 |
| Optional Expansion Module | ZIC-2C two-channel adapter card |
| Standby Current | Approximately 91 mA |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | Up to 93%, non-condensing |
| Listings and Approvals | UL 864, ULC, FM, and NYC Fire Department |
| Weight | 1.4 lb |
Information About ZIC-8B
The ZIC-8B is part of Siemens modular fire alarm system equipment and is identified by the manufacturer part number 500-648670. The card installs into a compatible CC-5 or CC-2 card cage and communicates with the system through the H-Net protocol. Its eight output circuits can be independently programmed for notification appliance circuits or 25 V and 70 VRMS speaker applications. The optional ZIC-2C adapter provides two-channel voice operation for compatible system configurations.
Key Features:
- Eight Output Circuits: Provides eight supervised Class B notification and speaker output circuits.
- Programmable Outputs: Allows individual circuit configuration for different notification and audio applications.
- Notification Appliance Support: Operates compatible horns, bells, strobes, and other audible or visual devices.
- Speaker Compatibility: Supports 25 V and 70 VRMS emergency-audio speaker circuits.
- 2 A Output Capacity: Supports up to 2 A at 24 VDC per output circuit.
- Strobe Synchronization: Supports synchronized and non-synchronized strobe operation.
- Ground-Fault Detection: Provides card-level ground-fault monitoring for system diagnostics.
- H-Net Communication: Communicates with compatible modular fire alarm system controllers.
The ZIC-8B delivers the reliability and precision required for notification appliance control and emergency audio distribution in compatible fire alarm systems.
