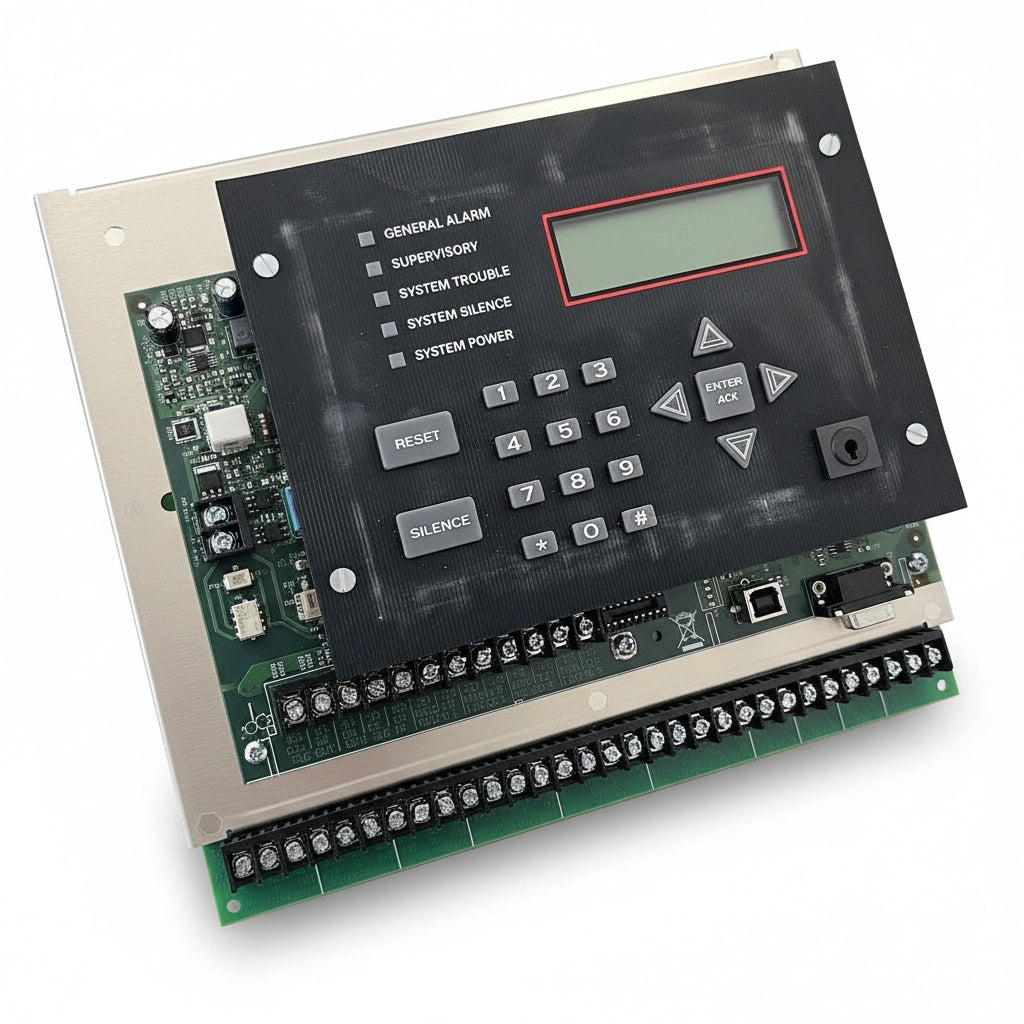

Silent Knight 5820XL-EVS Addressable Fire Alarm Control Panel with Emergency Voice System
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5820XL-EVS
Description
The Silent Knight 5820XL-EVS is an addressable fire alarm control and communicator with an integrated Emergency Voice System. It combines fire detection control, notification functions, and emergency voice communication in a single system for commercial fire and life-safety installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm |
| Part Number | 5820XL-EVS |
| Subcategory | Fire Alarm Control Panel |
| System Type | Addressable Fire Alarm Control and Communicator |
| Emergency Voice System | Integrated EVS |
| SLC | 1 built-in signaling line circuit |
| SK Device Capacity | Up to 99 SK detectors and 99 SK modules per SLC |
| EVS Amplifier Support | Up to four EVS-50W or EVS-125W amplifiers |
| Maximum EVS Power | Up to 500 W per system |
| Speaker Circuits | Up to 32 mappable speaker circuits |
| Speaker Voltage | 25 Vrms or 70.7 Vrms depending on amplifier configuration |
| Primary AC Input | 120 VAC at 60 Hz or 240 VAC at 50 Hz |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10%–93% non-condensing |
| Overall Dimensions | 16.1 W × 26.5 H × 4.125 D in |
| Weight |
28 lbs |
Information About 5820XL-EVS
The 5820XL-EVS is an IntelliKnight addressable fire alarm control panel designed for systems using SK or SD addressable devices. It provides one built-in signaling line circuit, with additional SLC capacity available through 5815XL expanders. The integrated EVS hardware includes a digital message repeater, supervised microphone, and support for up to four SBUS-addressable EVS amplifiers. The system can support up to 32 mappable speaker circuits and is listed for emergency communication applications under UL 2572 in addition to fire alarm requirements under UL 864.
Key Features:
- Addressable Control Panel: Provides centralized fire alarm control and communication for compatible SK and SD addressable devices.
- Integrated EVS: Combines fire alarm functions with an Emergency Voice System in one enclosure.
- SLC Capacity: Built-in SLC supports up to 99 SK detectors and 99 SK modules.
- Voice Messaging: Includes a built-in digital message repeater for emergency voice announcements.
- Amplifier Support: Supports combinations of EVS-50W and EVS-125W amplifiers for up to 500 watts per system.
- Speaker Circuits: Supports up to 32 mappable speaker circuits using compatible EVS equipment.
- Supervised Microphone: Includes an onboard supervised microphone for emergency voice communication.
- System Expansion: Supports additional SLC, power, audio, and remote voice modules for larger installations.
The 5820XL-EVS delivers the reliability and precision required for addressable fire alarm and emergency voice communication systems.
