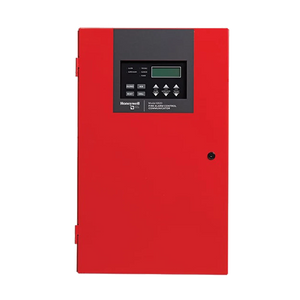

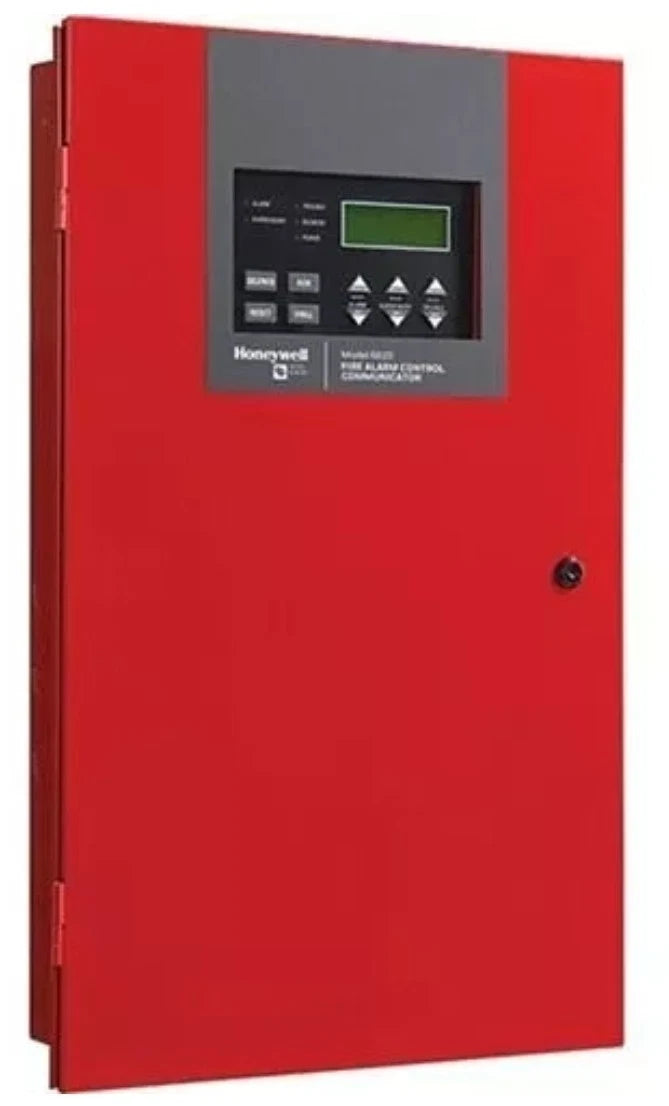

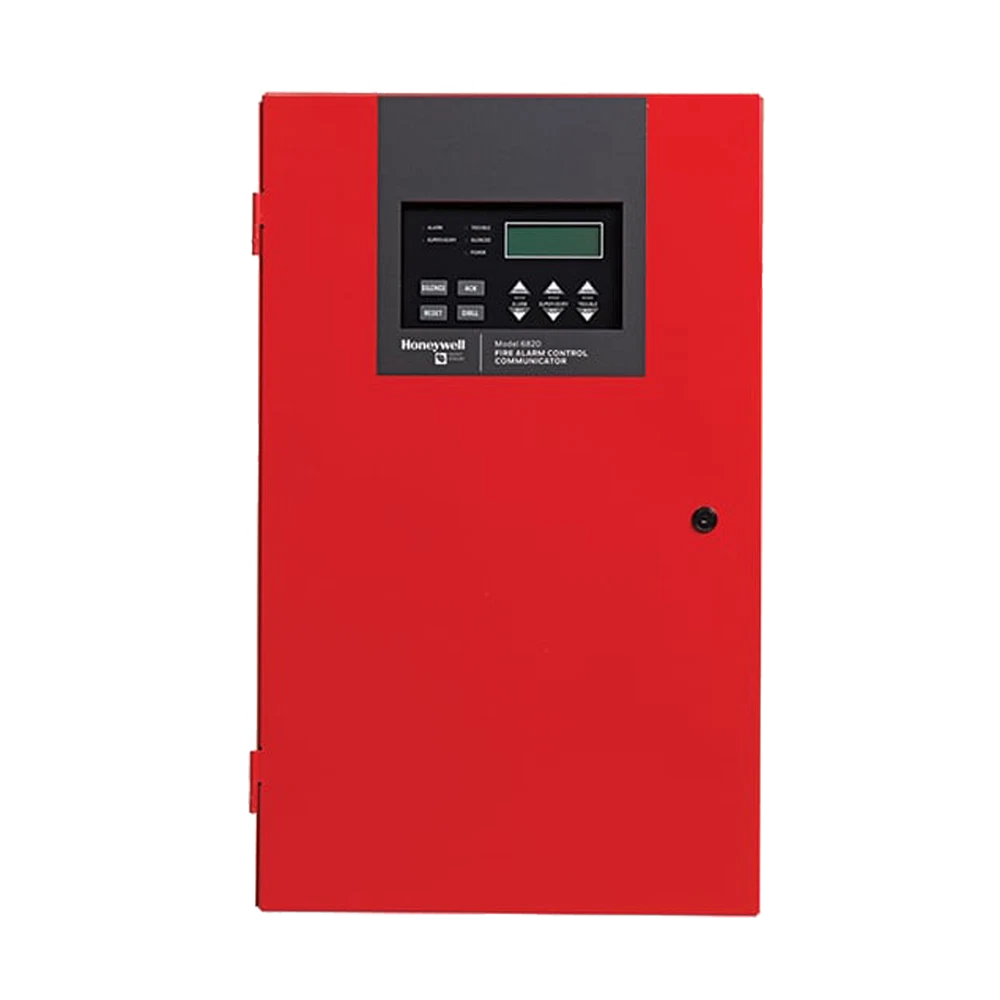

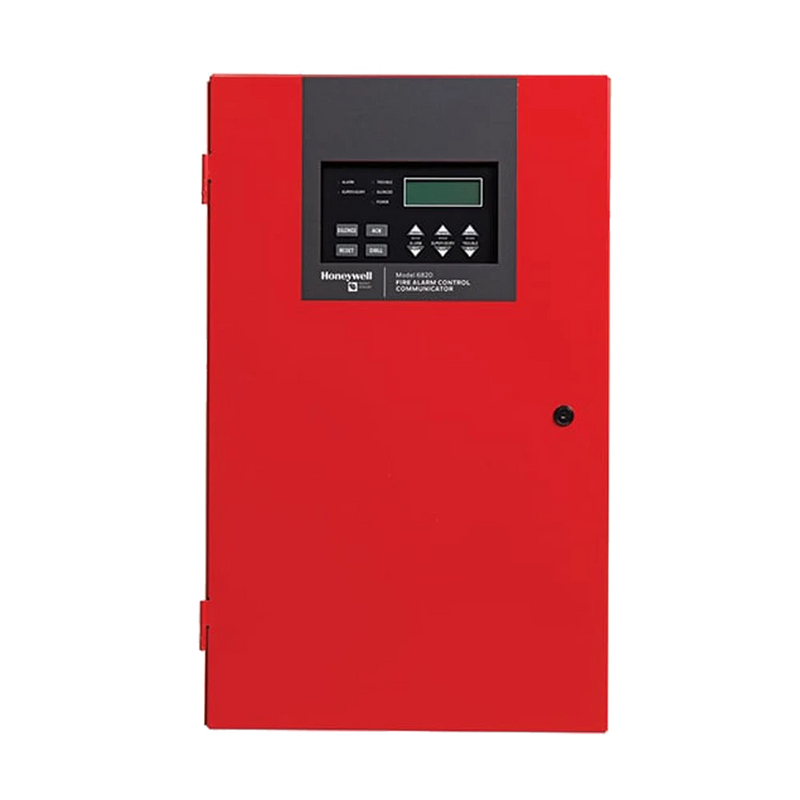

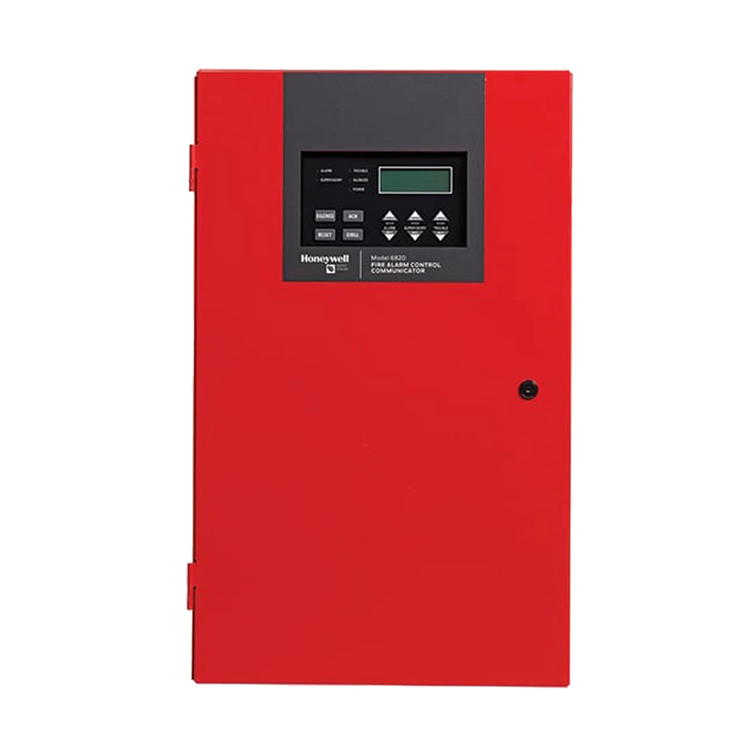

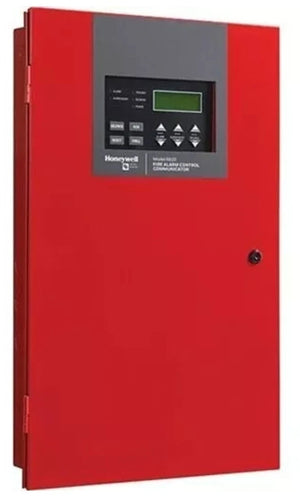

Silent Knight 6820 Addressable Fire Alarm Control Panel with IP Communicator
- Regular price
- $2,137.00
- Sale price
- $2,137.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6820
Description
The Silent Knight 6820 is an addressable fire alarm control panel designed for medium to large commercial fire detection and life-safety systems. It combines high-capacity addressable device support, six notification appliance circuits, integrated POTS/IP communication, and networking capability for multi-panel installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Systems |
| Part Number | 6820 |
| Subcategory | Addressable Fire Alarm Control Panels |
| Product Type | Addressable Fire Alarm Control Panel |
| Color | Red |
| SLC Capacity | Up to 1,110 SK points or 635 SD points |
| Network Capacity | Up to 17 compatible panels |
| Network Media | Copper Wire or Fiber Optic |
| Communicator | Built-In Dual-Line POTS and IP |
| Notification Appliance Circuits | 6 NAC Circuits |
| Power Supply | 6 A |
| Primary Power Source | AC |
| Secondary Power Source | Battery Backup |
| Enclosure Dimensions | 26.4 × 16.5 × 4.15 in |
| Weight | 32.5 lb (14.74 kg) |
Information About 6820
The 6820 is a Silent Knight addressable fire alarm control panel built around the manufacturer's scalable addressable fire detection platform. It supports up to 1,110 SK-series addressable points or up to 635 SD-series points, depending on the installed device protocol and system configuration. The panel can operate independently or connect with as many as 17 compatible panels using copper or fiber-optic networking for larger facilities and distributed systems. Integrated dual-line POTS and IP communication, programmable notification circuits, auxiliary power, and battery backup provide the primary functions required for supervised commercial fire alarm operation.
Key Features:
- High Addressable Capacity: Supports up to 1,110 SK-series points or up to 635 SD-series addressable points depending on system configuration.
- Multi-Panel Networking: Supports networks of up to 17 compatible panels using copper or fiber-optic connections.
- Integrated Communications: Includes built-in dual-line POTS and IP communication capabilities for alarm signal transmission.
- Six NAC Circuits: Provides six onboard notification appliance circuits for compatible horns, strobes, and other signaling devices.
- 6-Amp Power Supply: Incorporates a primary 6 A power supply for panel and connected fire alarm system loads.
- Battery Backup: Supports standby battery operation to maintain critical fire alarm functions during loss of primary AC power.
- Addressable Detection: Provides individual identification and supervision of compatible addressable detectors, modules, and initiating devices.
- Expandable Architecture: Supports additional system capacity and functionality through compatible Silent Knight expansion and networking hardware.
The 6820 delivers the reliability and precision required for addressable fire detection, notification, communication, and system supervision in commercial facilities.
Description
The Silent Knight 6820 is an addressable fire alarm control panel designed for medium to large commercial fire detection and life-safety systems. It combines high-capacity addressable device support, six notification appliance circuits, integrated POTS/IP communication, and networking capability for multi-panel installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Systems |
| Part Number | 6820 |
| Subcategory | Addressable Fire Alarm Control Panels |
| Product Type | Addressable Fire Alarm Control Panel |
| Color | Red |
| SLC Capacity | Up to 1,110 SK points or 635 SD points |
| Network Capacity | Up to 17 compatible panels |
| Network Media | Copper Wire or Fiber Optic |
| Communicator | Built-In Dual-Line POTS and IP |
| Notification Appliance Circuits | 6 NAC Circuits |
| Power Supply | 6 A |
| Primary Power Source | AC |
| Secondary Power Source | Battery Backup |
| Enclosure Dimensions | 26.4 × 16.5 × 4.15 in |
| Weight | 32.5 lb (14.74 kg) |
Information About 6820
The 6820 is a Silent Knight addressable fire alarm control panel built around the manufacturer's scalable addressable fire detection platform. It supports up to 1,110 SK-series addressable points or up to 635 SD-series points, depending on the installed device protocol and system configuration. The panel can operate independently or connect with as many as 17 compatible panels using copper or fiber-optic networking for larger facilities and distributed systems. Integrated dual-line POTS and IP communication, programmable notification circuits, auxiliary power, and battery backup provide the primary functions required for supervised commercial fire alarm operation.
Key Features:
- High Addressable Capacity: Supports up to 1,110 SK-series points or up to 635 SD-series addressable points depending on system configuration.
- Multi-Panel Networking: Supports networks of up to 17 compatible panels using copper or fiber-optic connections.
- Integrated Communications: Includes built-in dual-line POTS and IP communication capabilities for alarm signal transmission.
- Six NAC Circuits: Provides six onboard notification appliance circuits for compatible horns, strobes, and other signaling devices.
- 6-Amp Power Supply: Incorporates a primary 6 A power supply for panel and connected fire alarm system loads.
- Battery Backup: Supports standby battery operation to maintain critical fire alarm functions during loss of primary AC power.
- Addressable Detection: Provides individual identification and supervision of compatible addressable detectors, modules, and initiating devices.
- Expandable Architecture: Supports additional system capacity and functionality through compatible Silent Knight expansion and networking hardware.
The 6820 delivers the reliability and precision required for addressable fire detection, notification, communication, and system supervision in commercial facilities.
