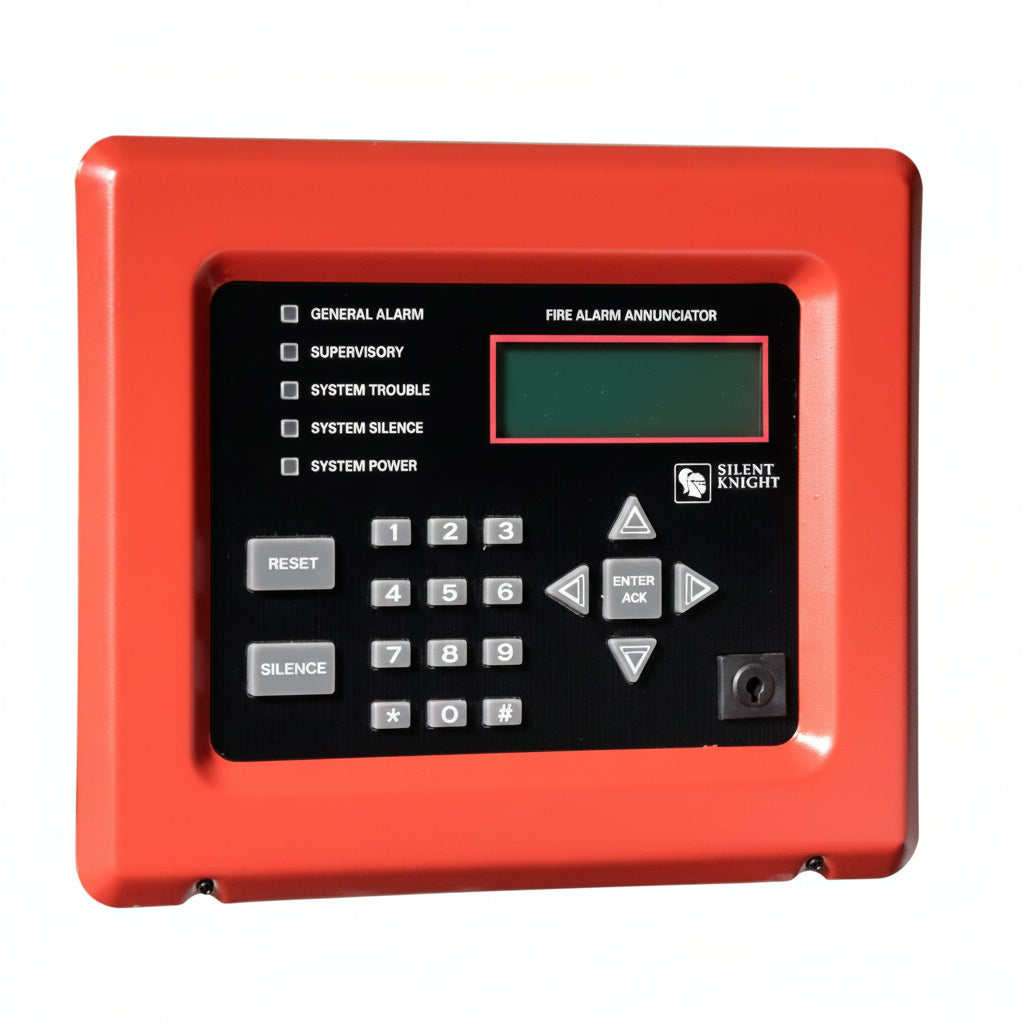

Silent Knight SK-5860R Red Remote Fire Alarm Annunciator with 80-Character LCD
- Regular price
- $687.00
- Sale price
- $687.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SK-5860R
Description
The Silent Knight SK-5860R is a red remote fire alarm annunciator designed to operate and program compatible Silent Knight fire alarm control panels. It provides an 80-character backlit LCD, dedicated status indicators, and an ergonomic keypad for functions such as system reset, silence, fire drill, programming, and status review.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Control |
| Part Number | SK-5860R |
| Subcategory | Remote Annunciators |
| Product Type | Remote Fire Alarm Annunciator |
| Display | 80-character backlit LCD |
| Communication Interface | RS-485 SBUS |
| Operating Voltage | 24 VDC |
| Standby Current | 20 mA |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10% to 93% relative humidity, noncondensing |
| Mounting | Surface or flush mount |
| Dimensions | 9.1" W × 7.4" H × 1.5" D |
| Color | Red |
| Maximum Wiring Distance | Up to 6,000 ft (1.83 km), depending on wire gauge and SBUS configuration |
| Status Indicators | Alarm, supervisory, trouble, silence, AC power |
| Approvals | UL Listed; NFPA 72 compliant; CSFM, FM, and MEA approvals |
| Weight | 2.8 lbs (1.3 kg) |
Information About SK-5860R
The SK-5860R is a 5860-series remote fire annunciator for Silent Knight fire alarm control panels. It communicates with the control panel through an RS-485 SBUS interface and can be installed using either surface or flush mounting. The unit features a four-line LCD with 20 characters per line, five status LEDs, tactile/audible keypad feedback, and a built-in piezo sounder. Compatible panels include the Silent Knight 5700, 5808, 5820XL/5820XL-EVS, 6700, 6808, and 6820/6820EVS series.
Key Features:
- 80-Character LCD: Four-line backlit display with 20 characters per line for system messages and status information.
- RS-485 SBUS Interface: Connects the annunciator to compatible Silent Knight fire alarm control panels.
- System Operation: Supports reset, silence, fire drill, programming, and system status functions.
- Status Indicators: Five LEDs indicate alarm, supervisory, trouble, silence, and AC power conditions.
- Red Housing: 5860R version provides a red enclosure intended for clearly identifiable fire alarm annunciator applications.
- Mounting Options: Supports both surface and flush mounting configurations.
- Long-Distance Wiring: Supports wiring distances up to 6,000 ft from the fire alarm control panel, depending on system configuration.
- Multiple Annunciators: Supports simultaneous use of multiple 5860/R units on compatible control panels.
The SK-5860R delivers the reliability and precision required for remote fire alarm system monitoring and control.
