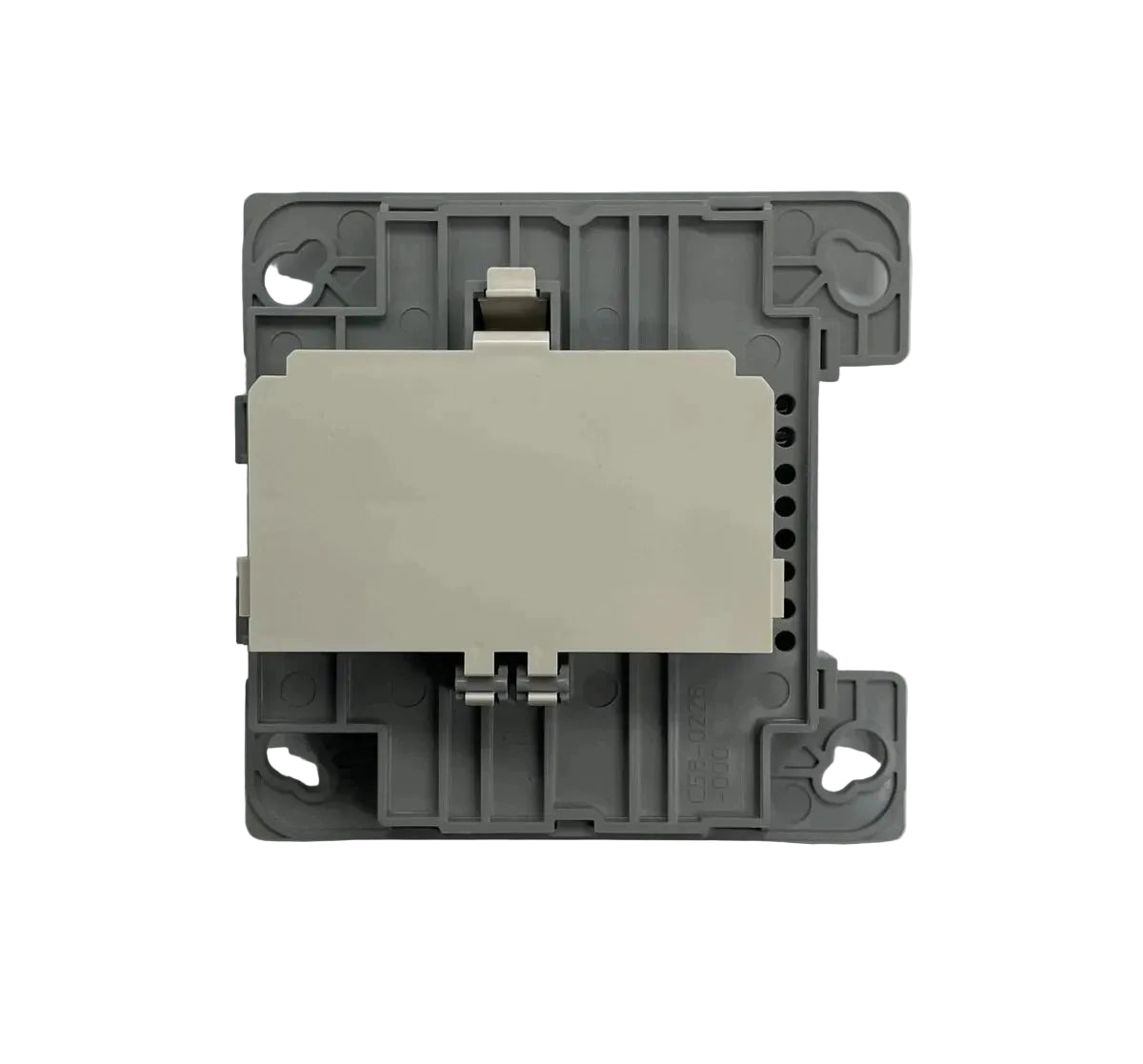

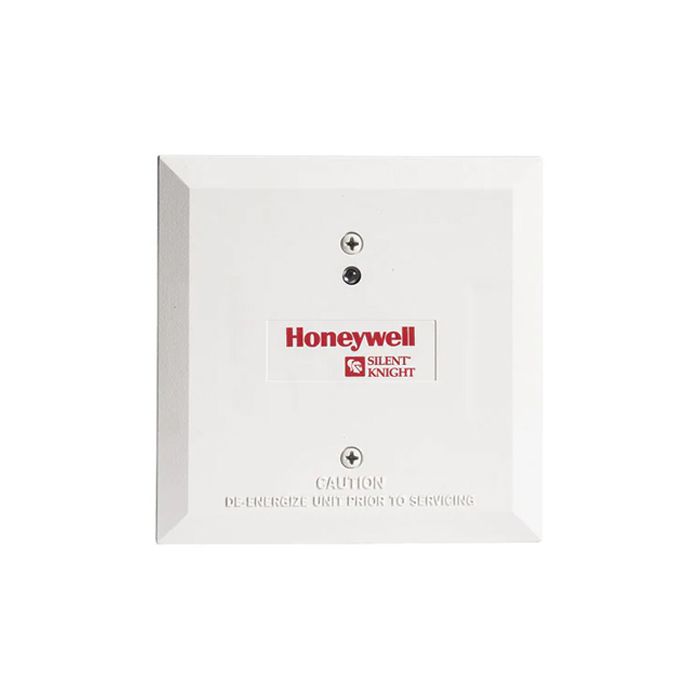

Silent Knight WSK-MONITOR SWIFT Wireless Addressable Monitor Module
- Regular price
- $392.00
- Sale price
- $392.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WSK-MONITOR
Description
The Silent Knight WSK-MONITOR is a wireless addressable monitor module designed to interface conventional contact devices with SWIFT® wireless fire alarm systems. It provides secure bidirectional communication through a Class A mesh network, allowing devices such as waterflow switches, security contacts, and pull stations to report status conditions to compatible Silent Knight fire alarm control panels. The module enables flexible wireless installation in commercial life safety applications where traditional wiring is difficult or impractical.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Systems |
| Part Number | WSK-MONITOR |
| Subcategory | Wireless Addressable Monitor Module |
| Product Type | SWIFT® Wireless Monitor Module |
| Communication Type | Bi-directional wireless mesh communication |
| Network Type | Class A mesh network |
| Frequency Technology | Frequency hopping |
| Input Type | Supervised contact monitoring input |
| Input Operation | Non-latching |
| Compatible Devices | Waterflow switches, pull stations, security contacts, dry contact devices |
| Addressing Method | Rotary dial address switches |
| LED Indicator | Panel-controlled status LED |
| Operating Voltage | 8–32 VDC |
| Standby Current | Less than 300 µA |
| Alarm Current | Less than 10 mA |
| Communication Range | Dependent on SWIFT mesh network installation |
| Installation Requirement | Within 3 ft of monitored device with field wiring or up to 20 ft in non-metallic conduit |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 10% to 93% RH non-condensing |
| Mounting Type | Wireless module installation |
| Application | Commercial fire alarm monitoring and life safety systems |
| Compatibility | Silent Knight SWIFT wireless gateways and compatible FACPs |
| Weight | Approximately 0.35 lbs |
Information About WSK-MONITOR
The WSK-MONITOR is part of the Silent Knight SWIFT® wireless addressable module family, developed to provide reliable communication between field devices and fire alarm control panels through a wireless mesh network. The module features rotary address switches, panel-controlled LED indication, and a non-latching monitored input that eliminates the need for manual reset after status changes. It communicates through frequency-hopping technology with redundant mesh paths, allowing devices to maintain operation if an individual communication route becomes unavailable. The WSK-MONITOR is designed for integration with SWIFT wireless gateways and compatible Silent Knight FACPs for commercial fire detection and monitoring systems.
Key Features:
- Wireless Addressable Monitoring: Provides wireless connection between contact devices and compatible Silent Knight fire alarm control panels.
- SWIFT® Mesh Communication: Uses a Class A wireless mesh network with redundant communication paths for improved reliability.
- Contact Device Interface: Supports connection to devices such as waterflow switches, pull stations, and security contacts.
- Bidirectional Communication: Enables two-way data exchange between the module, wireless gateway, and FACP.
- Frequency Hopping Technology: Helps reduce interference from accidental or intentional radio disturbances.

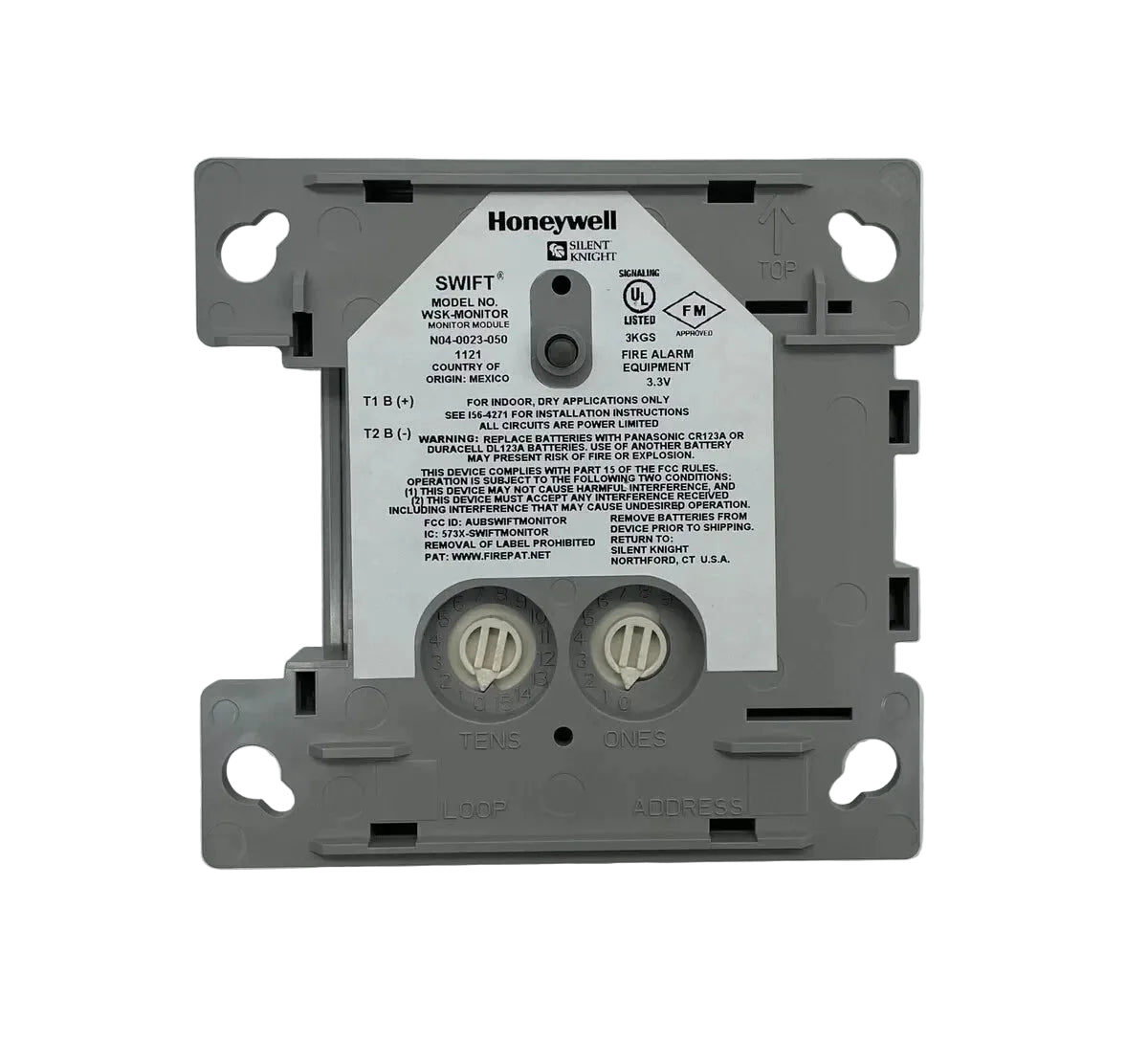

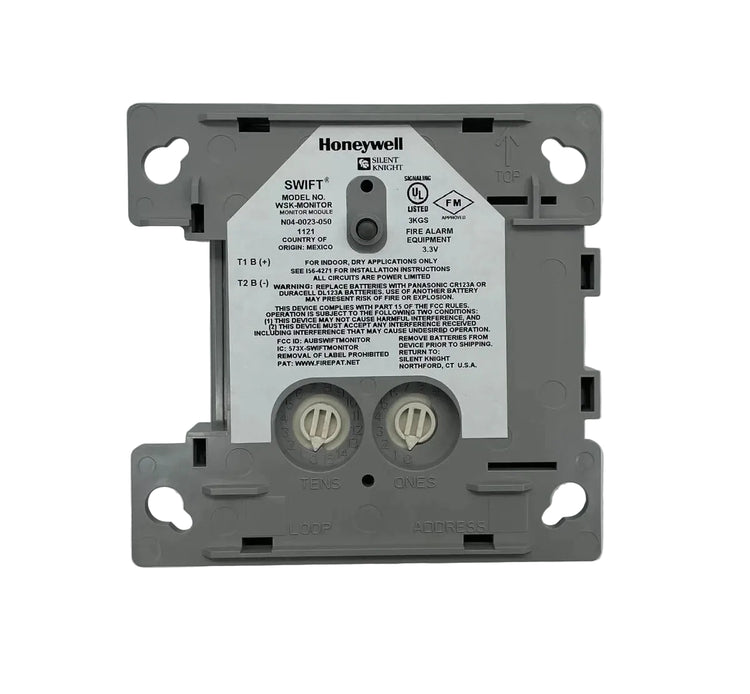

- Rotary Address Switches: Allows simple module addressing for individual device identification.
- Non-Latching Input: Monitors status changes without requiring a manual system reset.
- LED Status Indicator: Provides panel-controlled visual indication of module operation and status.
- Low Power Operation: Maintains efficient wireless operation with minimal standby current consumption.
- Flexible Installation: Suitable for locations where conventional wiring is expensive, difficult, or disruptive.
- Mixed Wired/Wireless Compatibility: Allows wireless devices and traditional wired devices to operate on the same FACP.
- Commercial Life Safety Applications: Designed for offices, healthcare facilities, educational buildings, industrial sites, and multi-tenant properties.
The WSK-MONITOR delivers the reliability and precision required for wireless addressable monitoring and integrated fire alarm system expansion.
