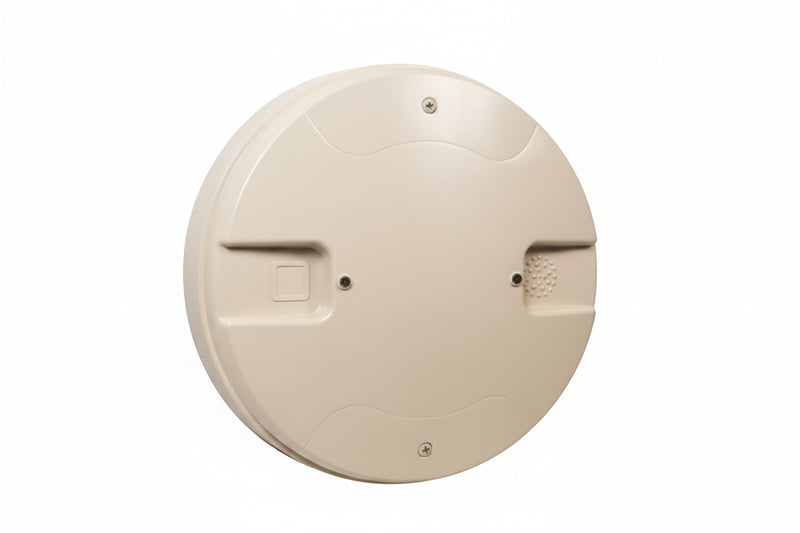

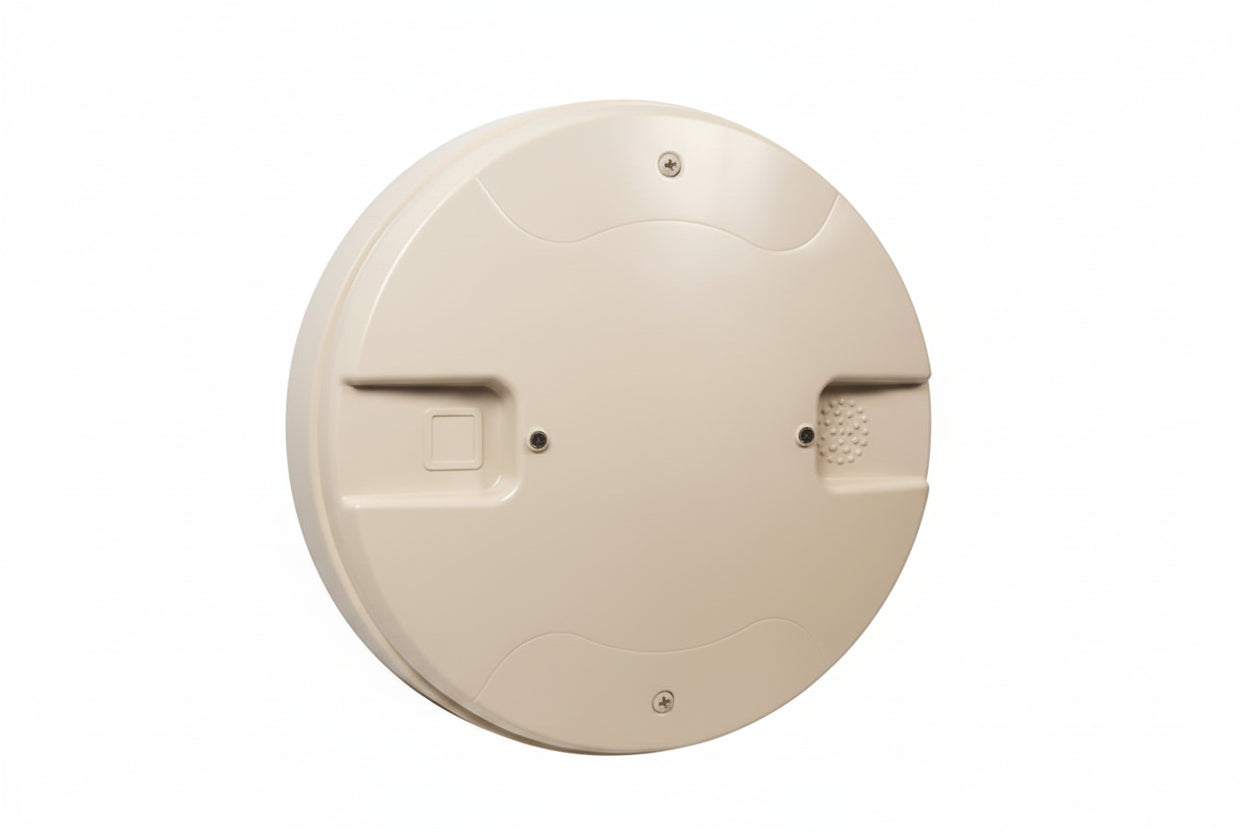

Silent Knight WSK-WGI SWIFT Wireless Fire Alarm System Gateway
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WSK-WGI
Description
The Silent Knight WSK-WGI is a SWIFT wireless gateway designed to connect compatible wireless fire alarm devices with Silent Knight addressable fire alarm control panels. It communicates with wireless detectors, monitor modules, relay modules, and other SWIFT devices through a proprietary wireless mesh network. The gateway is suitable for commercial fire alarm installations where wireless device integration is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Safety |
| Part Number | WSK-WGI |
| Subcategory | Wireless Fire Alarm Gateways |
| Product Family | SWIFT Smart Wireless Integrated Fire Technology |
| Product Type | Wireless System Gateway |
| Primary Function | Connects wireless fire alarm devices to a compatible fire alarm control panel |
| Wireless Communication | Proprietary SWIFT wireless mesh protocol |
| Panel Communication | SK protocol over SLC loop |
| Compatible Control Panels | Silent Knight 6700, 6808, 6820, and 6820/EVS |
| Supported Wireless Devices | Compatible SWIFT detectors, monitor modules, relay modules, and pull stations |
| Wireless System Capacity | Up to 49 SWIFT detectors or modules per wireless mesh |
| External Supply Voltage | 18–30 VDC |
| Maximum Current from External Supply | 40 mA |
| Maximum Current from SLC Supply | 24 mA |
| Maximum SLC Resistance | 50 Ω |
| Radio Frequency Range | 902–928 MHz |
| Maximum RF Power Output | +17 dBm |
| Maximum Ambient Noise Level | -85 dBm |
| Minimum Signal Strength for Primary Path Trouble Reporting | -55 dBm |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 10%–93% relative humidity, non-condensing |
| Height | 1 7/8 in (4.5 cm) |
| Diameter | 7 7/8 in (20 cm) |
| Listings and Approvals | UL Listed, FM Approved |
| FCC ID | PV3WFSGW |
| Weight | 1.3 lbs |
Information About WSK-WGI
The WSK-WGI is part of the Silent Knight SWIFT Smart Wireless Integrated Fire Technology system developed by Honeywell. It acts as an interface between the panel's signaling line circuit and the wireless mesh network used by compatible fire alarm devices. The gateway can receive power from the SLC loop or from an external 24 VDC UL-listed power supply. Its wireless communication system supports redundant network paths and frequency-hopping technology to help maintain communication between connected devices.
Key Features:
- Wireless Gateway: Connects compatible SWIFT wireless fire alarm devices to a Silent Knight fire alarm control panel.
- Mesh Network Communication: Uses a proprietary wireless mesh protocol for communication between connected devices.
- SLC Integration: Communicates with compatible panels through the signaling line circuit using the SK protocol.
- Multiple Power Options: Can be powered through the SLC loop or an external 24 VDC UL-listed power supply.
- System Compatibility: Designed for use with Silent Knight 6700, 6808, and 6820/EVS addressable fire alarm panels.
- Wireless Device Support: Interfaces with compatible smoke detectors, heat detectors, monitor modules, relay modules, and pull stations.
- Redundant Communication Paths: Supports mesh networking that provides alternative communication routes between devices.
- Wireless System Capacity: Supports up to 49 compatible SWIFT detectors or modules in a wireless mesh network.
The WSK-WGI delivers the reliability and precision required for wireless fire alarm communication and integration in compatible commercial fire protection systems.
