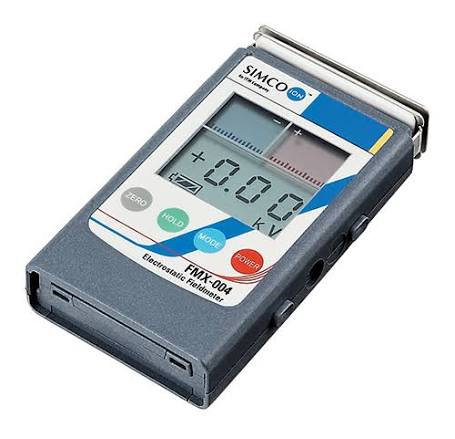

Simco-Ion FMX-004 Handheld Electrostatic Fieldmeter for Static Charge and Ion Balance Measurement
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FMX-004
Description
The Simco-Ion FMX-004 is a handheld electrostatic fieldmeter designed to measure static voltage on charged surfaces without direct contact. It provides automatic and selectable measurement ranges, polarity indication, and ion balance measurement for static-control verification in electronics, manufacturing, and controlled environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simco-Ion |
| Category | Test & Measurement |
| Part Number | FMX-004 |
| Subcategory | Electrostatic Fieldmeters |
| Measurement Type | Electrostatic field / surface voltage |
| Auto Range | 0 to ±1.49 kV low range; ±1.0 kV to ±30.0 kV high range |
| High Range | 0 to ±30.0 kV |
| Low Range | 0 to ±3.00 kV |
| Ion Balance Range | 0 to ±300 V |
| Measuring Distance | 1 in ±1/64 in (25 mm ±0.5 mm) |
| Distance Guidance | LED guide |
| Accuracy | ±10% |
| Response Time | Less than 1 second |
| Display | Red LCD for positive polarity; blue LCD for negative polarity |
| Display Renewal Rate | 5 times per second |
| Controls | Power, Hold, Zero, Mode |
| Power Supply | 9 V battery |
| Battery Life | Approximately 30 hours |
| Operating Environment | 50–100°F (10–40°C), 0–60% RH, non-condensing |
| Enclosure Material | Conductive ABS resin |
| Dimensions | 4.8 × 2.9 × 1.0 in (12.3 × 7.3 × 2.5 cm) |
| Weight | 0.38 lb (0.17 kg) |
Information About FMX-004
The FMX-004 is a portable electrostatic fieldmeter built for checking static charge levels and evaluating ionizer balance. Its conductive ABS enclosure, integrated distance-guidance LEDs, and compact handheld construction support consistent measurements at the specified one-inch sensing distance. The instrument provides automatic, high, low, and ion balance measurement modes with dedicated display formats for different voltage ranges. Push-button controls for power, hold, zero, and mode selection simplify operation during ESD inspections, equipment checks, and static-control maintenance.
Key Features:
- Electrostatic Measurement: Measures surface potentials across multiple ranges up to ±30.0 kV.
- Ion Balance Mode: Supports ion balance measurements from 0 to ±300 V when used with the ion balance plate.
- Polarity Indication: Red LCD indicates positive polarity, while blue LCD indicates negative polarity.
- Distance Guidance: Integrated LEDs help maintain the specified 1-inch measurement distance.
- Auto-Ranging Display: Automatically selects the appropriate display resolution based on the measured voltage.
- Hold Function: Retains the measured value on the display for convenient recording and inspection.
- Fast Response: Provides a response time of less than one second with a five-times-per-second renewal rate.
- Status Monitoring: Displays battery condition and sensor errors with audible alerts for operating conditions and over-range measurements.
The FMX-004 delivers the reliability and precision required for electrostatic field measurement, ion balance verification, and ESD control inspections.
