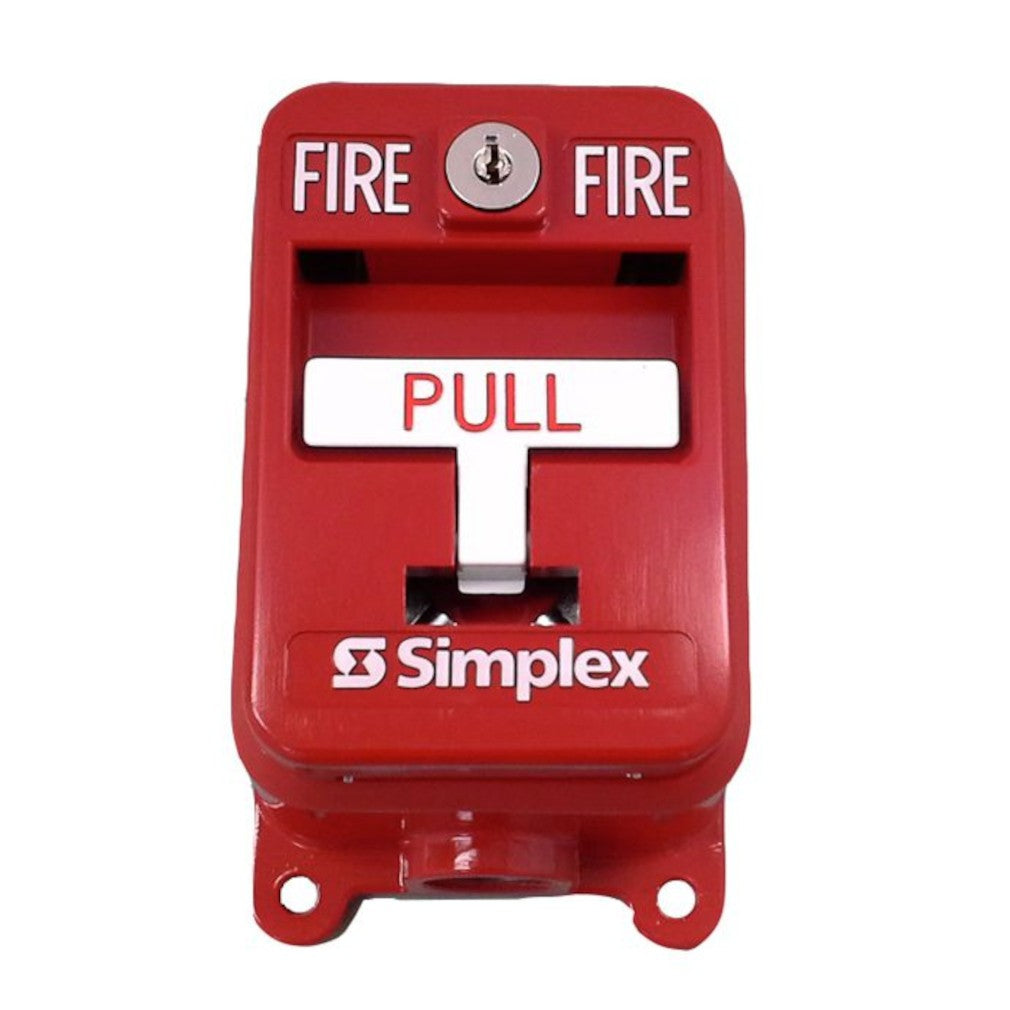

Simplex 2099-9144 Explosion-Proof Manual Fire Alarm Pull Station DPDT NEMA 4X
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2099-9144
Description
The Simplex 2099-9144 is an explosion-proof and weatherproof manual fire alarm pull station designed for emergency alarm activation in hazardous industrial environments. Simplex part number 2099-9144 features single-action operation, DPDT electrical contacts, and a rugged cast-metal enclosure rated NEMA 4X. Its construction supports installation in locations exposed to flammable gases, combustible dust, moisture, and extreme temperatures.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Simplex |
|
Category |
Fire Alarm & Life Safety |
|
Part Number |
2099-9144 |
|
Subcategory |
Explosion-Proof Manual Pull Stations |
|
Series |
2099 Series |
|
Product Type |
Explosion-Proof and Weatherproof Manual Fire Alarm Station |
|
Operation Type |
Single-Action Pull |
|
Alarm Coding |
Non-Coded |
|
Contact Configuration |
DPDT |
|
Contact Rating |
1 A at 30 VDC; 10 A at 120 VAC, Resistive |
|
Enclosure Rating |
NEMA 4X |
|
Enclosure Material |
Cast Metal / Cast Zinc |
|
Finish |
Red Housing with White Pull Lever |
|
Hazardous Location Classification |
Class I, Groups B, C, D; Class II, Groups E, F, G |
|
Certifications |
UL 38 Listed; FM and CSFM Approved |
|
Operating Temperature |
-67°F to 302°F (-55°C to 150°C) |
|
Reset Mechanism |
Key-Operated, Simplex B Key |
|
Alarm Indication |
Mechanically Latched Extended Handle |
|
Break Rod |
Optional |
|
Conduit Entries |
3/4 in NPT, Top and Bottom |
|
Dimensions |
3.75 × 6.75 × 3.875 in (W × H × D) |
|
Mounting Type |
Surface Mount, Integrated Enclosure |
|
Application |
Hazardous Industrial and Outdoor Fire Alarm Systems |
|
Weight |
4.8 lbs |
Information About 2099-9144
The 2099-9144 is a Simplex 2099 Series non-coded manual fire alarm station supplied complete with an explosion-proof and weatherproof enclosure for hazardous-location installations. Its cast-metal housing features a red finish, white pull lever, mechanically latched alarm mechanism, and keyed reset system operated with a Simplex B key. The station incorporates DPDT contacts rated for 1 A at 30 VDC or 10 A at 120 VAC resistive loads and supports connection to compatible conventional fire alarm initiating circuits. Designed for refineries, chemical processing facilities, industrial plants, and exposed outdoor installations, the assembly provides NEMA 4X environmental protection and hazardous-location approvals for specified Class I and Class II environments.
Key Features:
-
Explosion-Proof Construction: Designed for manual fire alarm activation in hazardous locations containing flammable gases, vapors, or combustible dust.
-
Single-Action Operation: Activates the alarm through a single downward pull of the operating handle.
-
DPDT Contact Configuration: Provides double-pole, double-throw switching contacts for compatible fire alarm circuits.
-
NEMA 4X Enclosure: Provides environmental protection against water intrusion, corrosion, and demanding outdoor conditions.
-
Hazardous Location Approval: Listed for Class I Groups B, C, and D and Class II Groups E, F, and G hazardous environments.
-
Heavy-Duty Cast-Metal Housing: Rugged construction resists mechanical impact and harsh industrial operating conditions.
-
Wide Operating Temperature Range: Supports operation from -67°F to 302°F (-55°C to 150°C).
-
Key-Operated Reset: Mechanically latched alarm condition can be reset by unlocking and opening the station with a Simplex B key.
-
Optional Break Rod: Accepts a visible break rod to discourage unauthorized activation without affecting normal operation.
-
Electrical Contact Ratings: Supports resistive loads up to 1 A at 30 VDC or 10 A at 120 VAC.
-
Integrated Enclosure: Supplied with its dedicated explosion-proof housing, eliminating the need for a separate mounting backbox.
-
Conduit Connections: Features 3/4-inch NPT conduit entries at the top and bottom for electrical wiring installation.
The 2099-9144 delivers the reliability and precision required for manual fire alarm initiation, hazardous-location emergency signaling, and industrial life safety systems.
