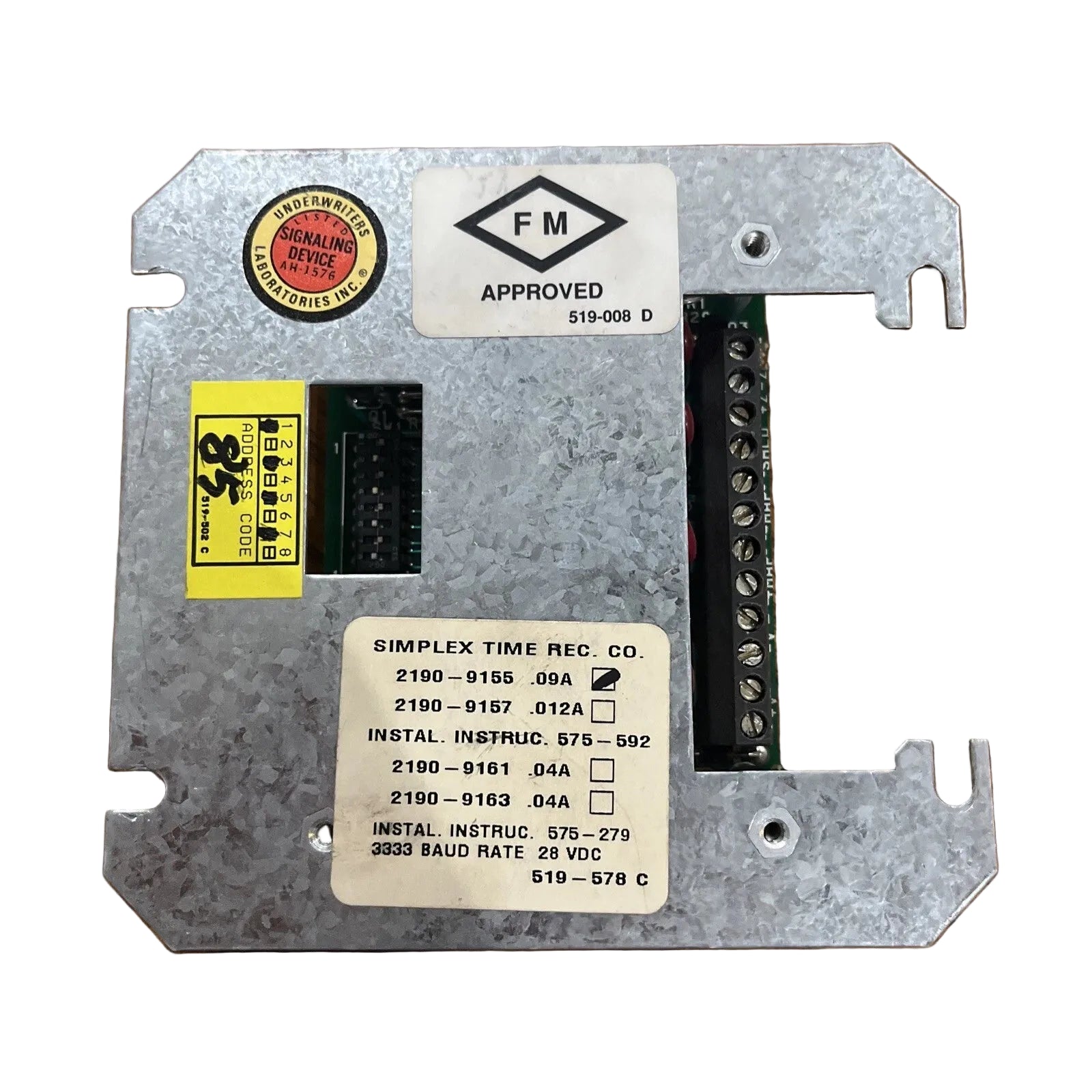

Simplex 2190-9155 Class B Monitor Zone Addressable Module for MAPNET II Fire Alarm Systems
- Regular price
- $235.00
- Sale price
- $235.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2190-9155
Description
The Simplex 2190-9155 is a Class B Monitor Zone Addressable Module designed to connect conventional initiating device circuits to Simplex addressable fire alarm systems. It monitors the connected zone as an individually addressed point and communicates its status to the fire alarm control panel through the MAPNET II network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 2190-9155 |
| Subcategory | Zone Addressable Module |
| Product Type | Monitor Zone Addressable Module |
| Module Classification | Class B, Style B |
| Communication Protocol | MAPNET II |
| Power Requirement | Separate 24 volts direct current |
| Supervisory Current | 20 milliamperes at 24 volts direct current |
| Alarm Current | 90 milliamperes at 24 volts direct current |
| Mounting Configuration | Surface Mount |
| Compatible Systems | Simplex 4100, 4100U, 4120, Universal Transponders, and 2120 Communicating Device Transponders |
| End-of-Line Resistor | 6.8 kilohms |
| Replacement Model | Simplex 4090-9101 |
| Cross Reference | 0617606 |
| Dimensions | 5.5 × 5.5 × 2 inches |
| Weight | 5.00 lbs |
Information About 2190-9155
The 2190-9155 is a Simplex MAPNET II Zone Addressable Module configured as a Class B, Style B monitor interface with a surface-mount cover. Its circuitry provides an addressable interface for conventional initiating devices while using a separately supplied 24-volt direct-current source for module operation. The module is compatible with MAPNET II-equipped Simplex 4100 and 4100U Series panels, 4100 Series Universal Transponders, 4120 Series network node panels, and 2120 Communicating Device Transponders. It is a legacy discontinued device, with Simplex 4090-9101 identified as its replacement for applications requiring a current monitor Zone Addressable Module.
Key Features:
- Class B Monitoring: Provides a Class B, Style B interface for monitoring a conventional initiating device circuit as an addressable fire alarm point.
- MAPNET II Communication: Communicates with compatible Simplex control equipment through the MAPNET II addressable network.
- Conventional Circuit Integration: Allows conventional initiating devices to be incorporated into an addressable Simplex fire alarm architecture.
- Surface-Mount Configuration: The 2190-9155 version is supplied in the surface-cover configuration; 2190-9156 is the corresponding flush-cover version.
- Separate Power Input: Requires a separate 24-volt direct-current power supply in addition to MAPNET II communication wiring.
- Defined Current Requirements: Draws approximately 20 milliamperes during supervision and 90 milliamperes during alarm at 24 volts direct current.
- Legacy System Compatibility: Supports MAPNET II-equipped Simplex 4100, 4100U, 4120, Universal Transponder, and 2120 system architectures.
- Replacement Availability: The discontinued 2190-9155 is identified in replacement-market documentation as superseded by the Simplex 4090-9101 Monitor Zone Addressable Module.
The 2190-9155 delivers the reliability and precision required for supervised integration of conventional initiating device circuits into compatible Simplex addressable fire alarm systems.
