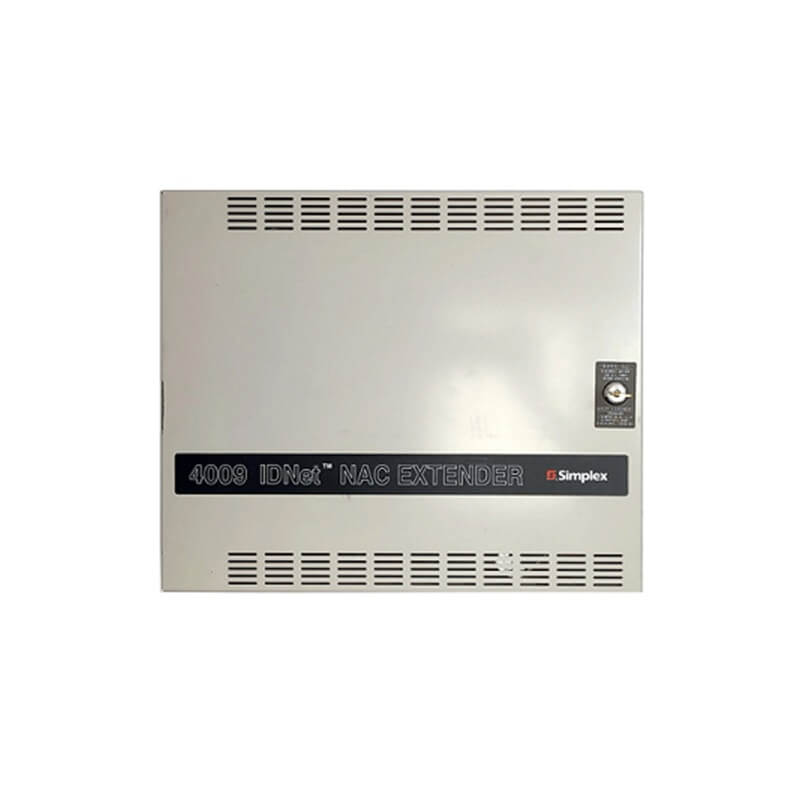

Simplex 4009-9301 NAC Extender for Fire Alarm Notification Appliance Circuits
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4009-9301
Description
The Simplex 4009-9301 is a NAC Extender designed to add dedicated notification appliance power to compatible Simplex fire alarm control systems. Operating as a self-contained adjunct panel, it provides additional signaling capacity for larger commercial fire alarm installations using 220/240 VAC power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Safety |
| Part Number | 4009-9301 |
| Subcategory | NAC Extenders |
| Product Type | Notification Appliance Circuit Extender |
| Host Panel Communication | IDNet Slave |
| Notification Appliance Circuits | 4 |
| Conventional NAC Inputs | 2 |
| AC Input Voltage | 220/240 VAC |
| AC Input Current | 1.5 A |
| Input Frequency | 50/60 Hz |
| Battery Input | 24 VDC, 8 A |
| Notification Output Voltage | 24 VDC |
| Notification Output Capacity | 8 A |
| Power Supply | Integrated power supply and battery charger |
| Application | Commercial fire alarm notification systems |
| Dimensions | 23 × 19 × 9 in |
| Weight | 26 lbs |
Information About 4009-9301
The 4009-9301 is a Simplex notification appliance circuit extender that communicates with a host fire alarm panel as an IDNet slave. It provides four notification appliance circuits powered by its integrated supply and battery charging system. Two conventional NAC inputs are available for hardwired control of the extender's notification outputs. Optional expansion cards can add Class A wiring capability or extend IDNet communication distance and power.
Key Features:
- IDNet Slave Communication: Connects to a compatible Simplex host fire alarm control panel through the IDNet channel.
- Four NAC Outputs: Provides four dedicated notification appliance circuits for additional system signaling capacity.
- Integrated Power Supply: Supplies 24 VDC notification appliance power from the extender's internal power system.
- Conventional NAC Inputs: Includes two conventional notification appliance circuit inputs for hardwired control.
- 8 Amp Output Capacity: Provides up to 8 Amps of 24 VDC power for connected notification appliances.
- Battery Backup Support: Supports a 24 VDC battery input with an 8 Amp rating.
- Class A Expansion: Compatible with the optional 4009-9808 Class A adapter for fault-tolerant circuit wiring.
- IDNet Expansion: Supports the optional 4009-9809 IDNet repeater card for extended communication distance and power.
The 4009-9301 delivers the reliability and precision required for expanding notification appliance power and signaling capacity in commercial fire alarm systems.
