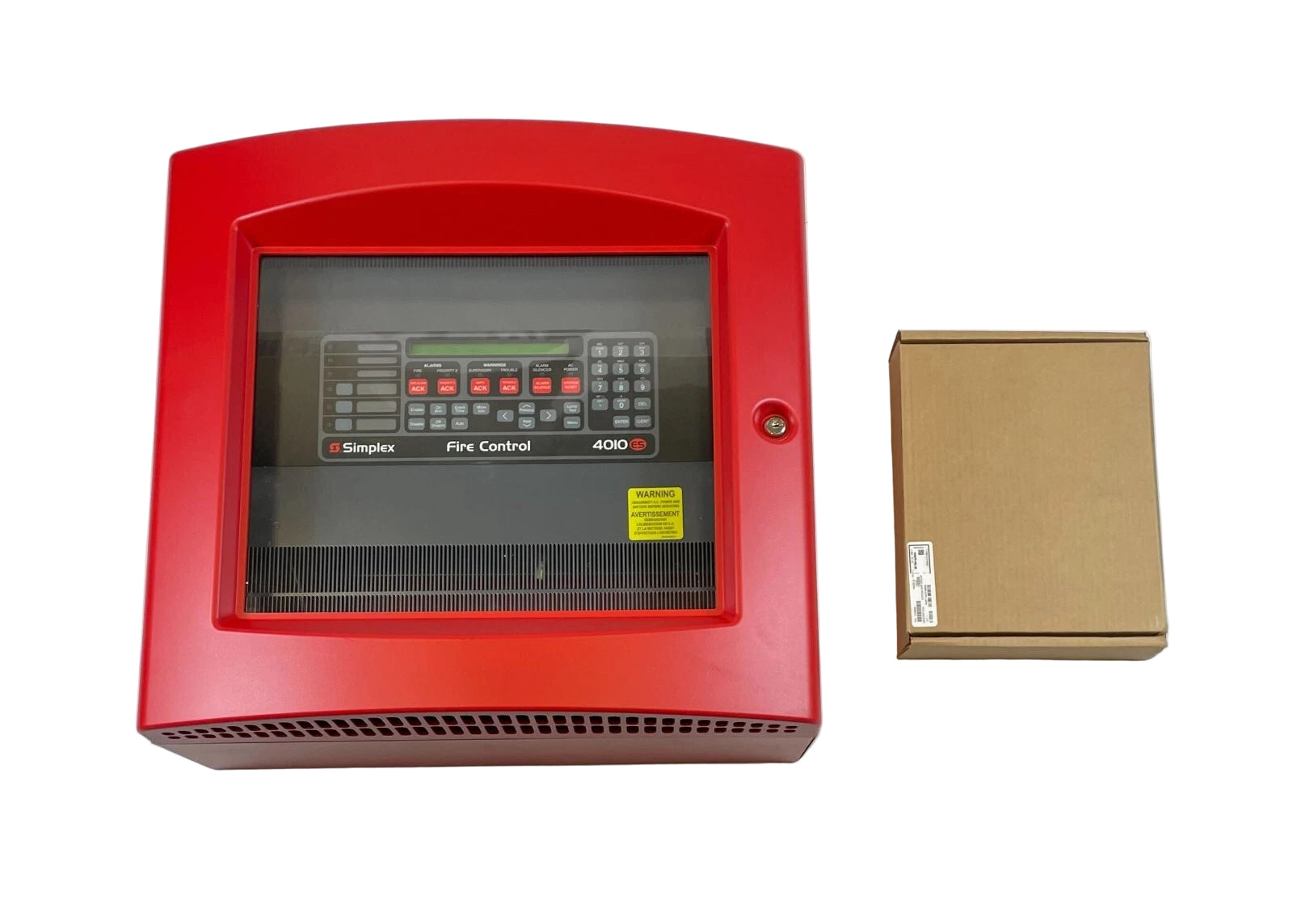

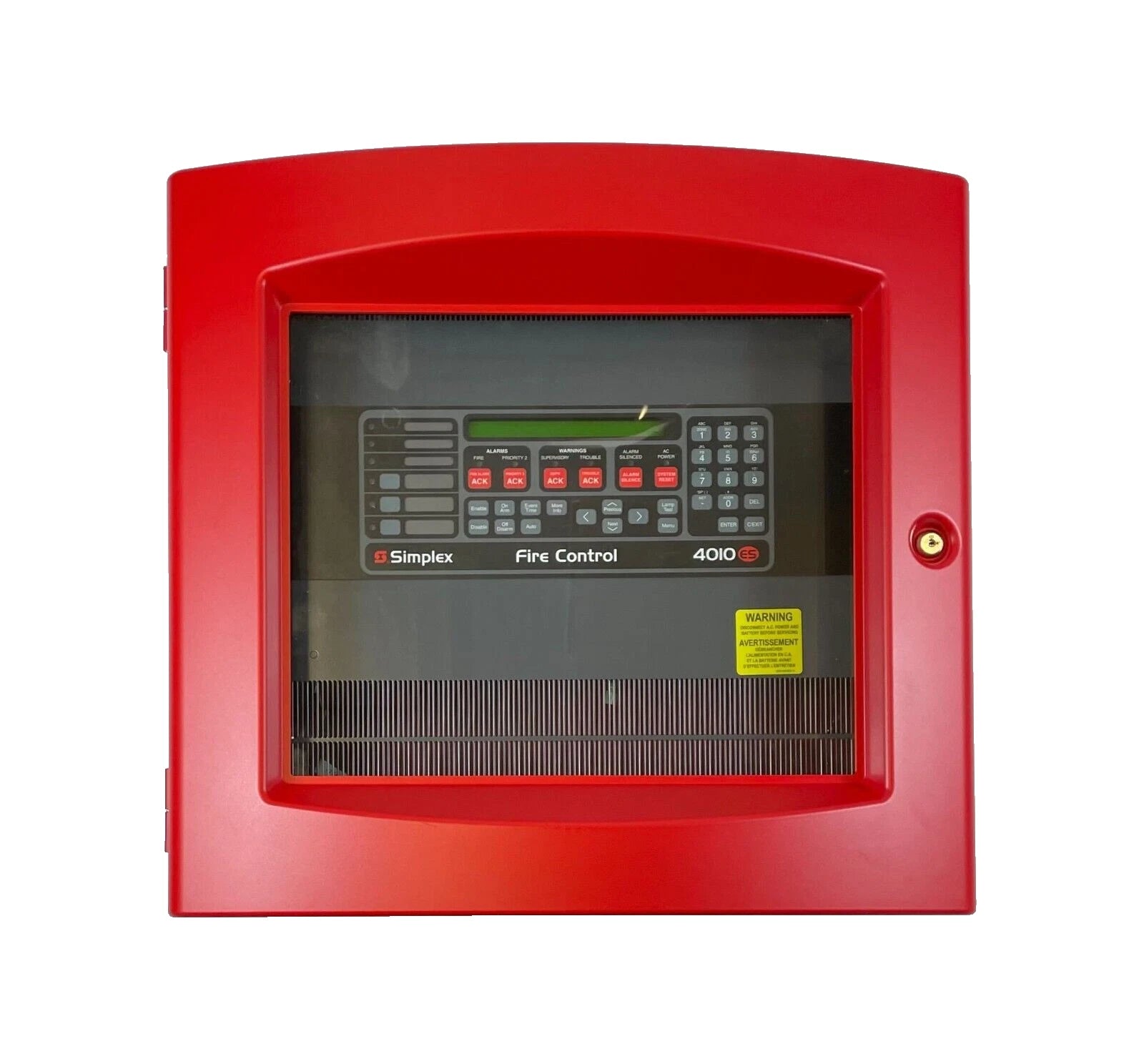

4010-9401 | Simplex 4010ES Series Addressable Fire Alarm Control Panel, 998 Points, 8A Power
- Regular price
- $3,215.00
- Sale price
- $3,215.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 4010-9401
Description
The Simplex 4010-9401 is an addressable fire alarm control unit from the 4010ES Series, designed for mid-range applications that require flexible, reliable fire detection and notification. It supports up to 998 IDNet points or 1000 MX loop points, features onboard Ethernet for fast communication, and includes compact flash memory for secure job file storage. With robust power capacity and multiple NACs, it is ideal for commercial and institutional facilities.
Technical Specifications
| Brand | Simplex (Johnson Controls) |
| Model / Part Number | 4010-9401 |
| Series | 4010ES Series Fire Control Units |
| Condition | New |
| Type | Fire Alarm Control Panel |
| Style | Addressable |
| Display Options | Color ES touchscreen or 2x40 character monochrome display |
| Capacity | Up to 998 IDNet points / 1000 MX loop points / 127 VESDA SLI points |
| Annunciation | Up to 2000 points; 20 internal/external card addresses |
| Power Supply | 8 A with 2 A auxiliary; supports batteries up to 110 Ah (UL) / 50 Ah (ULC) |
| NACs | 4 Class A/B NACs, 3 A each |
| Relay Output | 1 programmable auxiliary relay, 2 A @ 32 VDC |
| Memory | Compact flash memory for on-site configuration storage |
| Communication | Ethernet port for programming/service |
| Annunciator Support | RUI port, Class A or B operation |
| LED Indicators | 48 LED annunciation (40 red, 8 yellow) |
| Voltage | 120 VAC |
| Enclosure Dimensions | 33 × 27 × 17 in |
| Weight | 16 lbs |
| Panel Color | Red |
| Production Status | Active |
| Certifications | UL, ULC Listed |
Information About 4010-9401
The 4010-9401 is part of the Simplex 4010ES intelligent fire alarm system lineup by Johnson Controls. It combines advanced processing with service-friendly features, including an Ethernet service port, modular expandability, and on-site memory archiving. The panel supports large-scale device capacity, remote annunciators, and optional touchscreen displays, making it suitable for a variety of mid-range fire alarm system installations.
Key Features:
- Supports up to 998 IDNet points or 1000 MX loop points
- Compatible with 127 VESDA SLI points and up to 2000 annunciation points
- Onboard Ethernet port for external communications and service access
- Compact flash memory for secure on-site configuration file storage
- 8 A power supply, with 2 A auxiliary output and battery charger for up to 110 Ah (UL) or 50 Ah (ULC) batteries
- 4 Class A/B NACs rated at 3 A each, plus one programmable auxiliary relay (2 A @ 32 VDC)
- Remote annunciator module support via RUI (Class A or B)
- Available with color ES touchscreen or monochrome 2x40 LCD display options
- 48 LED annunciator support (40 red, 8 yellow) with customizable LED kits
- Complies with UL and ULC requirements for reliable fire protection
