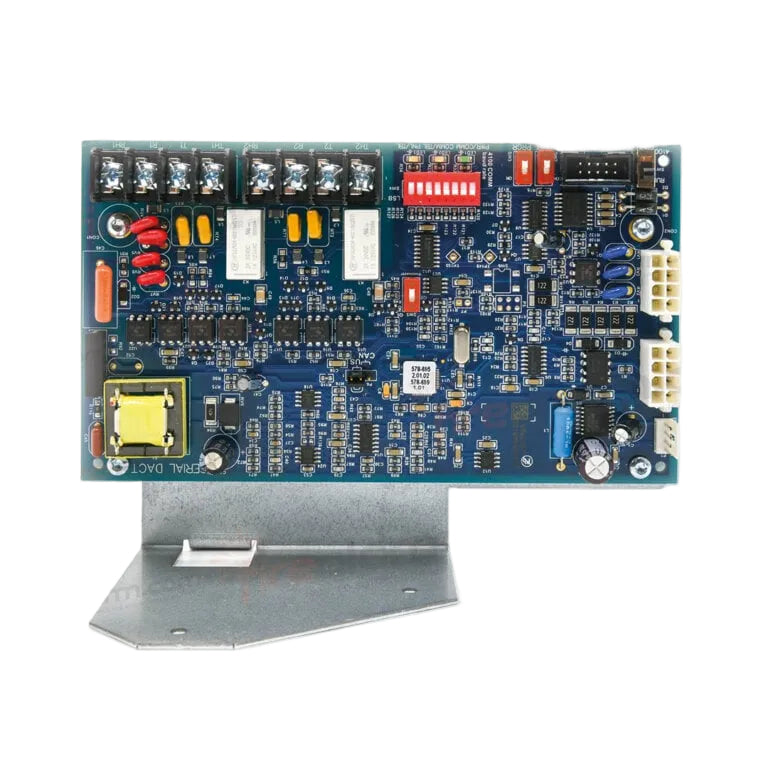

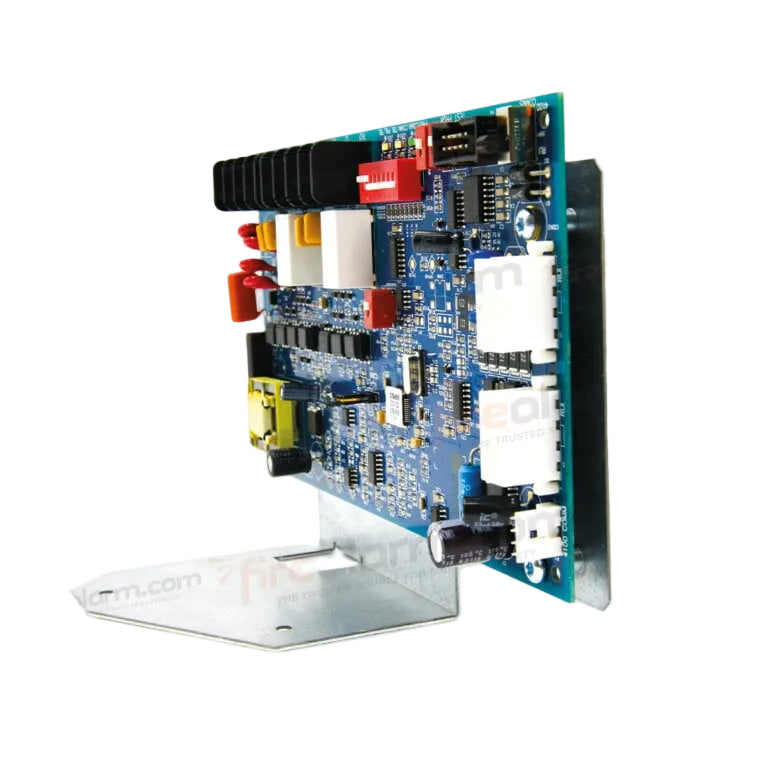

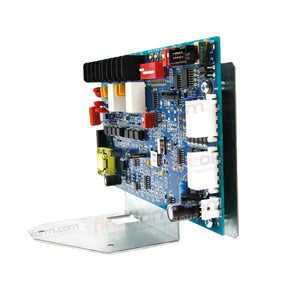

Simplex 4010-9912 Serial Digital Alarm Communicating Transmitter
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4010-9912
Description
Simplex 4010-9912 is a Serial Digital Alarm Communicating Transmitter (SDACT) designed for use with the Simplex 4010ES fire alarm control panel. It communicates directly with the fire alarm control panel CPU and transmits alarm, trouble, and supervisory events to a central monitoring station with detailed event information.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4010-9912 |
| Subcategory | Communication Modules |
| Product Type | Serial Digital Alarm Communicating Transmitter (SDACT) |
| Compatible Control Panel | Simplex 4010ES |
| Mounting Location | Block D |
| Communication Interface | Serial connection to fire alarm control panel CPU |
| Reporting Formats | Contact ID, Pulse 3/1, Pulse 4/2, SIA Level 1 |
| Point Capacity | Up to 4,000 points maximum, subject to receiving equipment and communication format |
| Input Voltage | 18–32 VDC from panel |
| Standby Current | 30 mA |
| Report Mode Current | 40 mA |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Operating Humidity | 10–90% RH at 30°C (85°F) |
| Telephone Interface | RJ31X; two connections required |
| Weight | 0.3 lb |
Information About 4010-9912
The 4010-9912 is a panel-mounted SDACT module specified for the Simplex 4010ES fire alarm control unit and installs in Block D of the cabinet. Its serial interface allows the transmitter to obtain panel status and point information directly from the control panel CPU. The module supports central-station reporting formats including Contact ID, Pulse 3/1, Pulse 4/2, and SIA Level 1, depending on the connected receiving equipment. It operates from the panel supply and uses certified POTS telephone lines for DACT communication, with compatibility for DACT-to-Ethernet interfaces such as the Bosch D6680/D6600 arrangement.
Key Features:
- Serial DACT Interface: Provides digital alarm communication between the fire alarm control panel and central monitoring station.
- 4010ES Compatibility: Designed specifically for installation with the Simplex 4010ES fire alarm control unit.
- Point-Level Reporting: Supports detailed point information when used with compatible Simplex control panels and receiving equipment.
- Event Monitoring: Reports alarm, trouble, supervisory, and other applicable panel status changes.
- Multiple Formats: Supports Contact ID, Pulse 3/1, Pulse 4/2, and SIA Level 1 reporting formats.
- Panel-Mounted Design: Installs in Block D of the 4010ES cabinet for integrated system operation.
- Diagnostic Indication: Module status LEDs provide service and communication diagnostics.
- Ethernet Compatibility: Can operate with compatible DACT-to-Ethernet communication interfaces.
The 4010-9912 delivers the reliability and precision required for centralized fire alarm event reporting and monitoring applications.
