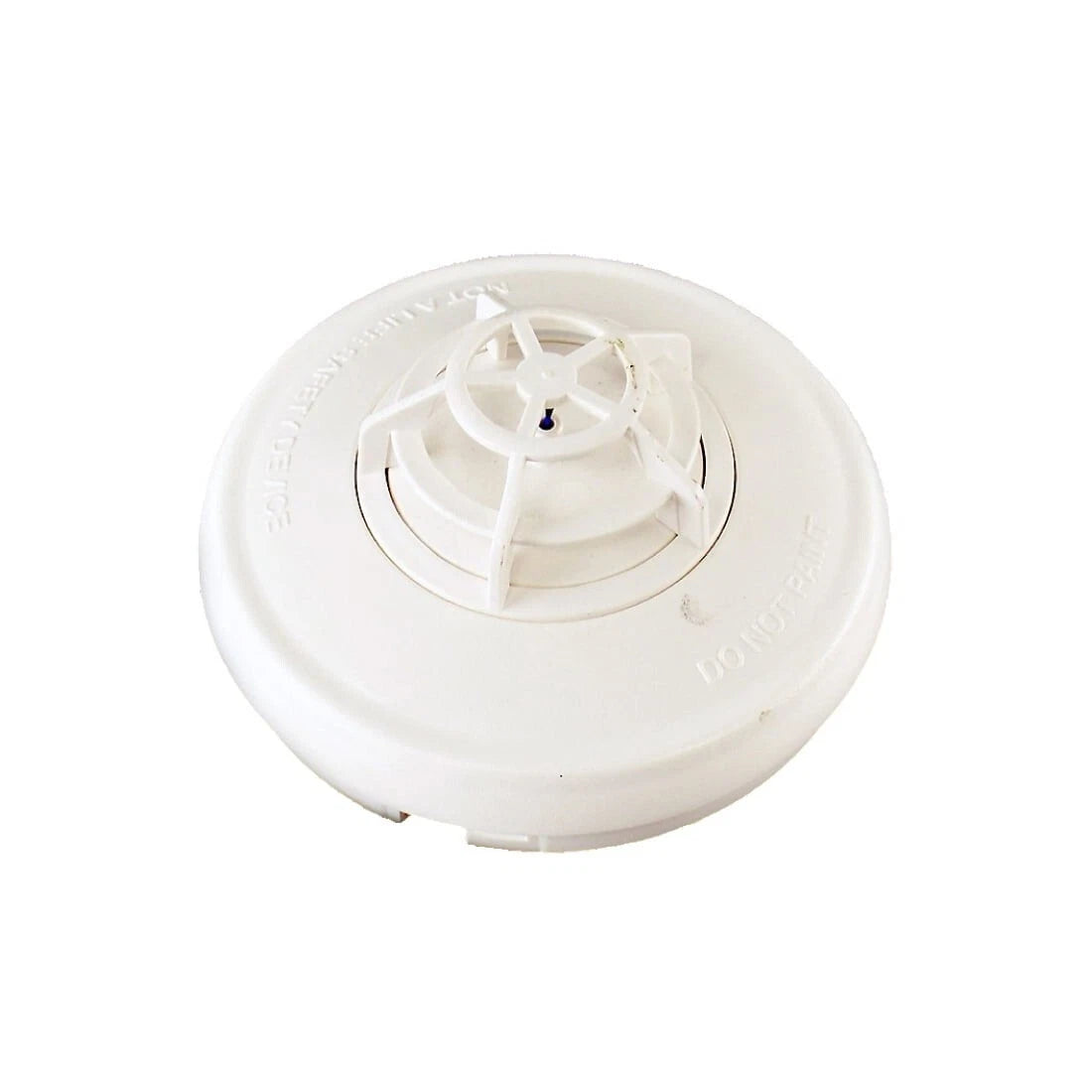

Simplex 4098-9733 Addressable TrueAlarm Analog Heat Detector Sensor
- Regular price
- $44.00
- Sale price
- $44.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4098-9733
Description
The Simplex 4098-9733 is an intelligent addressable heat sensor engineered for reliable thermal fire detection in commercial and industrial environments. Designed for use with Simplex TrueAlarm fire alarm systems, it continuously reports analog temperature data to the control panel for accurate alarm evaluation. Its fixed-temperature and optional rate-of-rise detection modes provide dependable performance in areas where smoke detection may be unsuitable.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4098-9733 |
| Subcategory | Addressable Heat Detectors |
| Device Type | Analog addressable heat detector |
| Detection Technology | TrueAlarm analog thermal sensing |
| Temperature Modes | Fixed temperature and optional rate-of-rise |
| Fixed Temperature Settings | 135°F (57.2°C) or 155°F (68°C) |
| Rate-of-Rise Settings | 15°F/min (8.3°C/min) or 20°F/min (11.1°C/min), panel selectable |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Humidity Range | 10% to 95% RH, non-condensing |
| Coverage Area | Up to 900 sq ft (84 m²) |
| Compatible Sensor Bases | 4098-9788, 4098-9792, 4098-9789, 4098-9791, 4098-9780 |
| Compatible Control Panels | Simplex 4007ES, 4008, 4010, 4010ES, 4020, 4100ES, 4100U |
| Communication | Simplex TrueAlarm analog addressable protocol |
| Listings | UL 521; supports NFPA 72 applications |
| Weight | Approx. 0.3 lb (0.14 kg) |
Information About 4098-9733
The 4098-9733 is an analog addressable heat detector from the Simplex TrueAlarm series that utilizes continuous temperature monitoring rather than conventional threshold-only sensing. It communicates real-time thermal data to compatible Simplex fire alarm control panels, allowing intelligent alarm processing, pre-alarm functions, and programmable detection parameters. The detector supports selectable fixed-temperature operation with optional rate-of-rise detection and automatically restores to normal after alarm conditions have cleared. It installs on compatible Simplex sensor bases, making it suitable for kitchens, mechanical rooms, warehouses, garages, laundry facilities, and other environments where airborne contaminants may affect smoke detectors.
Key Features:
- Analog Temperature Monitoring: Continuously reports ambient temperature to the fire alarm control panel.
- Fixed-Temperature Detection: Selectable alarm thresholds of 135°F (57.2°C) or 155°F (68°C).
- Optional Rate-of-Rise Detection: Supports programmable 15°F/min or 20°F/min temperature rise detection.
- TrueAlarm Addressable Technology: Provides intelligent analog communication with compatible Simplex systems.
- Self-Restoring Operation: Automatically resets after ambient temperature returns to normal.
- Flexible Base Compatibility: Operates with multiple Simplex addressable sensor bases.
- Designed for Challenging Environments: Suitable for locations where smoke detectors may experience nuisance alarms.
- Standards Compliance: UL 521 listed and designed to support NFPA 72 fire alarm applications.
The 4098-9733 delivers the reliability and precision required for intelligent heat detection in commercial and industrial fire alarm systems.
