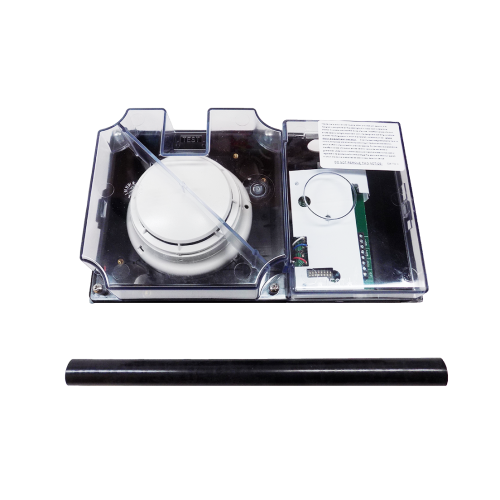

Simplex 4098-9755 TrueAlarm Addressable Duct Smoke Sensor Housing With Photoelectric Detector
- Regular price
- $212.00
- Sale price
- $212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4098-9755
Description
The Simplex 4098-9755 is a TrueAlarm addressable duct smoke sensor housing designed for monitoring smoke conditions inside HVAC air ducts and ventilation systems. It combines intelligent analog sensing with IDNet or MAPNET II communication to provide accurate smoke detection, environmental compensation, and reliable integration with Simplex fire alarm control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4098-9755 |
| Subcategory | Addressable Duct Smoke Sensor Housing |
| Series | TrueAlarm |
| Product Type | Intelligent Duct Smoke Detector Housing |
| Included Sensor | 4098-9714 TrueAlarm Photoelectric Sensor |
| Detection Technology | Photoelectric Smoke and Heat Sensing |
| Communication Protocol | IDNet / MAPNET II Two-Wire Addressable Communication |
| Communication Type | Analog Addressable |
| Application | HVAC duct and air handling smoke detection |
| Sensor Processing | Fire alarm panel-based analog processing |
| Sensitivity Adjustment | Programmable through compatible Simplex panel |
| Drift Compensation | Automatic |
| Pre-Alarm Support | Yes |
| Sensor Monitoring | Dirt accumulation and calibration monitoring |
| Cover Type | Clear polycarbonate inspection cover |
| Testing Method | Built-in functional smoke test ports |
| Relay Outputs | Not Included |
| Sampling Tubes | Ordered separately based on duct width |
| Mounting Location | HVAC ducts and air handling systems |
| Approval Rating | UL 268A Listed |
| Operating Environment | Commercial, industrial, healthcare, and institutional facilities |
| Weight | Approximately 2.0 lb (0.91 kg) |
Information About 4098-9755
The 4098-9755 is part of the Simplex TrueAlarm family of intelligent duct smoke detection products developed for HVAC and air handling applications. The unit includes a factory-installed 4098-9714 TrueAlarm photoelectric smoke sensor and uses two-wire IDNet or MAPNET II communication for power and data transmission. Its analog sensing technology allows the connected fire alarm panel to process smoke levels, adjust sensitivity, monitor contamination, and provide status information for each individual device address. The compact housing features a clear cover and integrated test ports, allowing inspection and functional testing without removing the enclosure from the duct system.
Key Features:
- TrueAlarm Analog Sensing: Provides continuous smoke data reporting for intelligent fire alarm panel processing.
- Duct Smoke Detection: Designed to monitor smoke conditions within HVAC ducts and ventilation systems.
- Factory-Installed Sensor: Includes a Simplex 4098-9714 TrueAlarm photoelectric sensor head.
- IDNet / MAPNET II Communication: Uses Simplex two-wire addressable communication for data and power.
- Multi-Criteria Detection: Combines photoelectric smoke sensing with temperature monitoring for improved alarm decisions.
- Programmable Sensitivity: Allows panel-controlled sensitivity adjustment and environmental compensation.
- Drift Compensation: Monitors sensor contamination and adjusts operation to maintain detection accuracy.
- Clear Inspection Cover: Enables visual inspection of internal components without opening the housing.
- Built-In Test Ports: Allows smoke testing while the cover remains installed.
- Addressable Identification: Provides individual device identification through compatible Simplex panels.
- HVAC System Compatibility: Suitable for air conditioning systems, ventilation ducts, and air handling equipment.
- UL 268A Listing: Approved for duct smoke detection applications.
The 4098-9755 delivers the reliability and precision required for intelligent duct smoke detection and HVAC fire protection systems.
