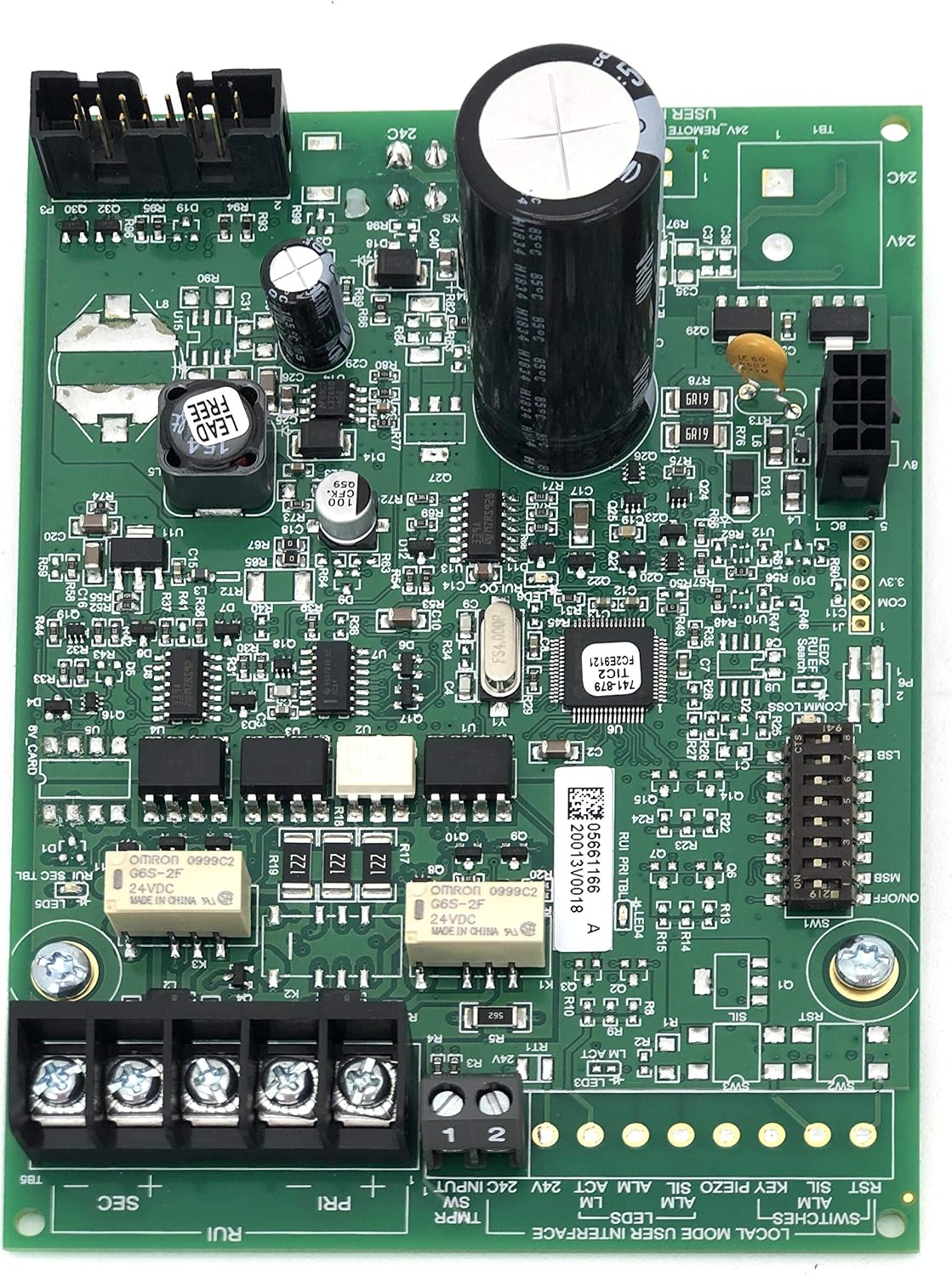

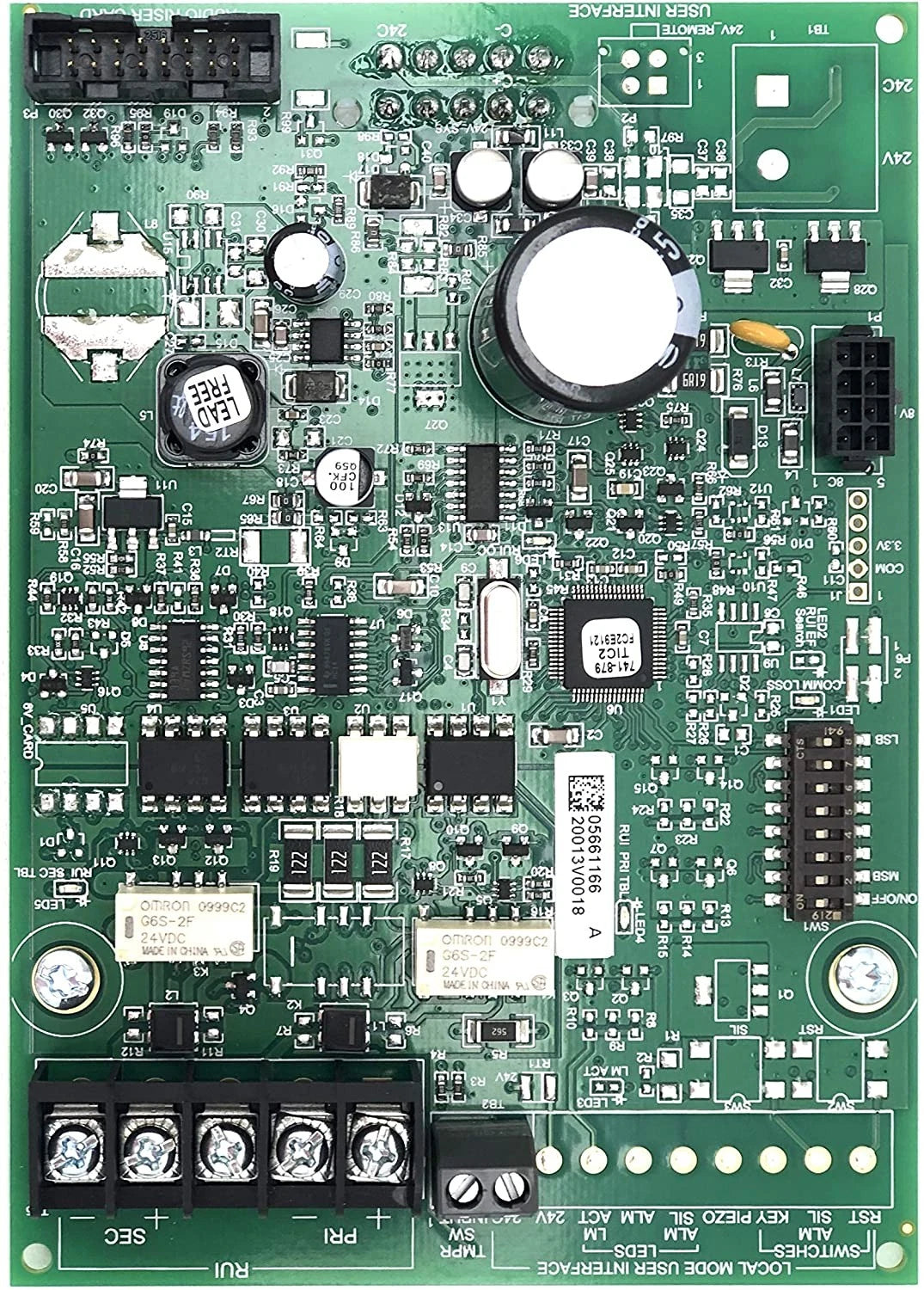

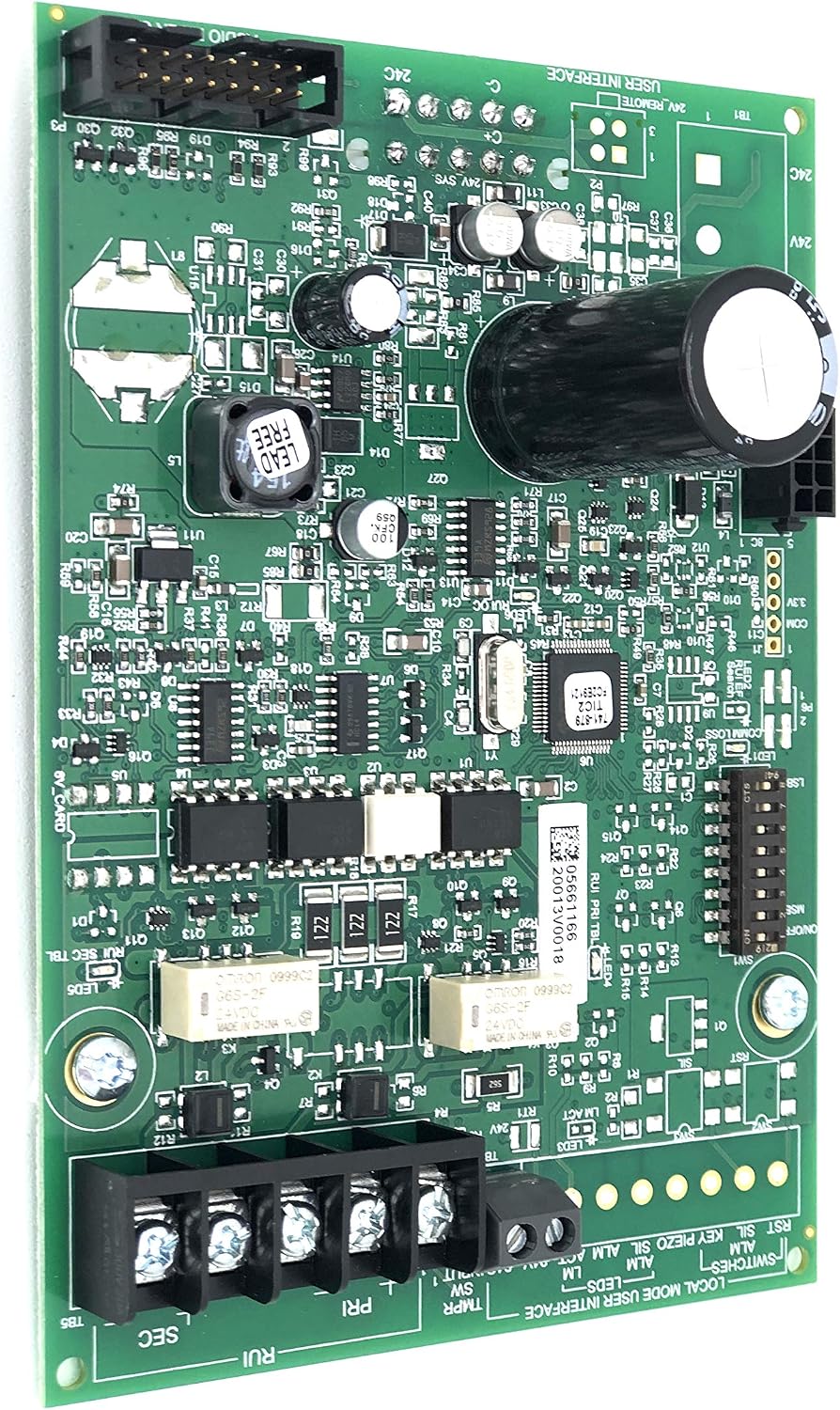

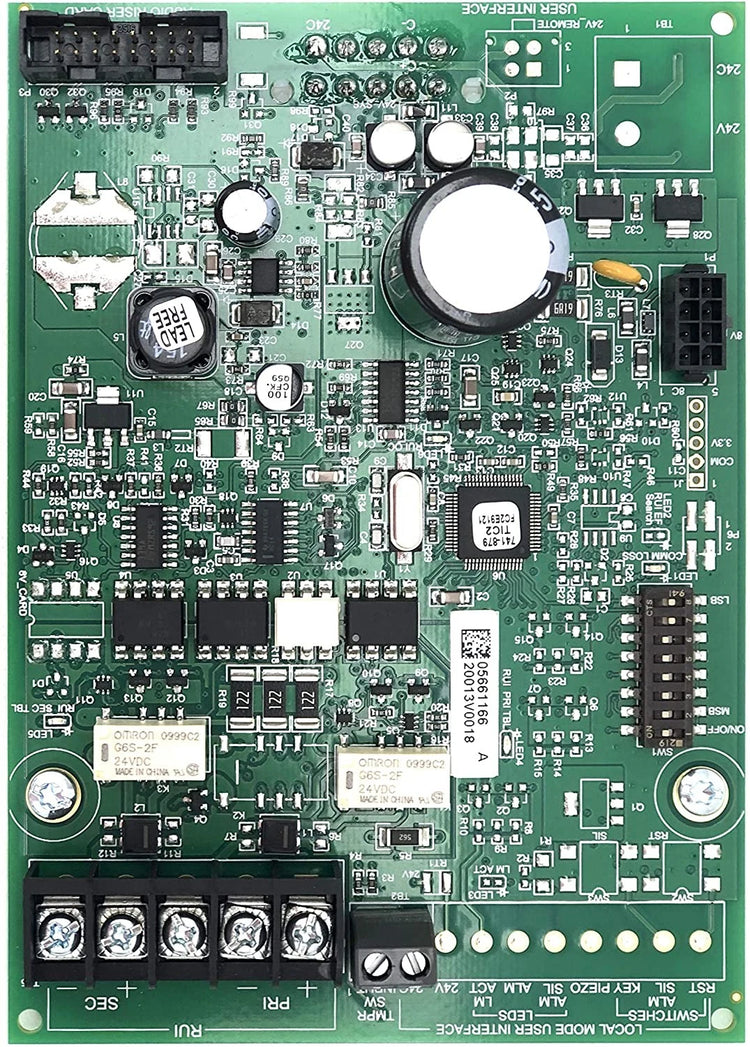

Simplex 4100-0620 Basic Transponder Interface Card for 4100ES and 4100U Fire Alarm Systems
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4100-0620
Description
The Simplex 4100-0620 is a Basic Transponder Interface Card (TIC) designed to provide communications between a remote transponder cabinet and a compatible Simplex 4100-series fire alarm control system. Simplex part number 4100-0620 supports distributed fire alarm architectures where detection, notification, and control equipment must be located remotely from the host panel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm & Life Safety |
| Part Number | 4100-0620 |
| Subcategory | Transponder Interface Modules |
| Series | Simplex 4100 Series |
| Product Type | Basic Transponder Interface Card (TIC) |
| Primary Function | Remote Transponder-to-Host Panel Communications |
| Compatible Systems | Simplex 4100U and 4100ES |
| Installation Location | Remote Transponder Cabinet |
| Installation Type | Internal Panel / Electronics Bay Module |
| System Architecture | Distributed Fire Alarm Control |
| Communication Role | Transponder Interface |
| Supported Information | Alarm, Supervisory, Trouble, Status, and Control Communications |
| Application | Remote Fire Alarm System Expansion and Equipment Distribution |
| Equipment Type | OEM Printed Circuit Board / Interface Module |
| Weight | Approx. 0.5 lb |
Information About 4100-0620
The 4100-0620 is a Simplex 4100-series Basic Transponder Interface Card used as the communications interface within compatible remote transponder assemblies. It is designed for integration with Simplex 4100U and 4100ES fire alarm platforms and allows remotely located equipment cabinets to exchange system information with the host fire alarm control panel. The card installs within the transponder electronics bay and interfaces with the system's internal communications architecture, allowing compatible local modules and field circuits to operate as part of the centralized fire alarm network. This distributed configuration is particularly useful in high-rise buildings, campuses, industrial facilities, and multi-building installations where fire alarm equipment must be positioned closer to field devices while remaining under central system control.
Key Features:
- Basic Transponder Interface: Provides the primary communications interface for a compatible Simplex remote transponder cabinet.
- 4100-Series Compatibility: Designed for use with compatible Simplex 4100U and 4100ES fire alarm system configurations.
- Remote Cabinet Integration: Connects remotely located transponder electronics with the host fire alarm control panel.
- Distributed System Architecture: Supports placement of fire alarm modules and field interfaces away from the main control cabinet.
- Internal System Communications: Exchanges command, status, alarm, supervisory, and trouble information with the host system.
- Panel-Mounted Design: Installs directly within the electronics bay of a compatible Simplex transponder cabinet.
- Module Communication Support: Allows compatible modules installed at the remote transponder to participate in centralized system operation.
- Large-Site Application: Supports system layouts used in high-rise buildings, campuses, industrial complexes, and other geographically distributed facilities.
- Reduced Field Wiring Requirements: Allows system electronics to be positioned closer to field circuits rather than routing all device wiring back to the main panel.
- System Expansion Support: Provides an interface point for expanding compatible 4100-series installations through remote transponder equipment.
- OEM System Component: Designed as a Simplex board-level component for compatible fire alarm control and transponder assemblies.
The 4100-0620 delivers the reliability and precision required for communications between remote transponder equipment and compatible Simplex 4100-series fire alarm control systems.
