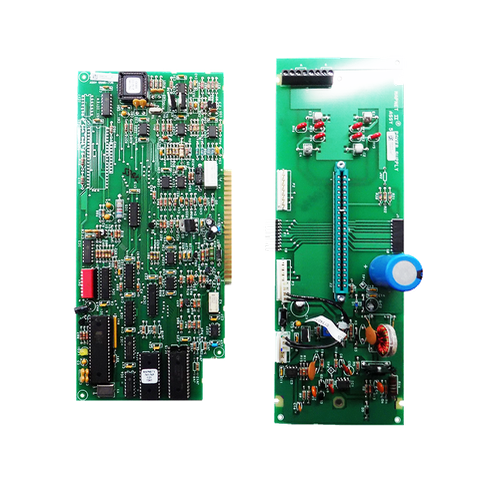

Simplex 4100-3102 MAPNET II 127-Point Addressable Interface Module
- Regular price
- $645.00
- Sale price
- $645.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4100-3102
Description
The Simplex 4100-3102 is a MAPNET II addressable interface module designed for compatible Simplex 4100 Series fire alarm control systems. It provides communication with up to 127 addressable MAPNET II devices and occupies two module slots within the fire alarm control unit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm System Components |
| Part Number | 4100-3102 |
| Subcategory | MAPNET II Interface Modules |
| Product Series | 4100 Series |
| Module Type | MAPNET II Addressable Interface Module |
| Maximum Addressable Points | 127 |
| Communication Protocol | MAPNET II |
| Wiring Configuration | Class A or Class B |
| Module Size | 2 slots |
| Device Loading | 1.7 mA per MAPNET II device |
| Module Standby Current | 255 mA |
| Module Alarm Current | 275 mA |
| Fully Loaded Standby Current | 471 mA |
| Fully Loaded Alarm Current | 491 mA |
| Installation Location | CPU bay or expansion bay |
| Assembly Configuration | Motherboard and daughter card |
| System Application | Addressable fire alarm detection and control |
| Weight | 1 lb |
Information About 4100-3102
The 4100-3102 is part of the Simplex 4100 Series addressable interface module family and provides a MAPNET II signaling line interface. The module uses a two-card transceiver assembly consisting of a motherboard and daughter card installed within a compatible CPU or expansion bay. It supports up to 127 MAPNET II addressable devices, with each connected device contributing approximately 1.7 mA of loading. The module supports either Class A or Class B wiring for the connected MAPNET II circuit.
Key Features:
- MAPNET II Interface: Provides addressable communication between a Simplex 4100 control panel and MAPNET II field devices.
- 127-Point Capacity: Supports up to 127 addressable MAPNET II devices on the interface.
- Two-Slot Module: Occupies two module slots within the compatible Simplex fire alarm control unit.
- Class A/B Wiring: Supports either Class A or Class B MAPNET II circuit configurations.
- Transceiver Architecture: Uses a motherboard and daughter-card configuration for MAPNET II communication.
- Device Loading: Each MAPNET II device contributes approximately 1.7 mA of circuit loading.
- Supervised Operation: Provides monitored communication between the control panel and connected addressable devices.
- 4100 Series Compatibility: Designed for use with compatible Simplex 4100 Series fire alarm control systems.
The 4100-3102 delivers the reliability and precision required for addressable fire alarm device communication and MAPNET II circuit management.
