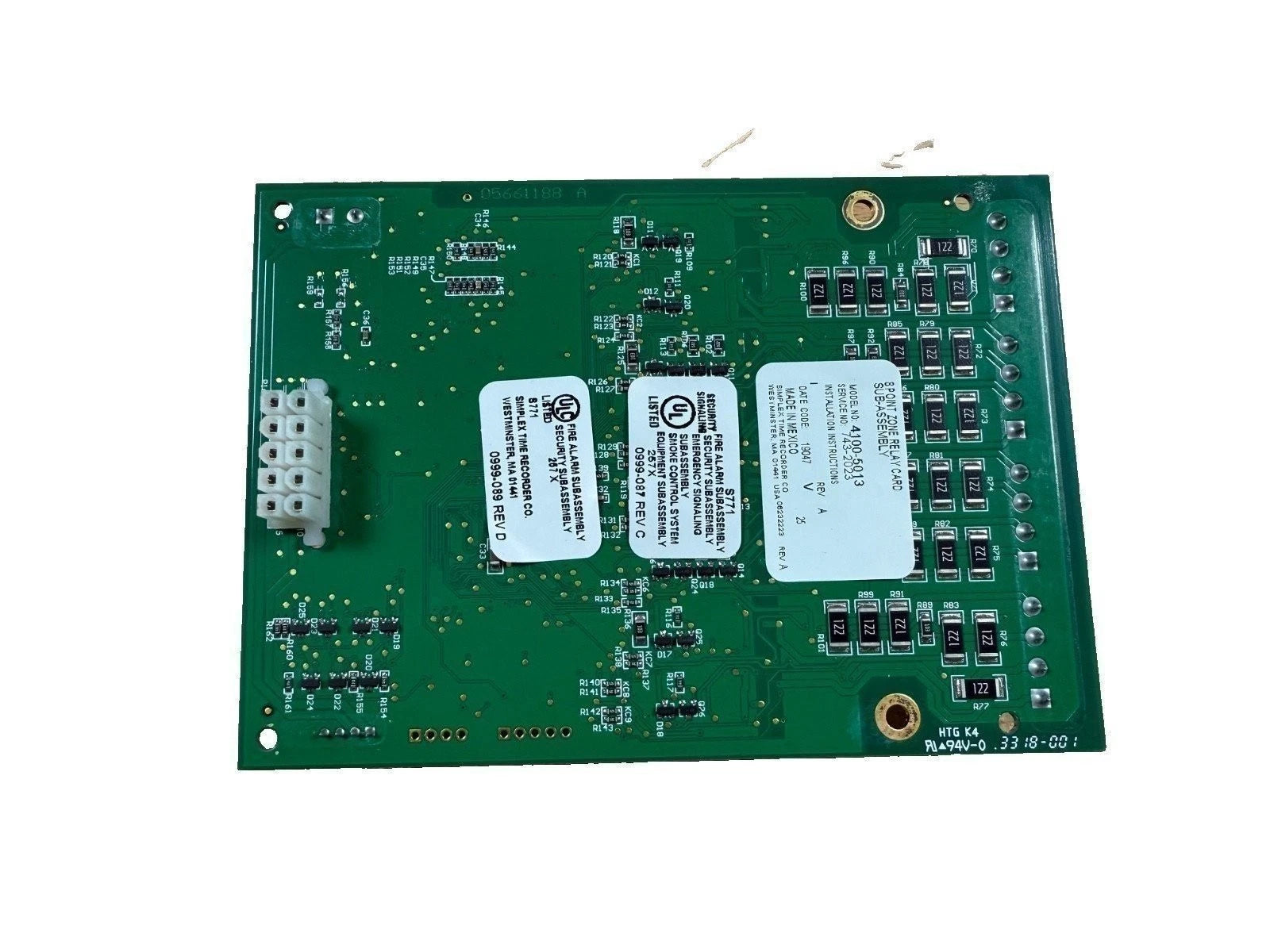

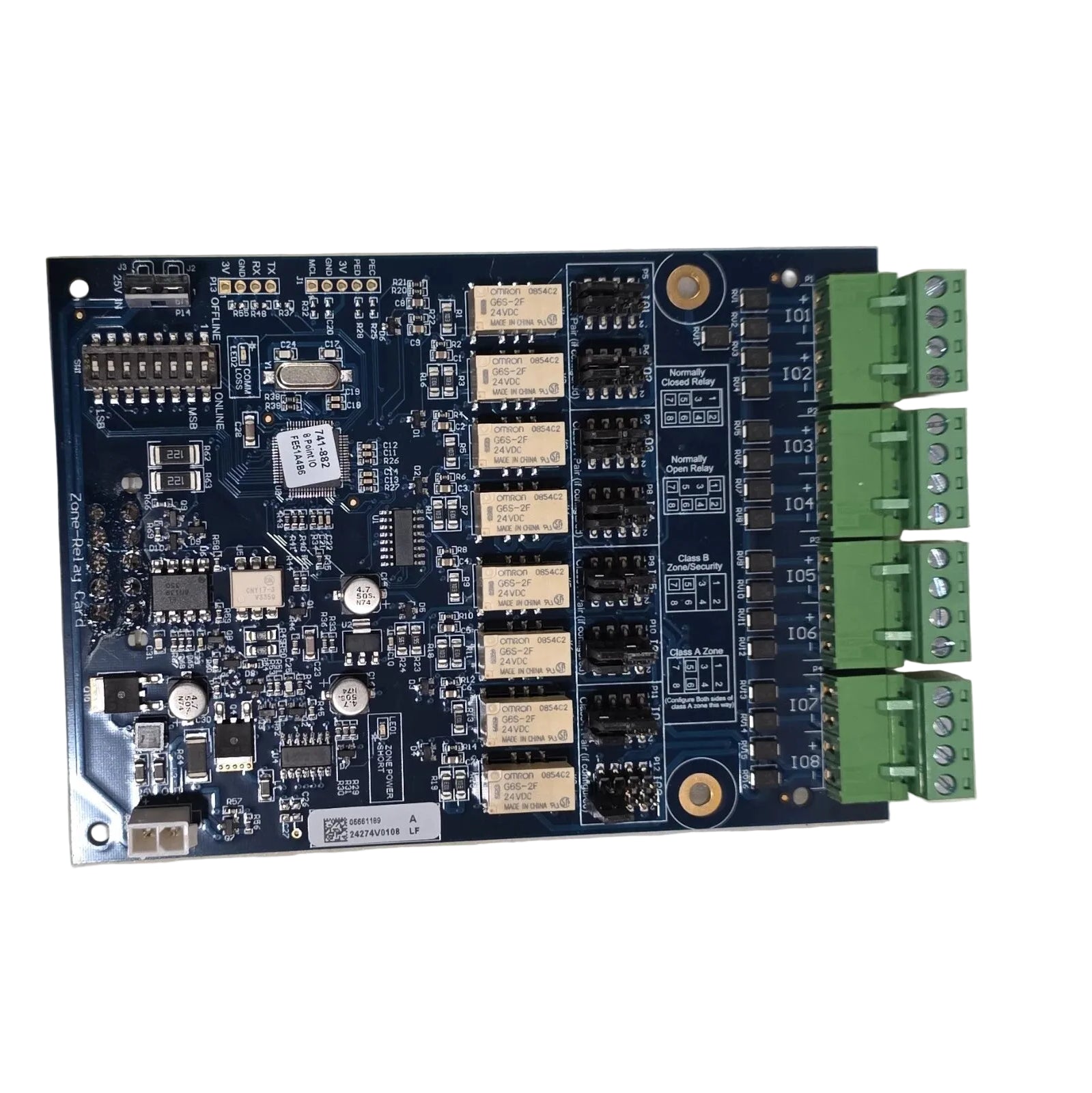

Simplex 4100-5013 8-Point Zone Relay Module for 4100 Fire Alarm Panels
- Regular price
- $367.00
- Sale price
- $367.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4100-5013
Description
The Simplex 4100-5013 is an 8-point zone/relay module designed to expand the initiating device circuit capacity of compatible Simplex 4100 fire alarm control panels. Supporting up to eight Class B or four Class A IDCs, the module provides flexible zone monitoring for commercial and institutional life safety systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4100-5013 |
| Subcategory | Fire Alarm Zone/Relay Module |
| Series | 4100 |
| Product Type | 8-Point Zone/Relay Module |
| Supported Circuits | 8 Class B IDCs or 4 Class A IDCs |
| Circuit Type | Supervised Initiating Device Circuits (IDC) |
| Module Dimensions | 4 × 5 in. flat module |
| Mounting Location | Master controller or expansion bay |
| End-of-Line Resistor | 3.3 kΩ |
| System Compatibility | Simplex 4100 fire alarm control panels |
| Primary Function | Fire alarm zone expansion |
| Circuit Supervision | Alarm, trouble, open, and short circuit monitoring |
| Application | Commercial and institutional fire alarm systems |
| Installation | Internal panel module |
| Weight | Approximately 0.8 lb (0.36 kg) |
Information About 4100-5013
The 4100-5013 is part of the Simplex 4100 series modular fire alarm platform, engineered to increase the number of supervised initiating device circuits within compatible control panels. Installed in a master controller or expansion bay, the module supports both Class B and Class A wiring configurations, allowing system designers to meet a variety of installation requirements. Each circuit continuously supervises connected initiating devices for alarm, trouble, and normal conditions while maintaining reliable communication with the host control panel. Its modular architecture simplifies future system expansion, making it well suited for commercial buildings, healthcare facilities, educational campuses, and industrial applications.
Key Features:
- Eight-Point Expansion: Supports up to eight supervised initiating device circuits.
- Class A/Class B Wiring: Configurable for eight Class B or four Class A IDCs.
- Modular Design: Installs in compatible 4100 master controller or expansion bays.
- Fire Alarm Zone Monitoring: Continuously supervises connected initiating devices.
- Flexible System Expansion: Increases control panel zone capacity without replacing the main panel.
- Compact Module Size: 4 × 5-inch flat module conserves panel space.
- Commercial Compatibility: Designed for Simplex 4100 fire alarm systems.
- Continuous Supervision: Monitors circuits for alarm, trouble, and open or short conditions.
- Reliable Integration: Communicates directly with the host fire alarm controller.
- Simplified Installation: Plug-in module design reduces installation time.
- Scalable Architecture: Supports future expansion of commercial fire alarm systems.
- Industrial-Grade Construction: Engineered for continuous life safety operation.
The 4100-5013 delivers the reliability and precision required for expanding initiating device circuit capacity in commercial fire alarm systems.
