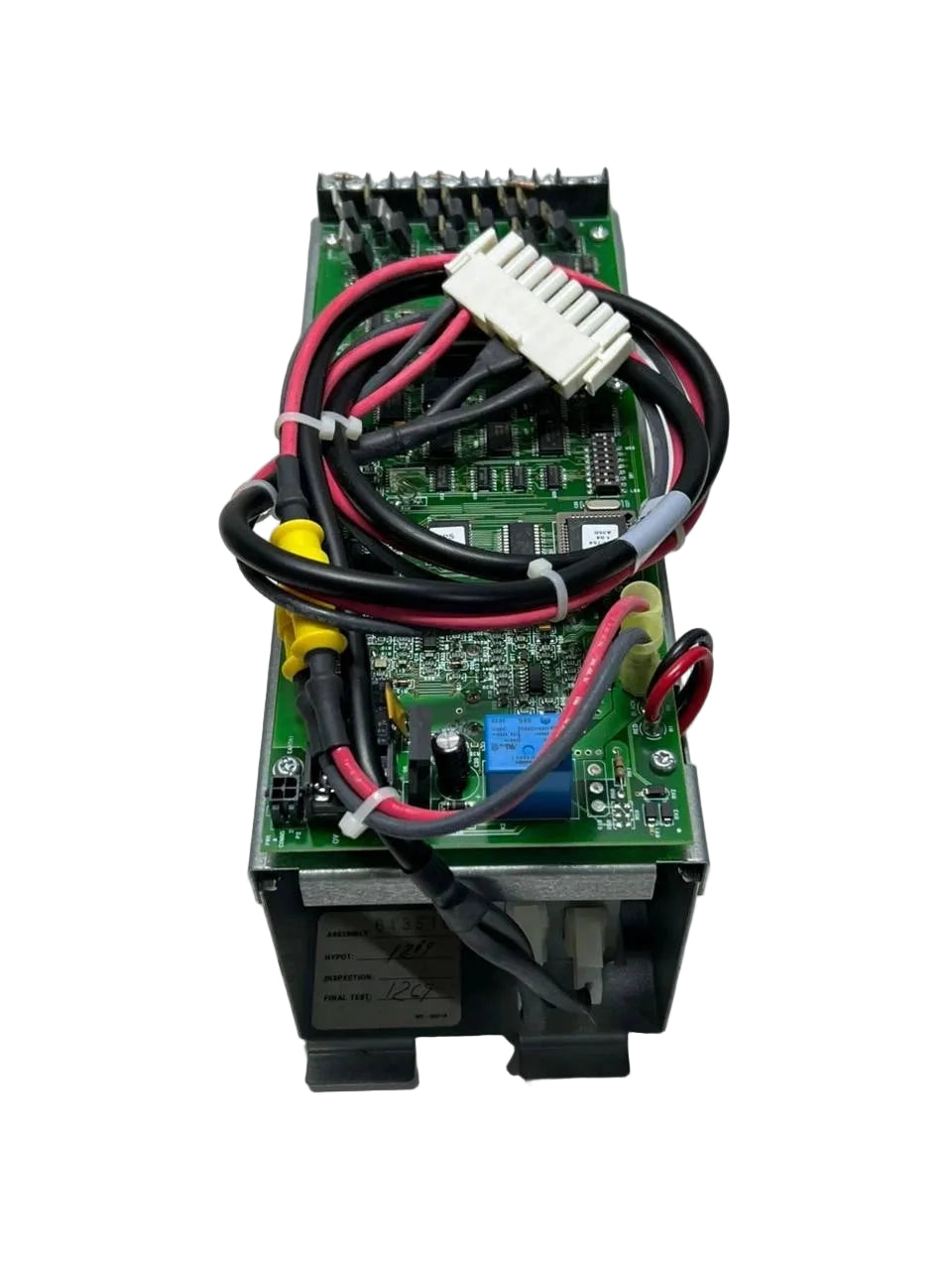

Simplex 4100-5102 9A XPS Expansion Power Supply with 3 NACs for 4100U and 4100ES
- Regular price
- $3,377.00
- Sale price
- $3,377.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4100-5102
Description
The Simplex 4100-5102 is an Expansion Power Supply (XPS) designed to provide additional power distribution and Notification Appliance Circuit capacity for compatible Simplex 4100U and 4100ES fire alarm control systems. Simplex part number 4100-5102 provides three onboard NACs with up to 9 A total output capacity and supports expansion to six NACs using the optional 4100-5115 Expansion NAC Module.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm & Life Safety |
| Part Number | 4100-5102 |
| Subcategory | Fire Alarm Expansion Power Supplies |
| Series | Simplex 4100 Series |
| Product Type | Expansion Power Supply (XPS) |
| Compatible Systems | Simplex 4100U and 4100ES |
| Onboard NACs | 3 |
| Maximum NACs with Expansion | 6 with 4100-5115 XNAC Module |
| Maximum Output per NAC | 3 A |
| Total Power Supply Capacity | 9 A Maximum Combined Load |
| Regulated 24 VDC Capacity | Up to 4 A Across 3 Circuits |
| Special-Application Capacity | Up to 9 A Across 3 Circuits |
| Auxiliary Power Output | Up to 2 A per Configured Auxiliary Output |
| NAC Wiring Configuration | Class A or Class B |
| Power Distribution Interface | Simplex PDI |
| Circuit Supervision | Open-Circuit and Short-Circuit Monitoring |
| Earth Fault Detection | 10 kΩ Minimum Detection Resistance |
| Backup Power | System Battery Backup via Power Distribution Module |
| Weight | Approx. 3.0 lb |
Information About 4100-5102
The 4100-5102 is a Simplex 4100 Series Expansion Power Supply that distributes card power and signal power through the system Power Distribution Interface (PDI). It is compatible with 4100U and 4100ES architectures and installs within an expansion bay where additional notification and auxiliary power capacity is required. Three onboard NACs can be configured for Class A or Class B operation, auxiliary power service, regulated 24 VDC loads, or compatible special-application notification appliances, while an optional 4100-5115 XNAC module adds three additional circuits. Integrated supervision monitors NAC wiring, power conditions, battery operation, and earth faults to support reliable operation in commercial and institutional life-safety installations.
Key Features:
- Expansion Power Supply: Adds notification, auxiliary, card, and signal power capacity to compatible Simplex 4100-series systems.
- Three Onboard NACs: Provides three supervised Notification Appliance Circuits rated for up to 3 A per circuit.
- Six-Circuit Expansion: Accepts the optional Simplex 4100-5115 XNAC module to increase capacity from three to six NACs.
- 9 A Total Capacity: Supports a combined load of up to 9 A across NAC, auxiliary, card, and signal power functions.
- Class A or Class B Wiring: NACs can be configured to support either Class A or Class B field circuit arrangements.
- Regulated 24 VDC Operation: Provides regulated notification power with up to 4 A available across the three onboard circuits when used in regulated mode.
- Special-Application Power: Supports compatible special-application notification appliances with the full available 9 A supply capacity.
- Auxiliary Power Configuration: Individual NAC outputs can be configured as auxiliary power points rated for up to 2 A.
- PDI Power Distribution: Supplies card and signal power through the Simplex Power Distribution Interface within the expansion bay.
- Circuit Supervision: Detects open and short-circuit conditions on supervised NAC field wiring and de-energizes an affected output during a short.
- Miswiring Diagnostic Test: Supports testing procedures that help identify shorted or incorrectly wired notification circuits.
- Earth Fault Detection: Monitors connected XPS wiring for ground faults with a minimum earth-fault detection resistance of 10 kΩ.
The 4100-5102 delivers the reliability and precision required for expanding notification appliance and auxiliary power capacity in Simplex 4100U and 4100ES fire alarm systems.
