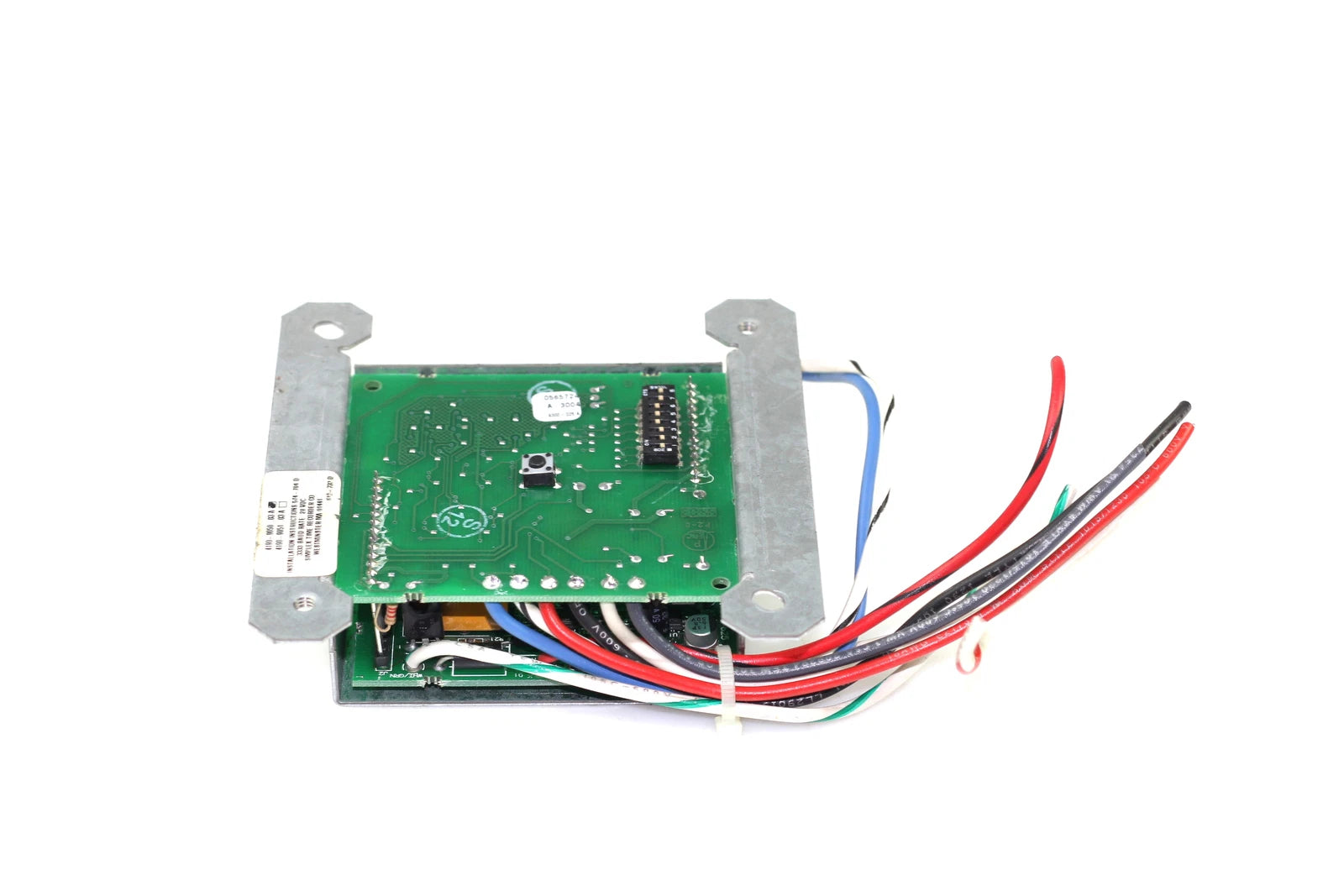

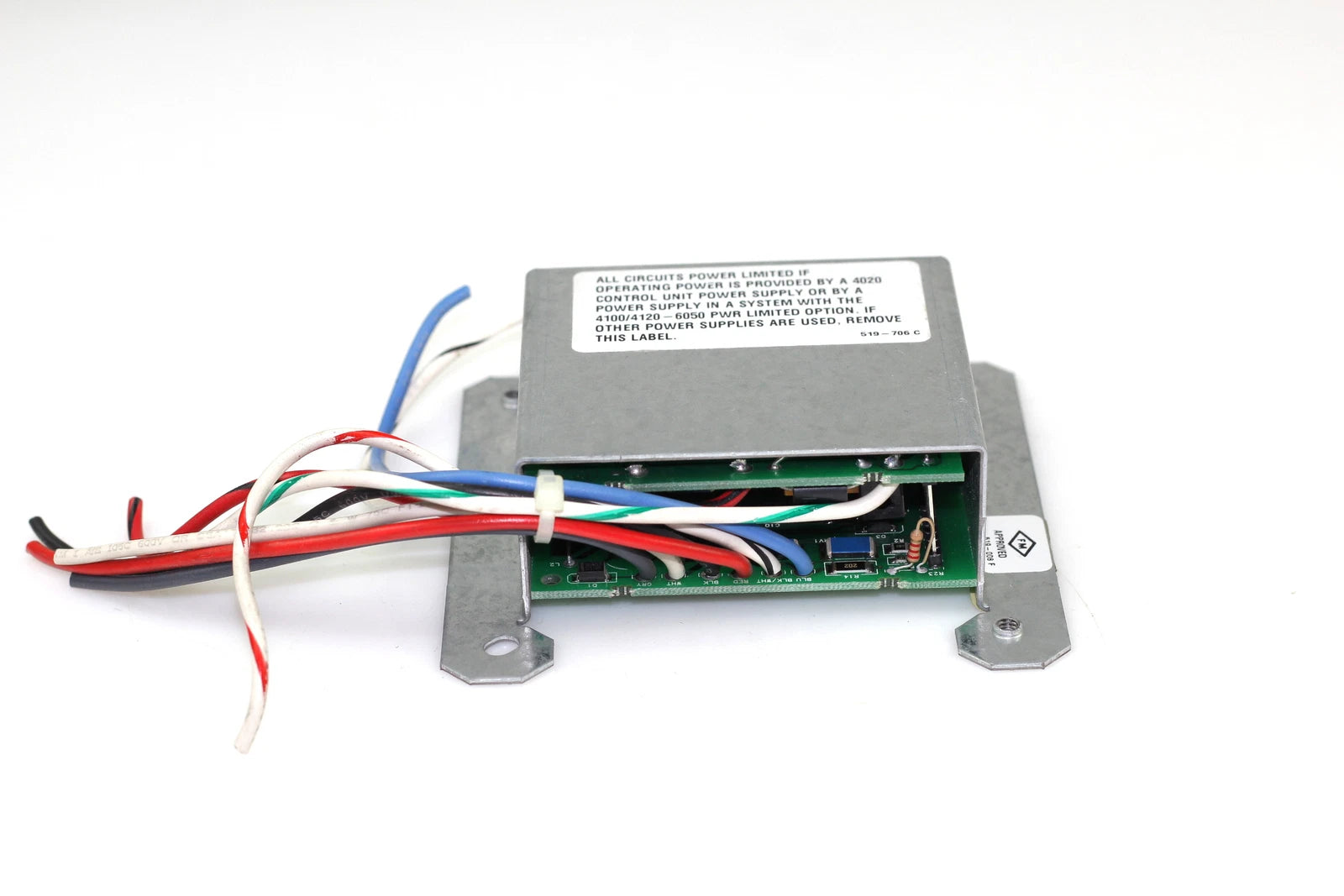

Simplex 4190-9050 Remote Analog Monitor Zone Adapter Module 4-20 mA Interface
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4190-9050
Description
The Simplex 4190-9050 is a remote Analog Monitor Zone Adapter (AMZ) designed to interface compatible 4–20 mA analog sensors with Simplex addressable fire alarm control panels. It converts sensor measurements into digital information for monitoring, annunciation, and event logging through IDNet or MAPNET II communications. The module is suited for environmental monitoring applications where analog sensor data must be integrated into a fire detection system.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 4190-9050 |
| Subcategory | Analog Monitor Zone Adapter Modules |
| Device Type | Remote Analog Monitor Zone Adapter (AMZ) |
| Sensor Compatibility | Compatible 4–20 mA analog output sensors |
| Communication Protocols | IDNet and MAPNET II |
| Compatible Control Panels | Simplex 4007ES, 4010ES, 4100ES, 4100U |
| Address Requirement | One address (two IDNet unit loads) |
| Programmable Thresholds | Up to three configurable threshold levels |
| Sensor Connections | Supports 2-wire, 3-wire, and 4-wire sensors |
| Operating Voltage | 18–32 VDC (24 VDC nominal) |
| Sensor Power Output | Resettable, 400 mA maximum |
| Sensor Loop Current | 4–20 mA |
| Basic Module Current | 30 mA |
| Maximum Distance to Sensor | 3270 ft (1 km) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10% to 90% RH, non-condensing |
| Mounting | Surface mount, 4 in. (102 mm) square electrical box with extension |
| Wire Leads | Color-coded 18 AWG (0.82 mm²) |
| Weight | 1.2 lb (0.54 kg) |
Information About 4190-9050
The 4190-9050 is a surface-mounted Analog Monitor Zone Adapter from the Simplex multi-application peripheral family. It provides an intelligent interface between compatible 4–20 mA output sensors and supported Simplex fire alarm control panels, enabling continuous monitoring of environmental conditions such as air quality, temperature, humidity, and air velocity. The module supports programmable threshold levels, custom point types, sensor calibration records, and supervised sensor monitoring while communicating over IDNet or MAPNET II signaling circuits. Designed for installation in a 4-inch square electrical box with an extension, it accommodates 2-wire, 3-wire, and 4-wire sensor configurations.
Key Features:
- 4–20 mA Sensor Interface: Connects compatible analog sensors to Simplex fire alarm systems.
- IDNet & MAPNET II Communication: Supports digital communication with compatible addressable control panels.
- Three Programmable Thresholds: Allows up to three independently configurable alarm levels with custom action messages.
- Real-Time Analog Monitoring: Displays and archives actual sensor measurement values at the control panel.
- Integrated Self-Test: Includes automatic diagnostics and an onboard manual WALKTEST switch.
- Supervised Sensor Monitoring: Detects abnormal loop current and supervises sensor trouble contacts.
- Resettable Sensor Power Output: Supplies resettable power for connected 3-wire and 4-wire sensors.
- Flexible Installation: Supports 2-wire, 3-wire, and 4-wire sensor connections in a surface-mounted enclosure.
The 4190-9050 delivers the reliability and precision required for integrating analog environmental sensors into addressable fire alarm monitoring systems.
