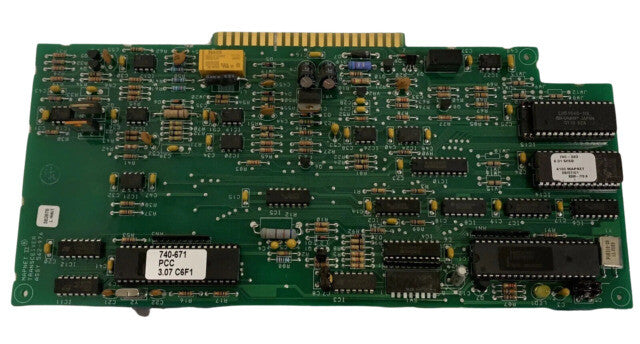

Simplex 562-976 MAPNET II Transceiver Board For 4100 Series Fire Alarm Systems
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 562-976
Description
The Simplex 562-976 is a MAPNET II Transceiver Board designed to provide addressable communication between Simplex 4100 Series fire alarm control panels and connected field devices. It enables reliable data exchange over MAPNET II signaling circuits, supporting system expansion and accurate monitoring of addressable fire alarm components.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 562-976 |
| Subcategory | MAPNET II Transceiver Board |
| Product Type | Addressable Communication Interface Board |
| Series Compatibility | Simplex 4100 Series |
| Communication Protocol | MAPNET II |
| Function | Addressable device communication and supervision |
| Application | Fire alarm system expansion and device networking |
| Wiring Support | Class A and Class B signaling line configurations |
| Installation Type | Fire alarm control panel internal module |
| Communication Interface | MAPNET II Signaling Line Circuit |
| Supported Devices | Simplex MAPNET II addressable field devices |
| System Role | Panel-to-device communication interface |
| Mounting Location | Simplex control panel equipment cabinet |
| Board Dimensions | Approximately 12 x 6 x 4 in. |
| Weight | Approximately 1.5 lb (0.68 kg) |
Information About 562-976
The 562-976 is a Simplex MAPNET II communication module developed for integration with compatible 4100 Series fire alarm control panels. The transceiver board manages communication between the control panel and addressable devices connected through the MAPNET II signaling line circuit. It supports reliable device supervision and control while allowing Class A and Class B wiring configurations depending on system design. The module is used in commercial, institutional, and industrial fire alarm installations where expanded addressable device connectivity is required.
Key Features:
- MAPNET II Communication: Provides addressable data communication between Simplex panels and connected field devices.
- 4100 Series Compatibility: Designed for use with compatible Simplex 4100 fire alarm control systems.
- Addressable Device Support: Enables monitoring and control of MAPNET II connected devices.
- Class A and Class B Support: Supports flexible signaling line circuit wiring configurations.
- System Expansion Capability: Allows additional addressable devices to be integrated into existing fire alarm networks.
- Reliable Data Transmission: Maintains stable communication between field devices and the control panel.
- Fire Alarm Integration: Works as a dedicated communication interface within Simplex life safety systems.
- Durable Board Construction: Designed for continuous operation in commercial fire protection environments.
- Panel-Level Monitoring: Supports individual device supervision through the connected fire alarm control panel.
- Retrofit Compatibility: Suitable for maintenance, replacement, and upgrades of existing Simplex systems.
The 562-976 delivers the reliability and precision required for addressable fire alarm communication and MAPNET II network expansion.
