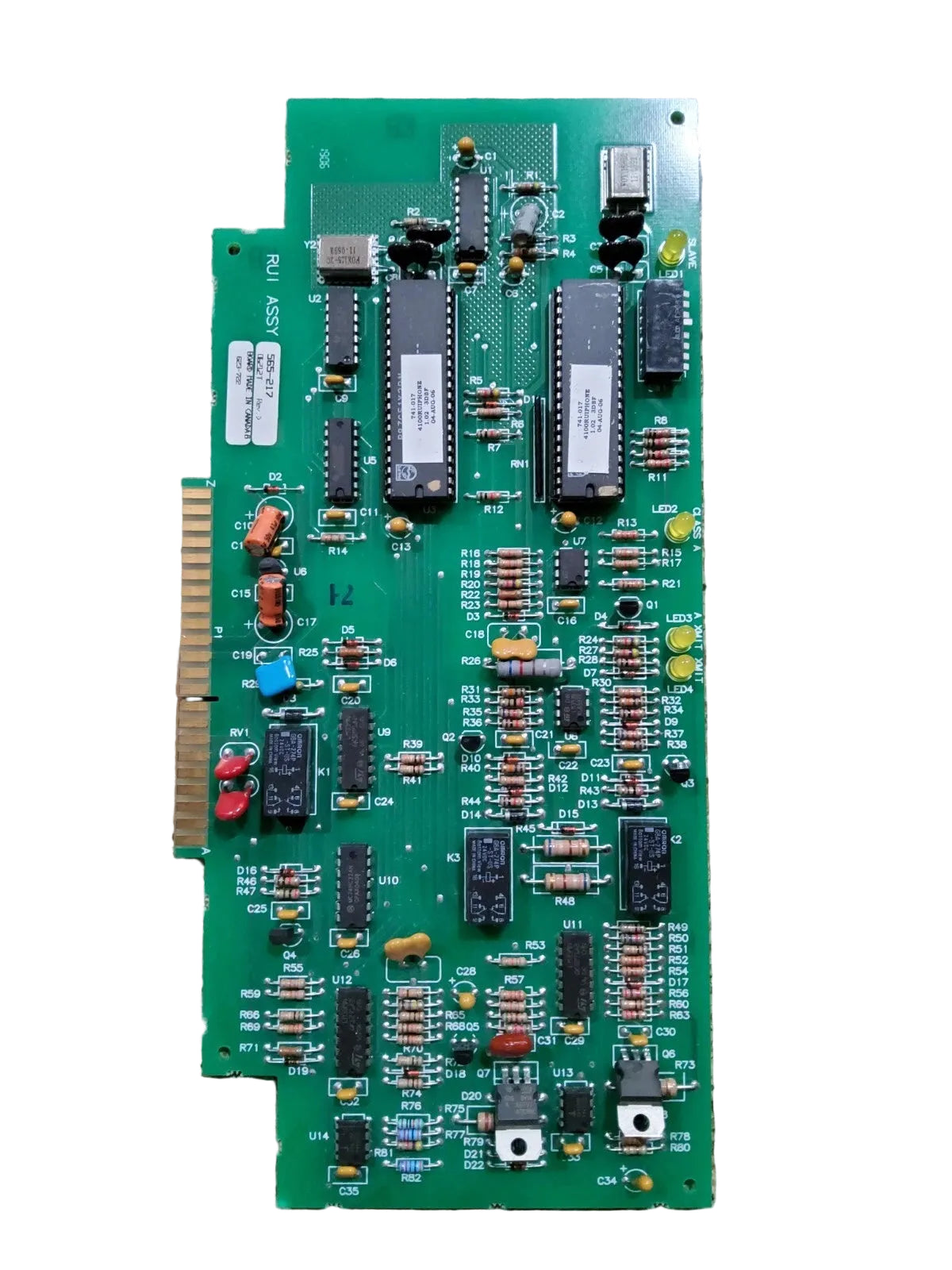

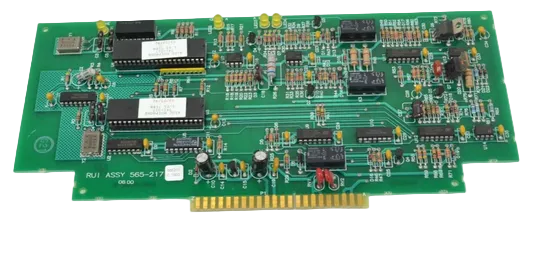

Simplex 565-217 Class A Remote Unit Interface Board
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 565-217
Description
The Simplex 565-217 is a Class A Remote Unit Interface (RUI) Board designed for use with Simplex 4100 Series fire alarm control panels. It extends the panel's serial communication network, enabling reliable Class A communication with remote annunciators, transponders, and other compatible remote devices while maintaining system integrity during wiring faults.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 565-217 |
| Subcategory | Communication Interface Boards |
| Product Type | Class A Remote Unit Interface (RUI) Board |
| Compatible Systems | Simplex 4100 / 4100+ Fire Alarm Control Panels |
| Communication Type | Half-duplex serial RUI |
| Communication Modes | Class A, Class B, Style 7 (with RIC II 565-233) |
| Baud Rates | 1200 or 9600 bps (DIP switch selectable) |
| Maximum Communication Distance | 2,500 ft (762 m) |
| Compatible Devices | Remote annunciators, MINIPLEX transponders, RIC II, remote controllers |
| Configuration | 8-position DIP switch |
| Status Indicators | Four diagnostic LEDs |
| Application | Remote communication expansion for fire alarm systems |
| Weight | 0.8 lb (0.36 kg) |
Information About 565-217
The 565-217 is an expansion communication board that provides the Remote Unit Interface (RUI) for Simplex 4100 and 4100+ fire alarm systems. It supports Class A, Class B, and Style 7 communication configurations when used with the compatible Remote Interface Controller (RIC II, part number 565-233), allowing flexible installation in commercial and industrial facilities. The board provides half-duplex serial communications with selectable baud rates and supports communication distances of up to 2,500 ft (762 m) on a single run. Integrated diagnostic LEDs simplify troubleshooting by indicating communication status and line fault conditions.
Key Features:
- Class A RUI Communication: Provides reliable Remote Unit Interface communications for Simplex 4100 systems.
- 4100 Series Compatibility: Designed for Simplex 4100 and 4100+ fire alarm control panels.
- Flexible Wiring: Supports Class A, Class B, and Style 7 configurations with a compatible RIC II.
- Half-Duplex Serial Interface: Enables dependable communication with remote system devices.
- Configurable Baud Rate: Supports 1200 or 9600 baud operation via DIP switch settings.
- Long Communication Distance: Supports cable runs up to 2,500 ft (762 m).
- Diagnostic Indicators: Multiple onboard LEDs identify communication and wiring faults.
- Remote Device Connectivity: Interfaces with compatible annunciators, transponders, and remote controllers.
The 565-217 delivers the reliability and precision required for dependable remote communications in Simplex 4100 fire alarm systems.
