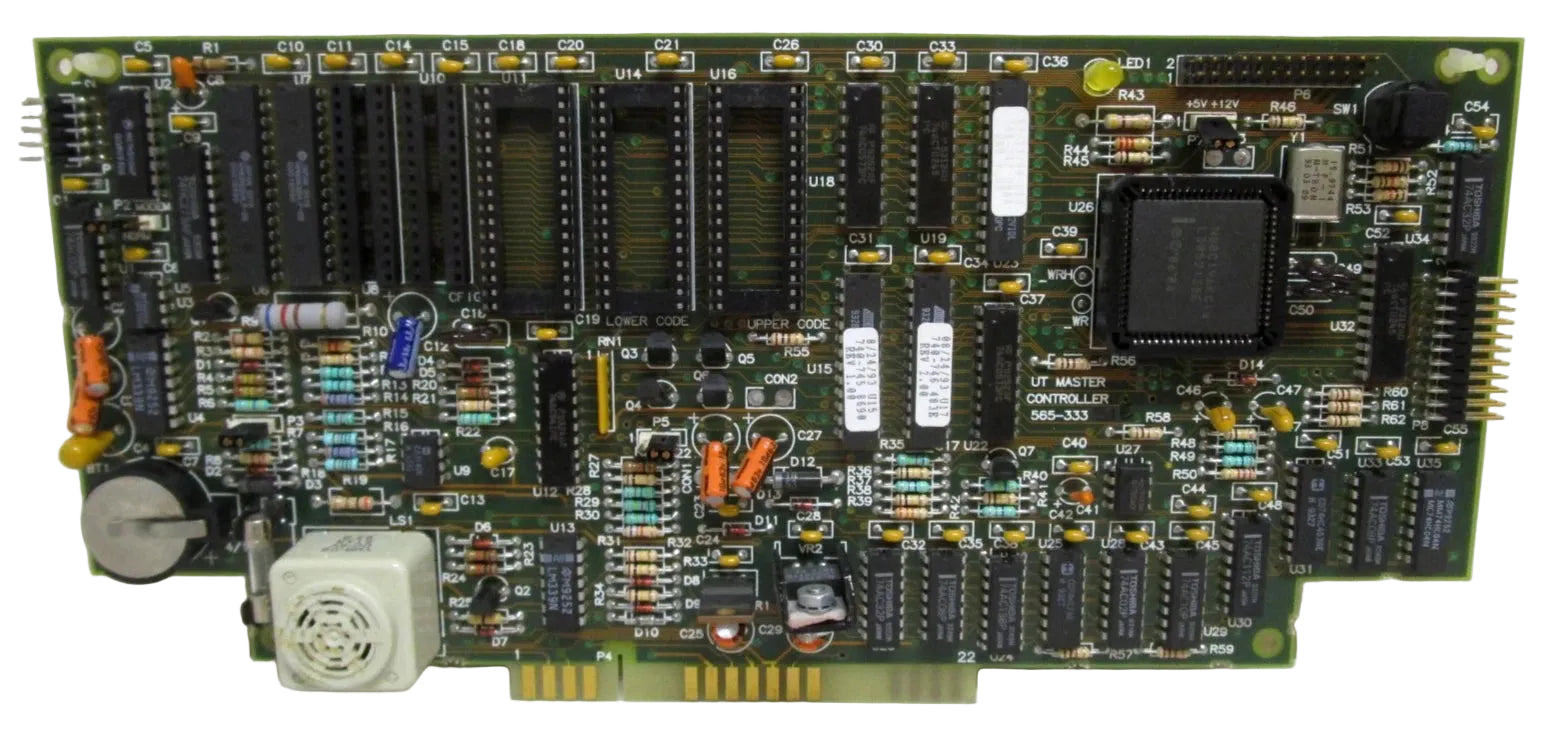

Simplex 565-333 UT Master Controller Assembly for 4100
- Regular price
- $702.00
- Sale price
- $702.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 565-333
Description
The Simplex 565-333 is a UT Master Controller Assembly designed for Simplex 4100 Universal Transponder (UT) fire alarm systems. It functions as the primary processing board, managing system operation, event processing, communications, and memory functions required for reliable fire alarm control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 565-333 |
| Subcategory | Fire Alarm Controller Boards |
| Product Type | UT Master Controller Assembly |
| Compatible System | Simplex 4100 Universal Transponder (UT) |
| Processor | Integrated microprocessor |
| Memory | System Code PROM, Flash Configuration Memory, Battery-Backed RAM |
| Communications | Internal 4100 slave communications |
| Program Interface | Programmer Port (P1) |
| Display Interface | Master Display Port |
| Power Regulation | Onboard +5 V, -5 V, and +12 V regulators |
| Status Indicators | System Trouble LED, Priority 2 LED, Alarm Silenced LED |
| Reset Function | Onboard reset switch |
| Application | Fire alarm control and system management |
| Weight | 1.0 lb (0.45 kg) |
Information About 565-333
The 565-333 is one of two UT Master Controller variants developed for the Simplex 4100 Universal Transponder platform. It incorporates the system microprocessor, flash configuration memory, battery-backed RAM, watchdog circuitry, voltage regulation, internal communications, programmer interface, and master display interface on a single controller assembly. Unlike the earlier 565-148 controller, the 565-333 supports dedicated Priority 2 and Alarm Silenced LED indicators for enhanced operator status indication. Designed for commercial and industrial life safety systems, it serves as the central processing unit for 4100 UT fire alarm installations.
Key Features:
- UT Master Controller: Primary processor assembly for Simplex 4100 Universal Transponder systems.
- Integrated Microprocessor: Controls fire alarm processing and system communications.
- Battery-Backed RAM: Preserves system configuration and event data during power loss.
- Flash Configuration Memory: Supports programmable system configuration storage.
- Master Display Interface: Connects directly to the operator display assembly.
- Programmer Port: Enables local programming and firmware servicing.
- Built-In Watchdog Circuit: Continuously monitors processor operation for dependable performance.
- Enhanced Status Indicators: Supports Priority 2 and Alarm Silenced LEDs.
The 565-333 delivers the reliability and precision required for central processing and communication within Simplex 4100 Universal Transponder fire alarm systems.
