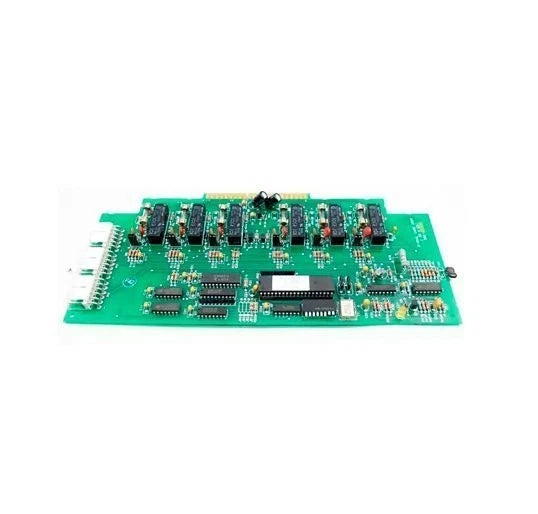

Simplex 565-452 Signal Card Assembly Board Class A Circuit Module For 4100 Fire Panels

Description

The Simplex 565-452 is a Signal Card Assembly Board designed for use with Simplex 4100 fire alarm control systems. It provides Class A notification circuit functionality, supporting reliable signal transmission and supervision for life safety applications.

Technical Specifications

Information About 565-452

The 565-452 is a Simplex 4100 series signal card assembly developed to expand and manage notification signaling functions within compatible fire alarm control panels. The board provides supervised Class A circuit operation, allowing connected notification appliances to maintain communication and fault monitoring throughout the system. It is engineered for integration into Simplex modular fire alarm architectures and supports reliable operation in commercial and institutional installations. The assembly is commonly used for system expansion, replacement, and maintenance of existing Simplex 4100 fire alarm panels.

Key Features:

• Signal Card Assembly: Provides notification circuit control within Simplex fire alarm systems.
• Class A Circuit Support: Enables supervised Class A signaling operation for connected appliances.
• Simplex 4100 Compatibility: Designed for use with compatible Simplex 4100 series control panels.
• Supervised Notification Control: Monitors circuit integrity and reports faults to the fire alarm panel.
• Modular Panel Integration: Installs directly into compatible Simplex control panel assemblies.
• Life Safety Application: Supports fire alarm notification and emergency signaling requirements.
• Reliable Signal Transmission: Provides consistent communication between panel electronics and notification devices.
• System Expansion Capability: Allows additional signaling functionality within existing installations.
• Durable PCB Construction: Designed for continuous operation in demanding fire protection environments.
• Replacement Component: Suitable for repair and maintenance of installed Simplex systems.

The 565-452 delivers the reliability and precision required for fire alarm notification circuits and Class A signaling applications.
