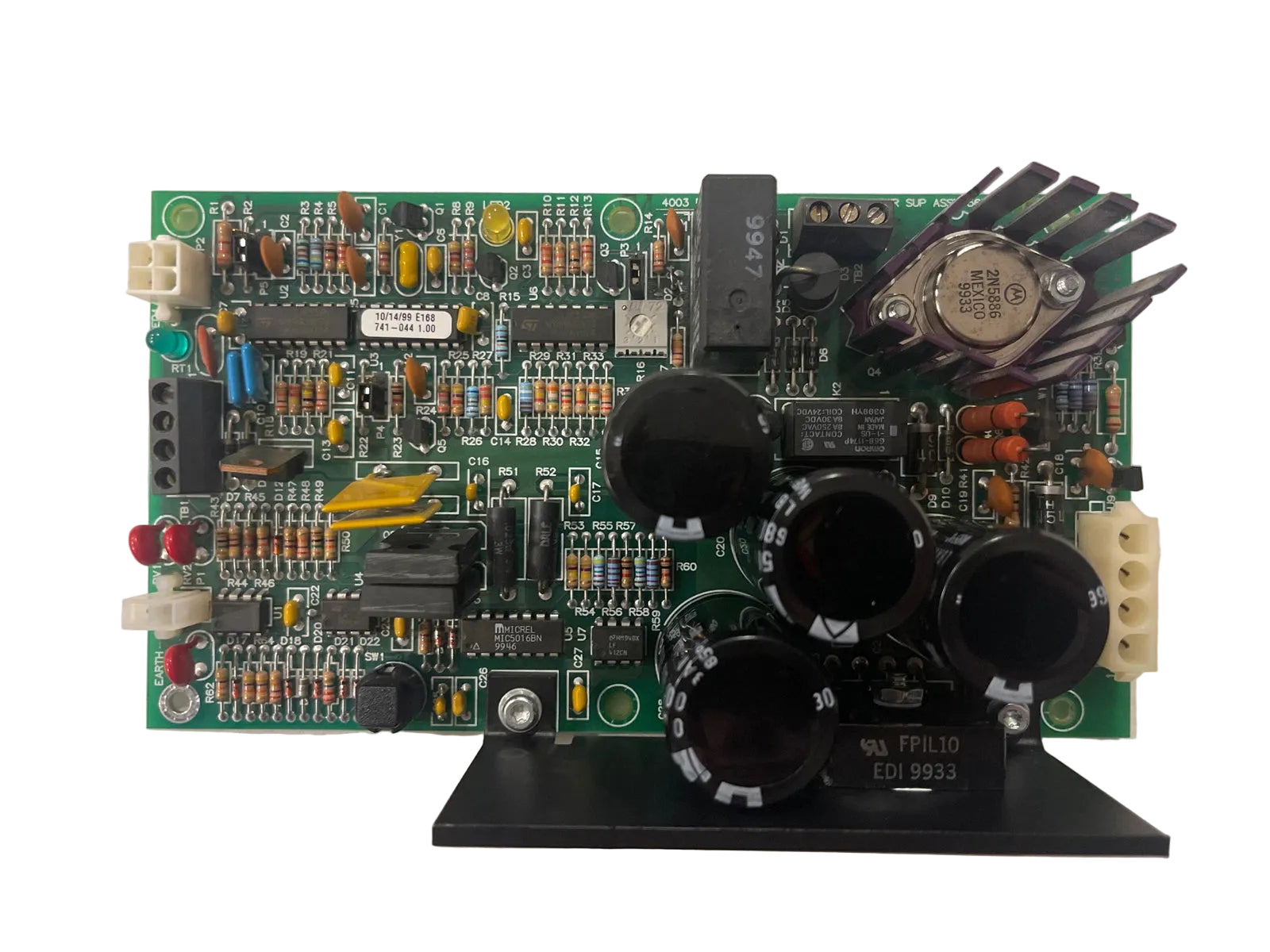

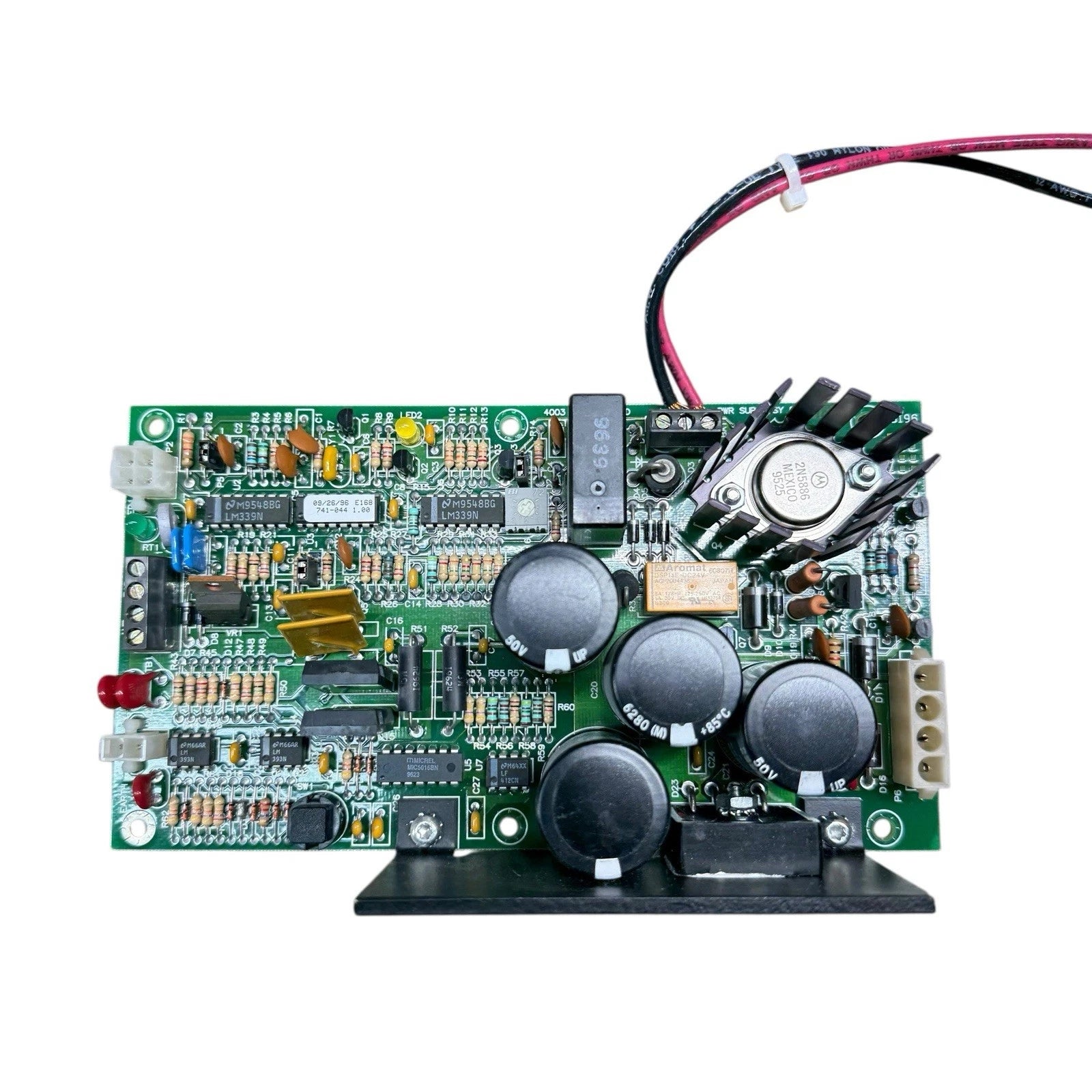

Simplex 565-488 Power-Limited Fire Alarm Power Supply Board for 4009 Notification Systems
- Regular price
- $809.00
- Sale price
- $809.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 565-488
Description
The Simplex 565-488 is a power-limited linear power supply board used in Simplex 4009 Notification Appliance Circuit Power Extender fire alarm systems. It provides system power for notification signaling circuits while supporting brownout protection, battery charging, and automatic battery switchover functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 565-488 |
| Subcategory | Power Supply Board |
| Product Type | Power-Limited Linear Power Supply Assembly |
| Compatible System | Simplex 4009 Notification Appliance Circuit Power Extender |
| Power Supply Design | Linear |
| System Signaling Capacity | Up to 8 amperes direct current in the complete 4009 configuration |
| Notification Circuit Support | Style Y Class B and Style Z Class A |
| Internal Battery Charging Capacity | Up to 10 ampere-hours |
| External Battery Charging Capacity | Up to 18 ampere-hours with compatible external battery cabinet |
| Battery Type | Lead-Acid |
| Battery Switchover | Jumper-Selectable Automatic Switchover |
| Brownout Protection | Supported |
| Alternating-Current Interface | Transformer Flying Leads with Hardwired Transformer Input |
| Compatible Signal Boards | 565-386, 565-388, 565-545, and 565-569 |
| Weight | 4 lbs |
Information About 565-488
The 565-488 is a Simplex power supply assembly associated with the 4009 Notification Appliance Circuit Power Extender platform and legacy 4003-series fire alarm equipment. Its linear power supply architecture provides operating power for connected signal cards and incorporates brownout and battery charger functions for supervised fire alarm operation. The board supports internal battery charging up to 10 ampere-hours or external battery charging up to 18 ampere-hours when used with the appropriate external battery cabinet, while jumper configuration permits external battery and charger arrangements. Unlike the 565-367 version where alternating-current power lands directly on board terminals, the 565-488 receives alternating-current input through transformer flying leads and a hardwired transformer interface.
Key Features:
- Linear Power Supply Design: Uses a linear power supply architecture developed for the Simplex 4009 Notification Appliance Circuit Power Extender.
- Signaling Power Support: Functions within a 4009 system capable of supplying up to 8 amperes of direct-current signaling power across its configured notification circuits.
- Battery Charging: Supports charging of internal lead-acid batteries up to 10 ampere-hours or external batteries up to 18 ampere-hours with the required battery cabinet.
- Brownout Protection: Incorporates brownout functionality to support continued system supervision during abnormal primary power conditions.
- Battery Switchover: Provides jumper-selectable automatic transfer to battery power when primary power is lost.
- Signal Card Power Distribution: Supplies power to compatible Style Y Class B and Style Z Class A signal card configurations within the 4009 system.
- External Battery Capability: Allows connection to external battery power, with the onboard charger disabled when the system uses an external battery source as configured.
- Hardwired Transformer Interface: The 565-488 configuration is paired with transformer assemblies using hardwired alternating-current input connections and a modular connection to the power supply board.
The 565-488 delivers the reliability and precision required for power distribution, battery charging, and standby power management in compatible Simplex fire alarm notification systems.
