Simplex 566-284 Operator Interface Board For 4100U And 4100ES Fire Alarm Panels
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 566-284
Description

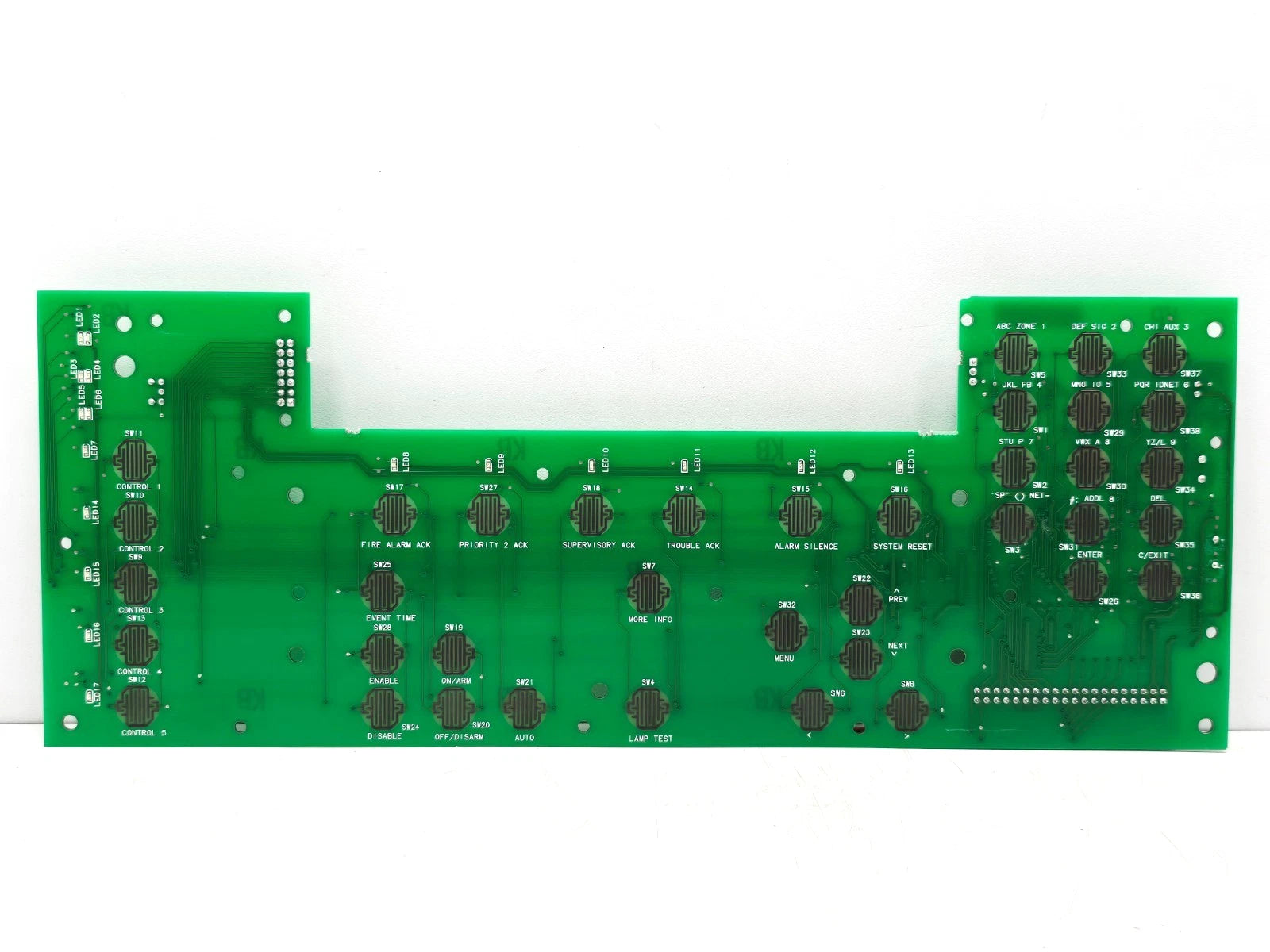

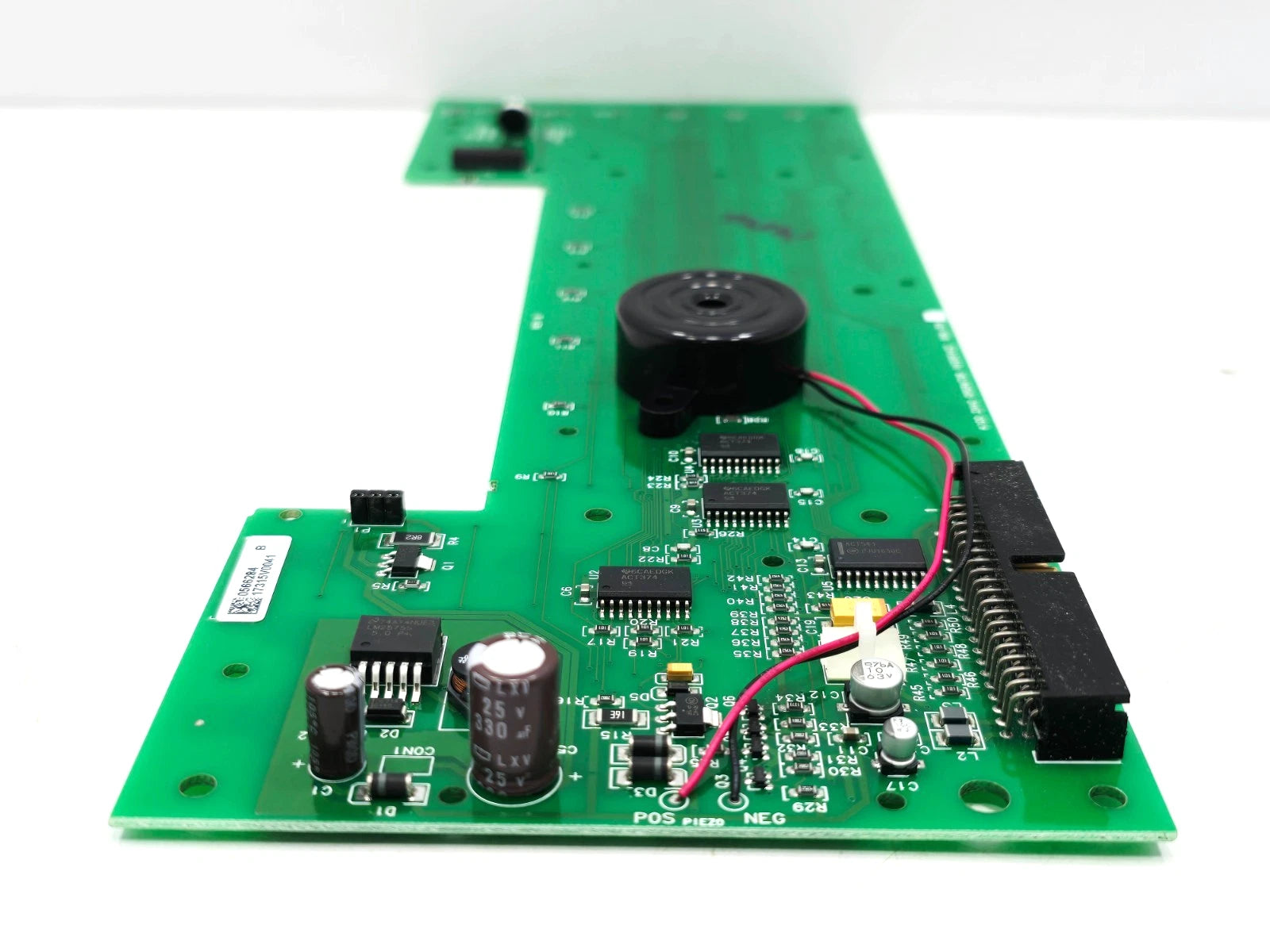

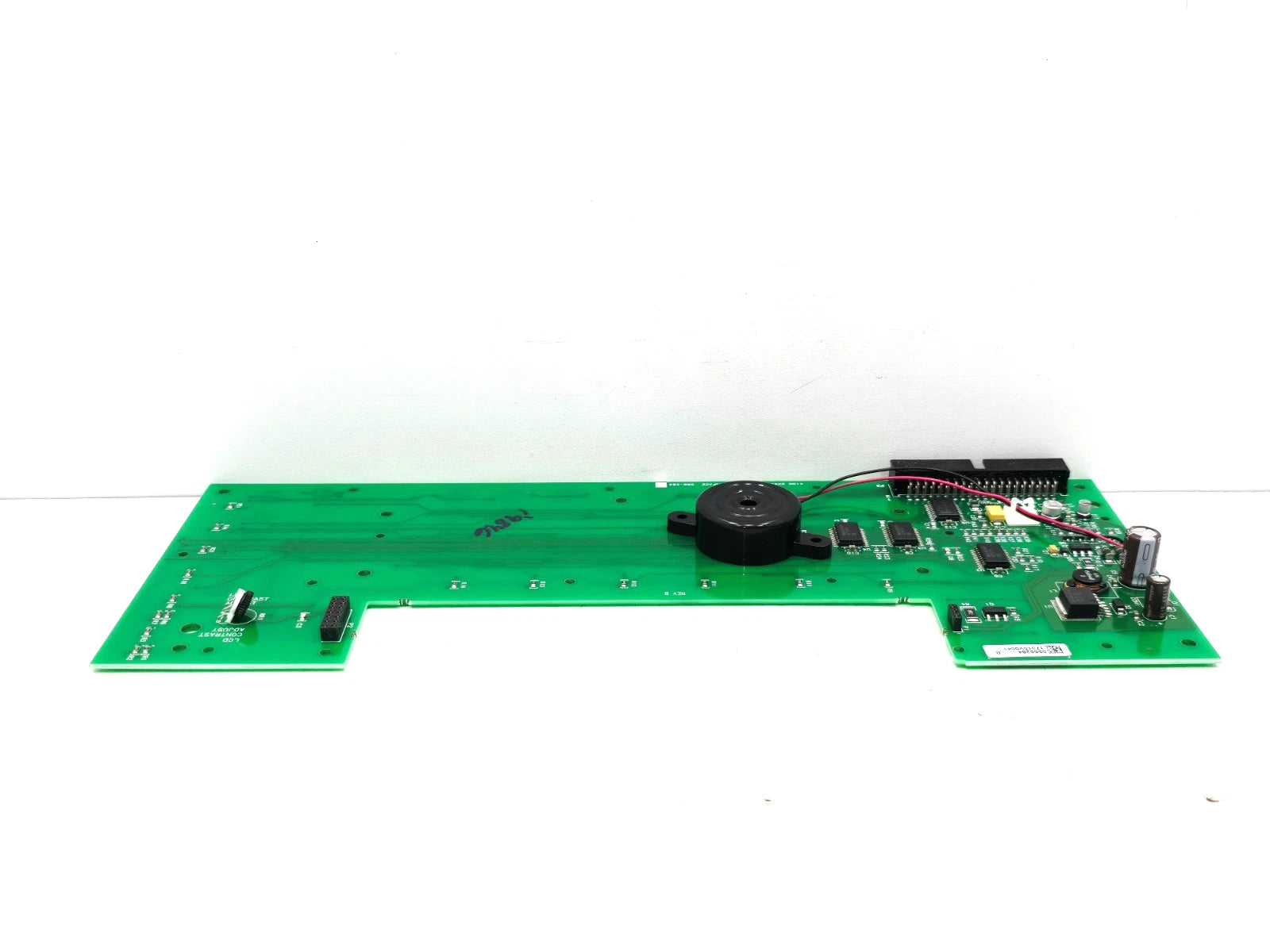

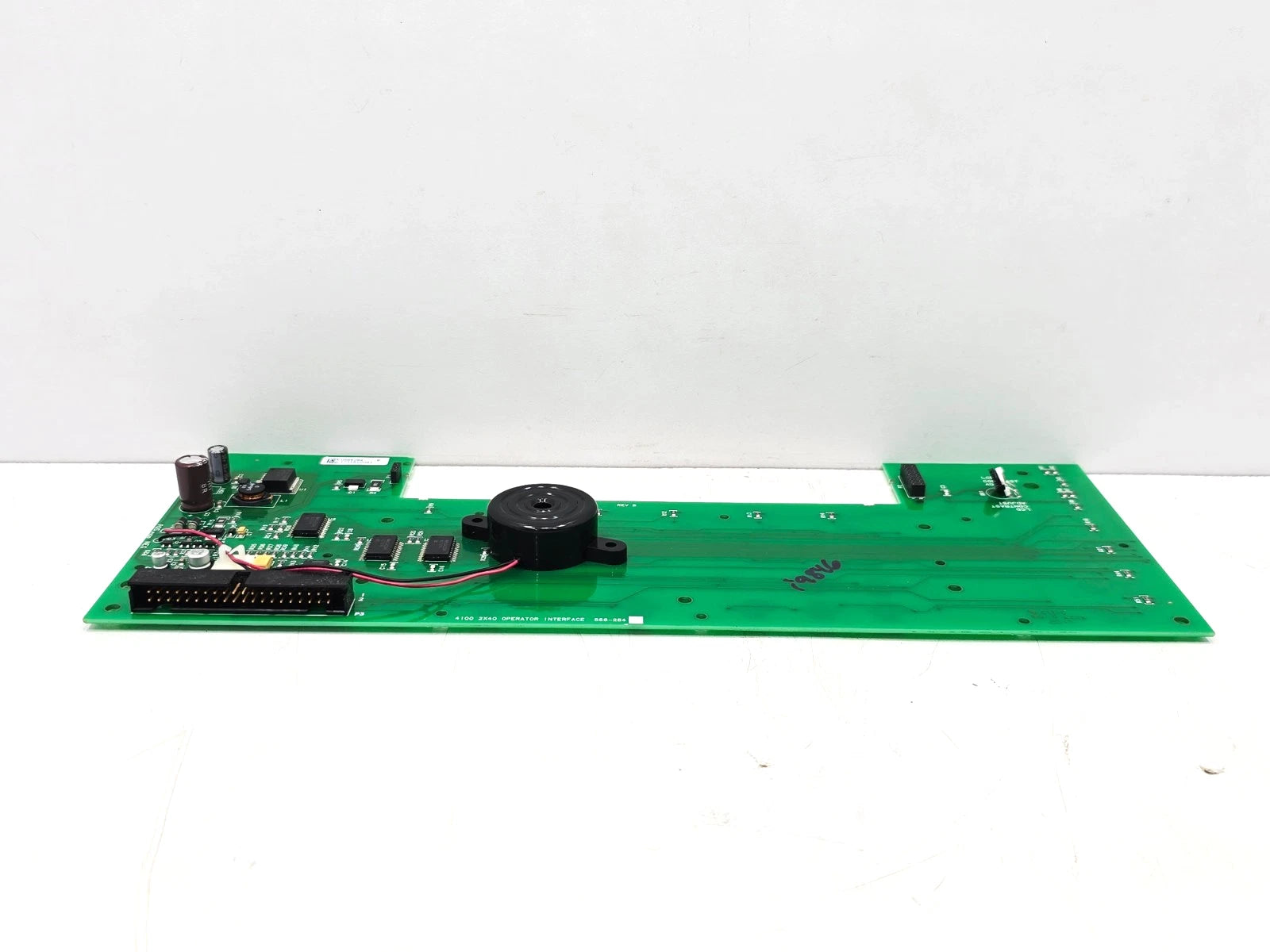

The Simplex 566-284 is an operator interface board designed for Simplex 4100U and 4100ES fire alarm control panels. It provides the primary user interface connection for system display, status monitoring, and operator control functions within the fire alarm panel assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Alarm Systems |
| Part Number | 566-284 |
| Subcategory | Operator Interface Board |
| Product Type | Main Operator Interface PCB |
| Series Compatibility | Simplex 4100U / 4100ES |
| System Application | Fire alarm control panel user interface |
| Function | Display and operator control interface |
| Board Type | Printed Circuit Board Assembly |
| Communication Function | Interface between processor and operator controls |
| Supported Functions | Alarm, trouble, supervisory, and system status access |
| Installation Location | Simplex 4100 series control panel assembly |
| Display Interface | Supports compatible Simplex operator display assemblies |
| Control Interface | Operator keypad and panel controls |
| Application Environment | Commercial, institutional, healthcare, and industrial facilities |
| Replacement Use | Fire alarm panel maintenance and repair |
| Dimensions | Approximately 10 x 8 x 2 in. |
| Weight | Approximately 1.0 lb (0.45 kg) |
Information About 566-284
The 566-284 is part of the Simplex 4100 series control panel electronics, serving as the main operator interface circuit board for fire alarm system interaction. The board supports communication between the control panel processor and the user interface components, including display and control inputs. It is designed for integration into Simplex 4100U and 4100ES systems to provide reliable access to system events, alarms, troubles, and supervisory conditions. The module is commonly used in commercial, institutional, healthcare, and industrial fire protection installations requiring dependable operator control and system management.
Key Features:
- Operator Interface Function: Provides the main interface between users and Simplex fire alarm control systems.
- 4100U / 4100ES Compatibility: Designed specifically for integration with Simplex 4100 series control panels.
- Display Communication Support: Enables system status information to be presented through compatible operator displays.
- Control Interface: Supports operator interaction with fire alarm panel functions and system commands.
- Main Panel Circuit Board: Functions as a central interface PCB within compatible control panel assemblies.
- Alarm System Monitoring: Supports access to alarm, trouble, supervisory, and system status information.
- Durable Construction: Designed for continuous operation in life safety system environments.
- Panel Integration: Installs directly within the Simplex control panel cabinet assembly.
- Replacement Compatibility: Suitable for maintenance and replacement of existing operator interface boards.
- Reliable Communication: Maintains communication between panel electronics and operator controls.
The 566-284 delivers the reliability and precision required for fire alarm operator interface control and system management applications.
