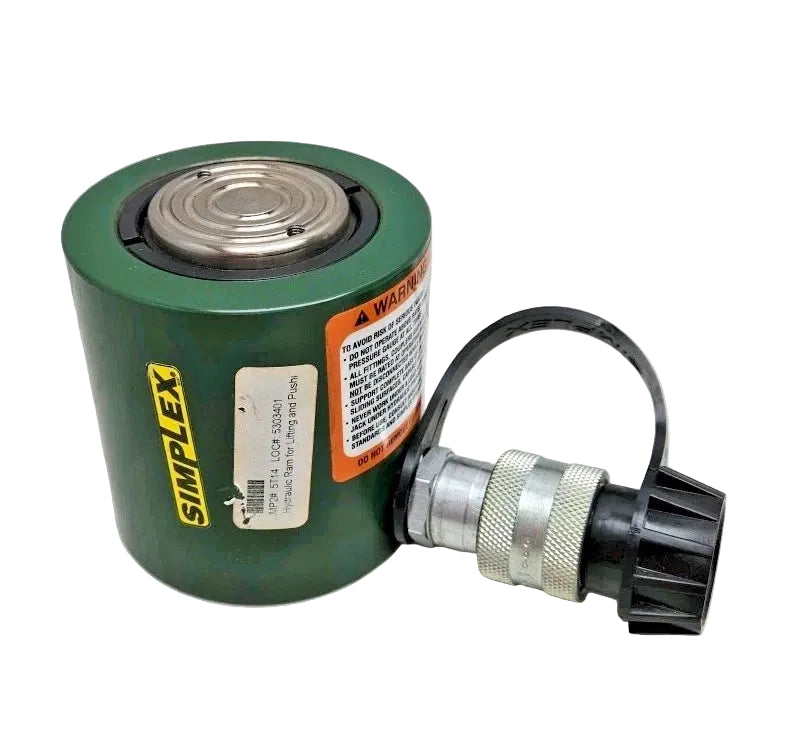

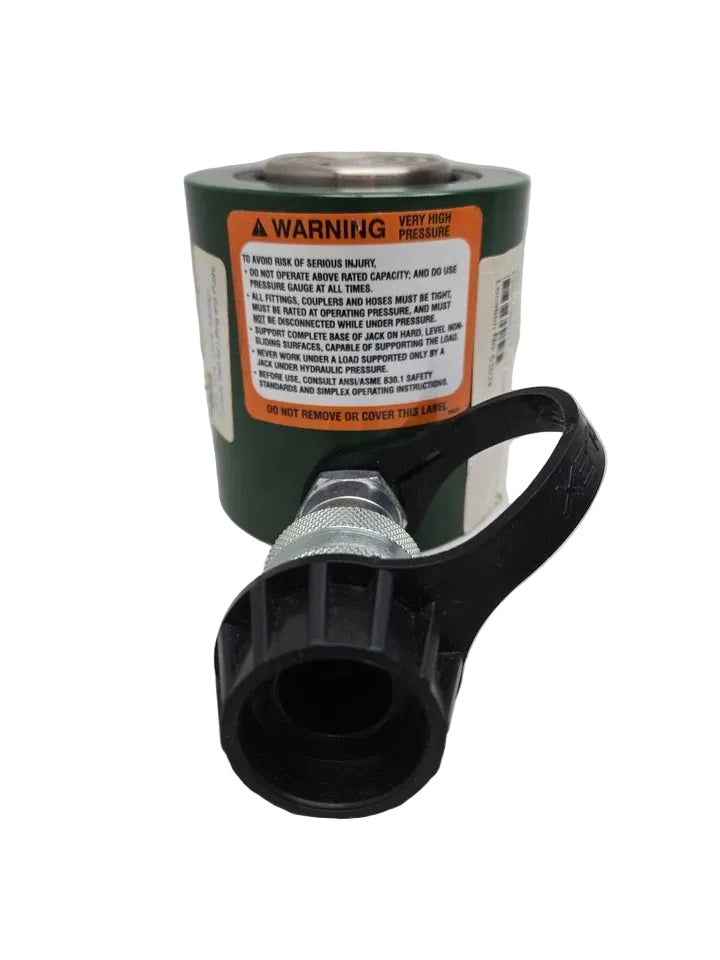

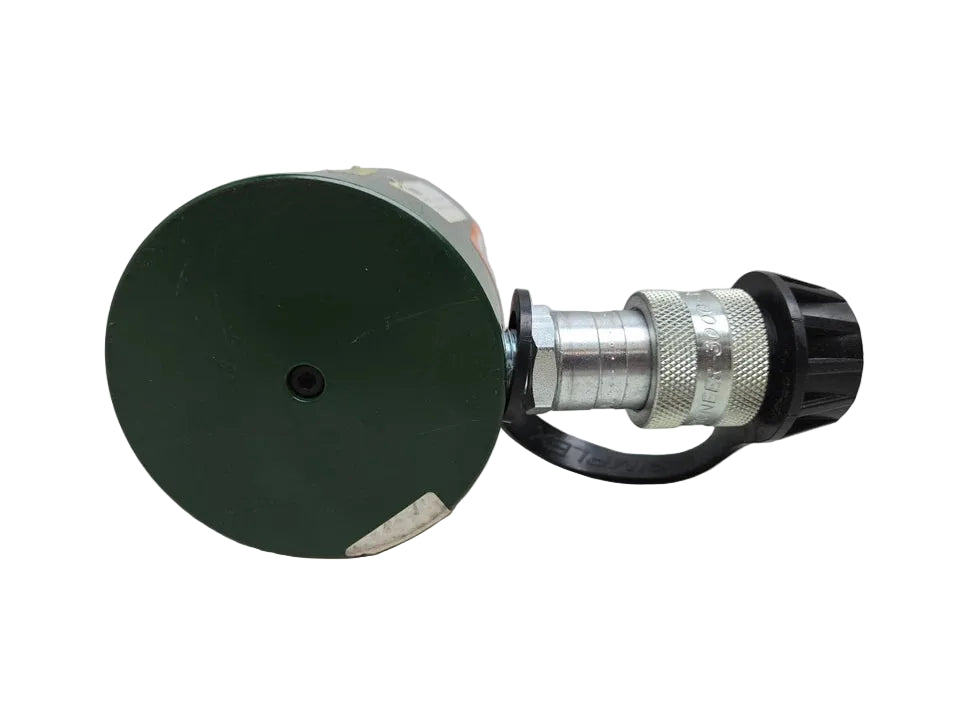

RLS201 | Simplex 20 Ton Low Profile Single Acting Hydraulic Cylinder 10,000 PSI
- Regular price
- $959.00
- Sale price
- $959.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RLS201
Description
The Simplex RLS201 is a low-profile, single-acting hydraulic cylinder rated for 20-ton capacity at 10,000 psi. Designed with a 1-3/4 inch stroke and compact retracted height, it provides high-force output in confined spaces. Its spring return mechanism ensures controlled piston retraction for efficient lifting, positioning, and maintenance applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Hydraulics |
| Part Number | RLS201 |
| Subcategory | Hydraulic Cylinders |
| Capacity | 20 Ton |
| Cylinder Type | Single Acting, Spring Return |
| Maximum Operating Pressure | 10,000 psi |
| Bore Diameter | 2.38 in |
| Stroke Length | 1-3/4 in |
| Retracted Height | 3.88 in |
| Rod Diameter | 2 in |
| Design | Low Profile |
| Application | Lifting & Positioning |
| Weight | 15 lb |
Information About RLS201
The RLS201 is a Simplex low-profile hydraulic cylinder engineered for high-force applications where vertical clearance is limited. It features a 2.38-inch bore and a 2-inch diameter rod to deliver consistent force distribution under heavy loads. The single-acting design applies hydraulic pressure for extension while an internal spring mechanism automatically retracts the piston after pressure release. Operating at a maximum pressure of 10,000 psi, the unit is suitable for industrial lifting, alignment, and equipment maintenance tasks.
Key Features:
- 20-Ton Capacity: Delivers substantial lifting force for industrial load-handling operations.
- Low-Profile Design: Compact 3.88 in retracted height for use in restricted spaces.
- Single-Acting Operation: Hydraulic advance with spring-assisted return for simplified control.
- 10,000 PSI Maximum Pressure: Supports high-force output in demanding applications.
- 2.38 in Bore Diameter: Optimized for efficient hydraulic force generation.
- 1-3/4 in Stroke Length: Provides controlled lifting range for precision positioning.
- 2 in Diameter Rod: Enhances strength and load stability during operation.
- Spring Return Mechanism: Automatically retracts the piston when pressure is released.
The RLS201 delivers the reliability and precision required for heavy-duty lifting, positioning, and maintenance operations in confined industrial environments.
